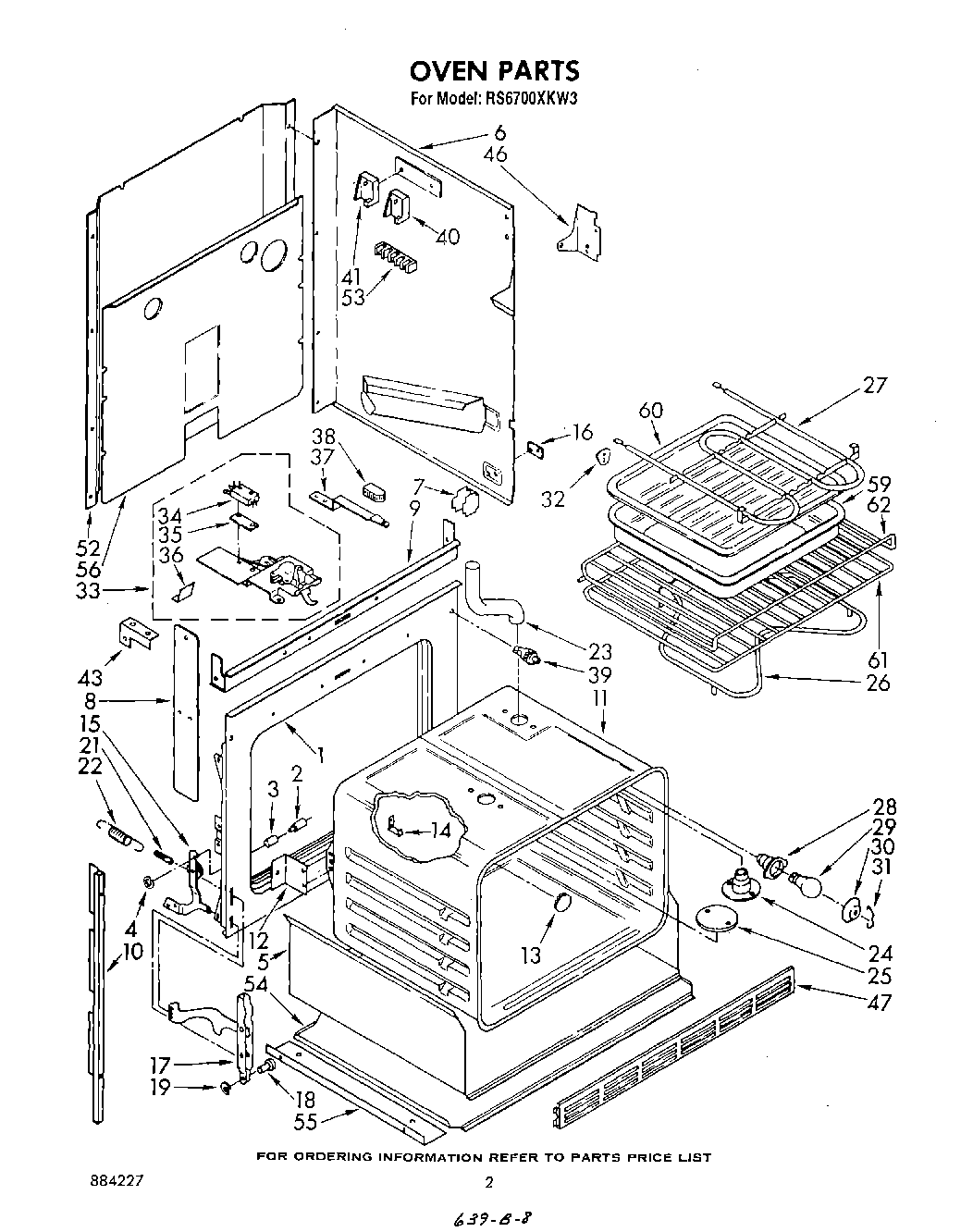

RS6700XKW3 02 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
	Screw, 10-32 x 5/8 (4)
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Screw, 6A x 1 1/4 (2)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light (Alt.)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 311982
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	WP313808 Whirlpool Screw
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Sw
41	WPL 314211
41	WPL 314215
43	Screw, 10A x 1/2 (2) (Black)
43	WPL 312320
46	WPL 310715
46	WPL 310714
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	WPL 310459
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	WP488729 Whirlpool Refrigerator Door Screw
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
