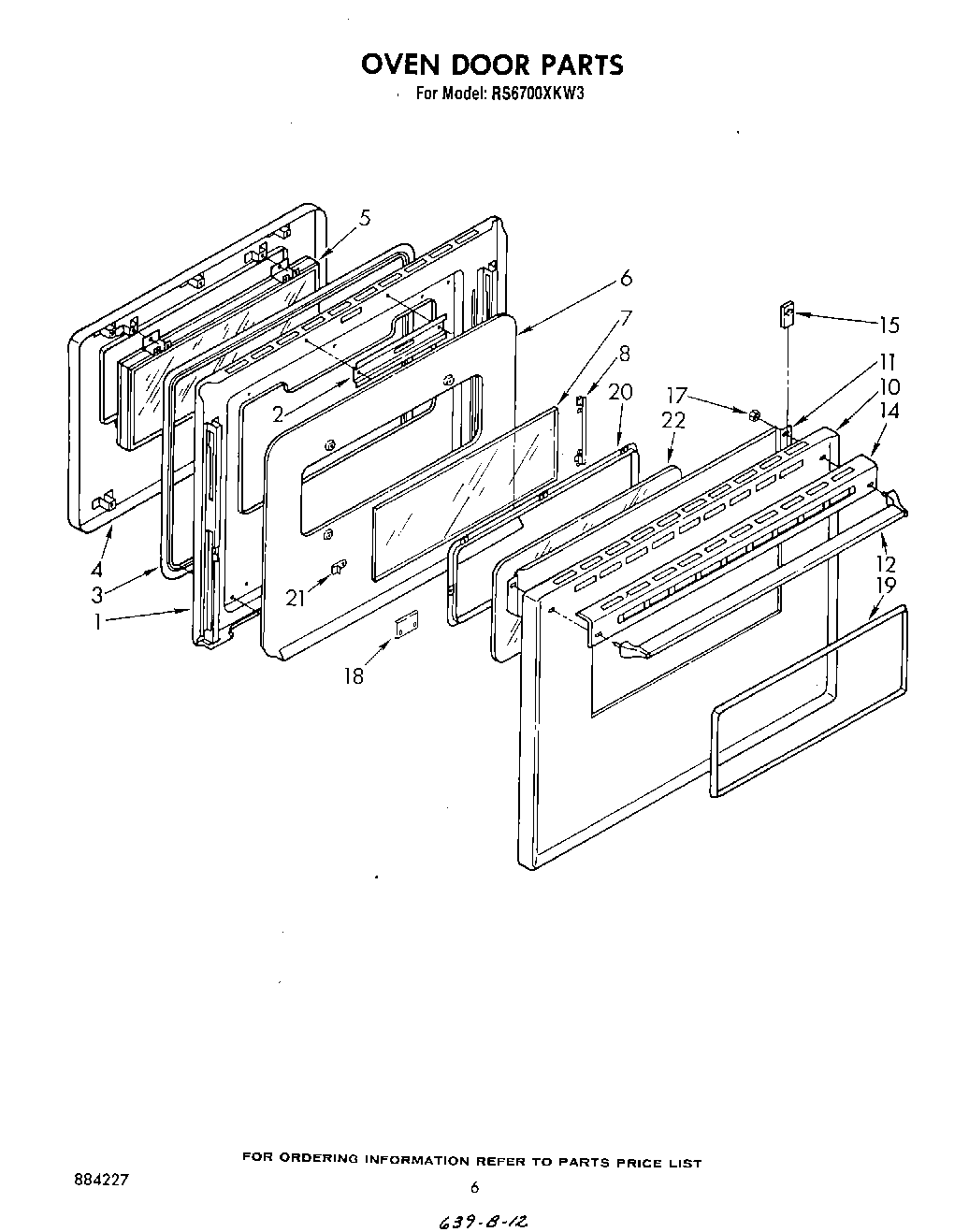

RS6700XKW3 05 – OVEN DOOR, LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313873
	WPL LIT313358
	WPL LIT884227
	WPL LIT311433
	WPL LIT312492
1	Liner, Door
2	Channel, Latch
2	Screw (2)
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
10	Screw, 10A x 1/2 (2) (Black)
10	Panel, Door (Almond)
10	Panel, Door (White)
10	Panel, Door (Harvest Gold)
10	Panel, Door (Toast)
10	Panel, Door (Platinum)
10	Screw
11	Baffle, Top
12	Handle, Oven Door
14	Trim, Panel
14	Clip
15	Spacer (Fish Paper)
17	WP308499 Whirlpool Nut
18	WP90296 Whirlpool Clip
18	Shield
19	Frame, Window
20	Retainer, Glass
21	Clip, Frame
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	Touch-Up Oven (1 Oz.)
22	WPW10208653 Whirlpool Insulation
22	242831 Whirlpool Oven Wire
22	Glass, Outer
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Grease
22	Wire (14 Ga. 150 c Brown)
22	Rotisserie Kit (RCK 81)
22	Wire (14 Ga. 150 c Blue)
22	console
22	Hinge-Lt. or Rt.
22	1
