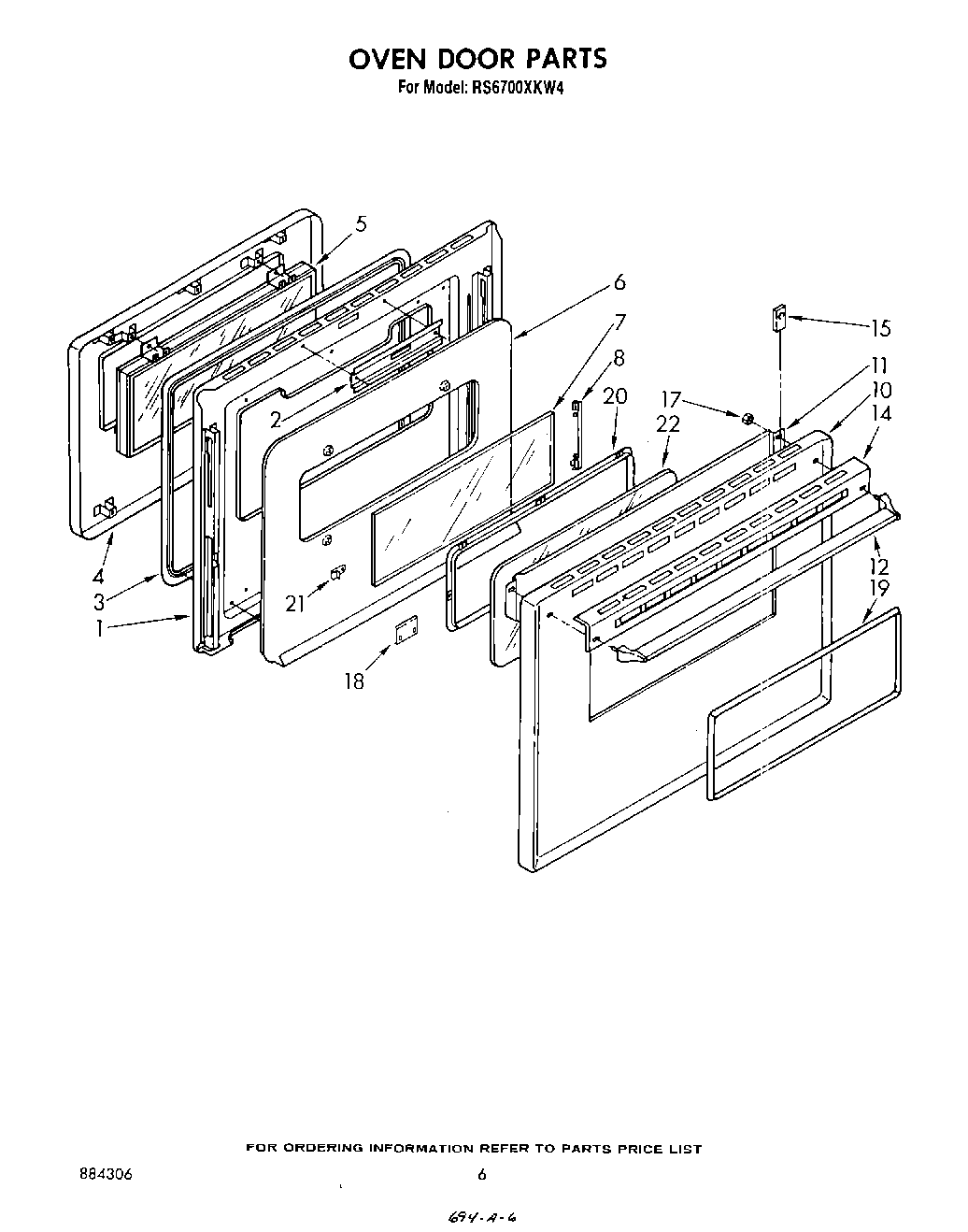

RS6700XKW4 05 – OVEN DOOR , LITERATURE AND OPTIONAL

RS6700XKW4 05 – OVEN DOOR , LITERATURE AND OPTIONAL

Written by

in

RS6700XKW4 05 – OVEN DOOR , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3147733
	WPL LIT313358
	WPL LIT884306
	WPL LIT312492
	WPL LIT311433
1	Liner, Door
2	Channel, Latch
2	Screw (2)
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
10	Screw, 10A x 1/2 (2) (Black)
10	Panel, Door (Harvest Gold)
10	Panel, Door (White)
10	Panel, Door (Almond)
10	Panel, Door (Toast)
10	Panel, Door (Platinum)
10	Screw
11	Baffle, Top
12	Handle, Door
14	Clip
14	Trim, Panel
15	Spacer (Fish Paper)
17	WP308499 Whirlpool Nut
18	Shield
18	WP90296 Whirlpool Clip
19	Frame, Window
20	Retainer, Glass
21	Clip, Frame
22	console
22	Wire (14 Ga. 150 c Yellow)
22	Wire (12 Ga. 150 c Black)
22	18 Ga. 80~c Rating (Red)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	Wire (14 Ga. 200 c Brown)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire, 25“ Roll (White 14 GA.)
22	Hinge-Lt. or Rt.
22	Wire (14 Ga. 150 c Blue)
22	Rotisserie Kit (RCK 81)
22	Wire (14 Ga. 150 c Brown)
22	Glass, Outer
22	Grease
22	242831 Whirlpool Oven Wire
22	Touch-Up Oven (1 Oz.)
22	1
