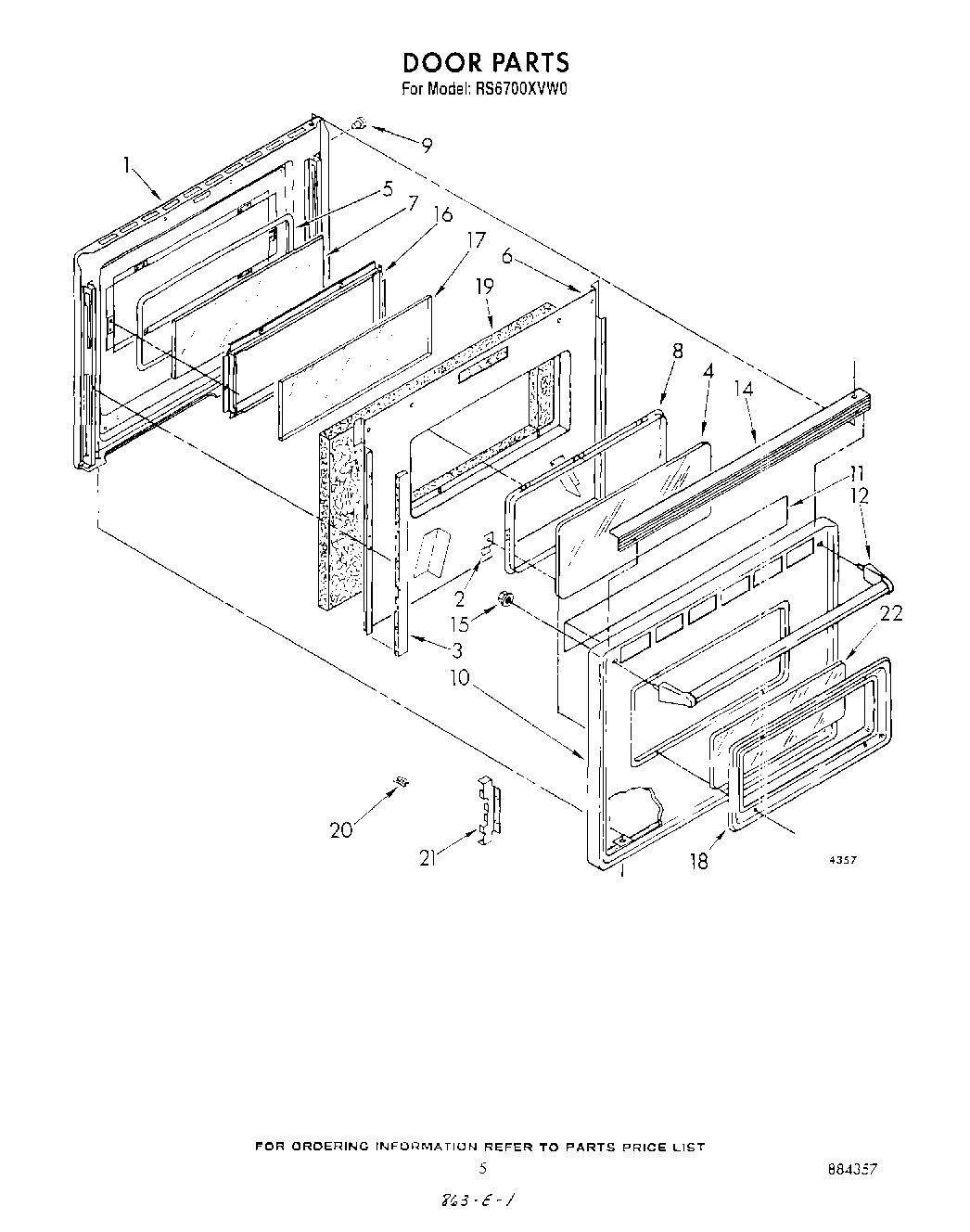

RS6700XVN0 04 – DOOR

Products

Position	Product
1	Back Splash (Screw (4) 10AB x 1/2“)
1	Liner, Door
2	Clip, Frame
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass
9	Bumper (4)
10	Panel, Door (Almond)
10	Panel, Door (White)
11	Foil, Door
12	Handle, Door
14	Top, Door
14	Screw, 10A x 1/2 (2) (Black)
15	WP308499 Whirlpool Nut
16	Screw
16	Frame, Inner
18	Window, Frame
19	Insulation, Door
20	Panel, Door (Fastener (2))
21	Retainer, Glass (2)
22	Hinge-Lt. or Rt.
22	Screw
22	Glass, Outer
