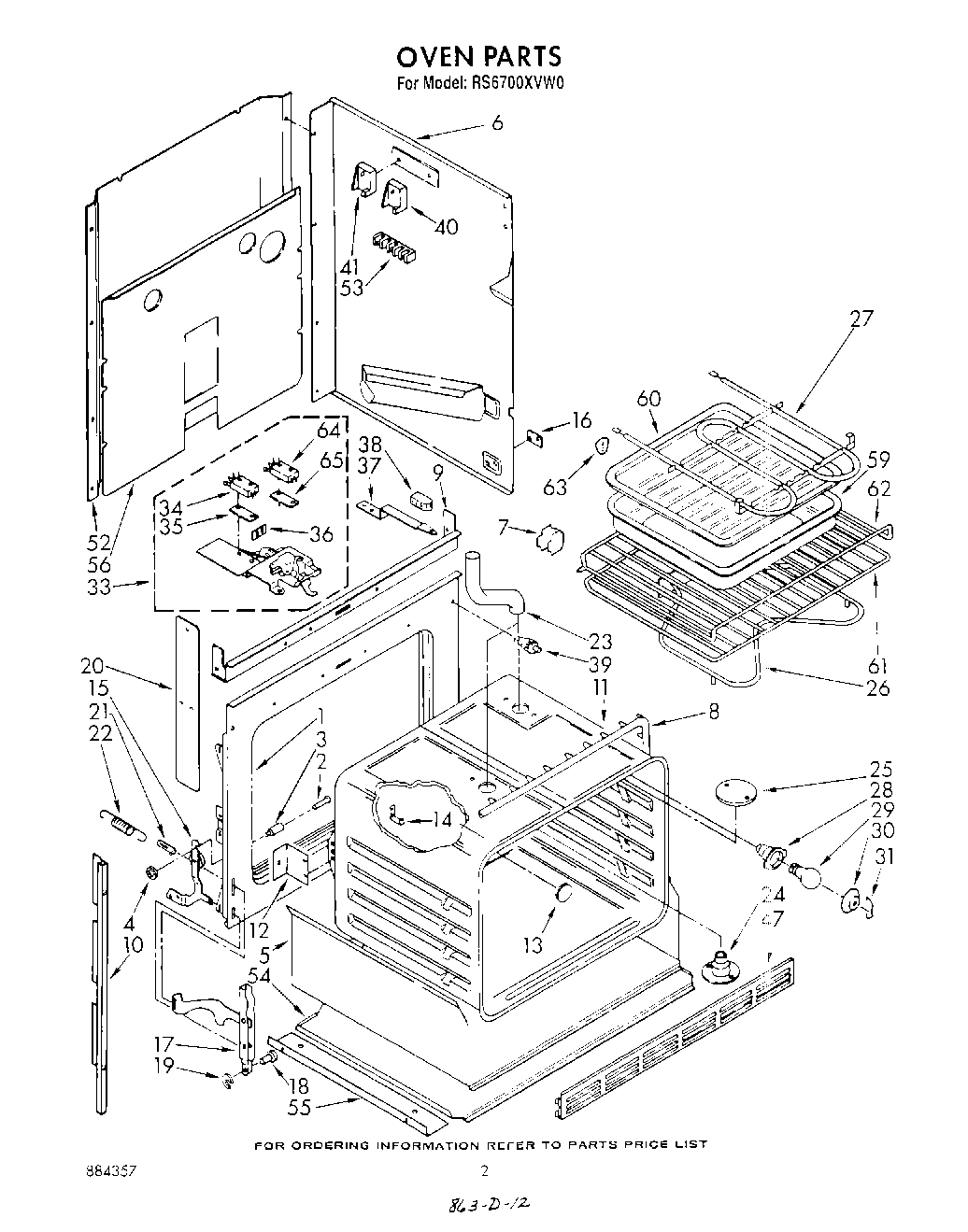

RS6700XVW0 02 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Seal, Door
9	Baffle, Top Insulation
10	WP313808 Whirlpool Screw
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30“ Pyro)
12	Screw, 10-32 x 5/8 (4)
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Baffle, Insulation
20	Screw (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Screw (2)
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 3149270
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Screw (3)
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Sw
41	WPL 314215
41	Switch, Bake
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Cover, Rear
52	WPL 609989
52	Screw
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	WPL 310459
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 312318
63	WPL 311982
64	Switch, Lock
65	WPL 310433
65	WPL 310434
65	WPL 3149328
65	WPL 3147864
