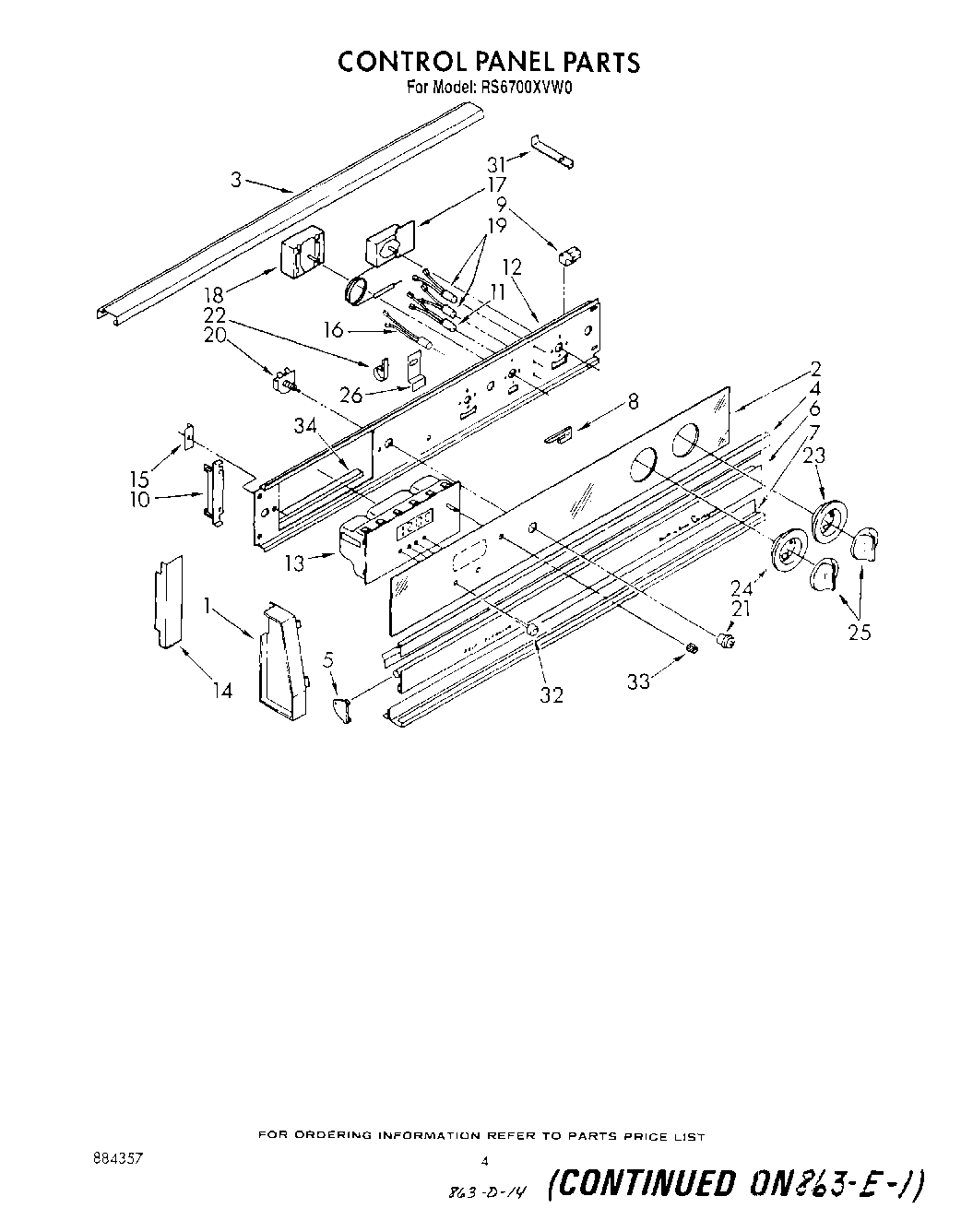

RS6700XVW0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Shield, Air
9	Retainer, Glass (4)
10	Bracket, Control (2)
12	Bracket, Control
13	Timer, Digital (Included No.14)
13	WPL 309080
14	Timer, Automatic (Palnut (Timer))
14	Trim, End Cap (Black)
15	Bracket, Timer
16	Light, Indicator Standard Clean
17	Thermostat, Oven
17	screw, 6-32 x 1/4 (2)
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
20	Switch, Oven Light
20	Lockwasher
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat
24	Screw,
24	WP311068 Whirlpool Dial Knob Black
25	WP3150371 Whirlpool Control Knob
26	Clip
26	Screw (2)
31	Support, Rail
32	WP965173 Whirlpool Dishwasher Screw
32	Spring (3)
33	WP3169181 Whirlpool Knob
34	Rail, Top (Seal, Backguard)
