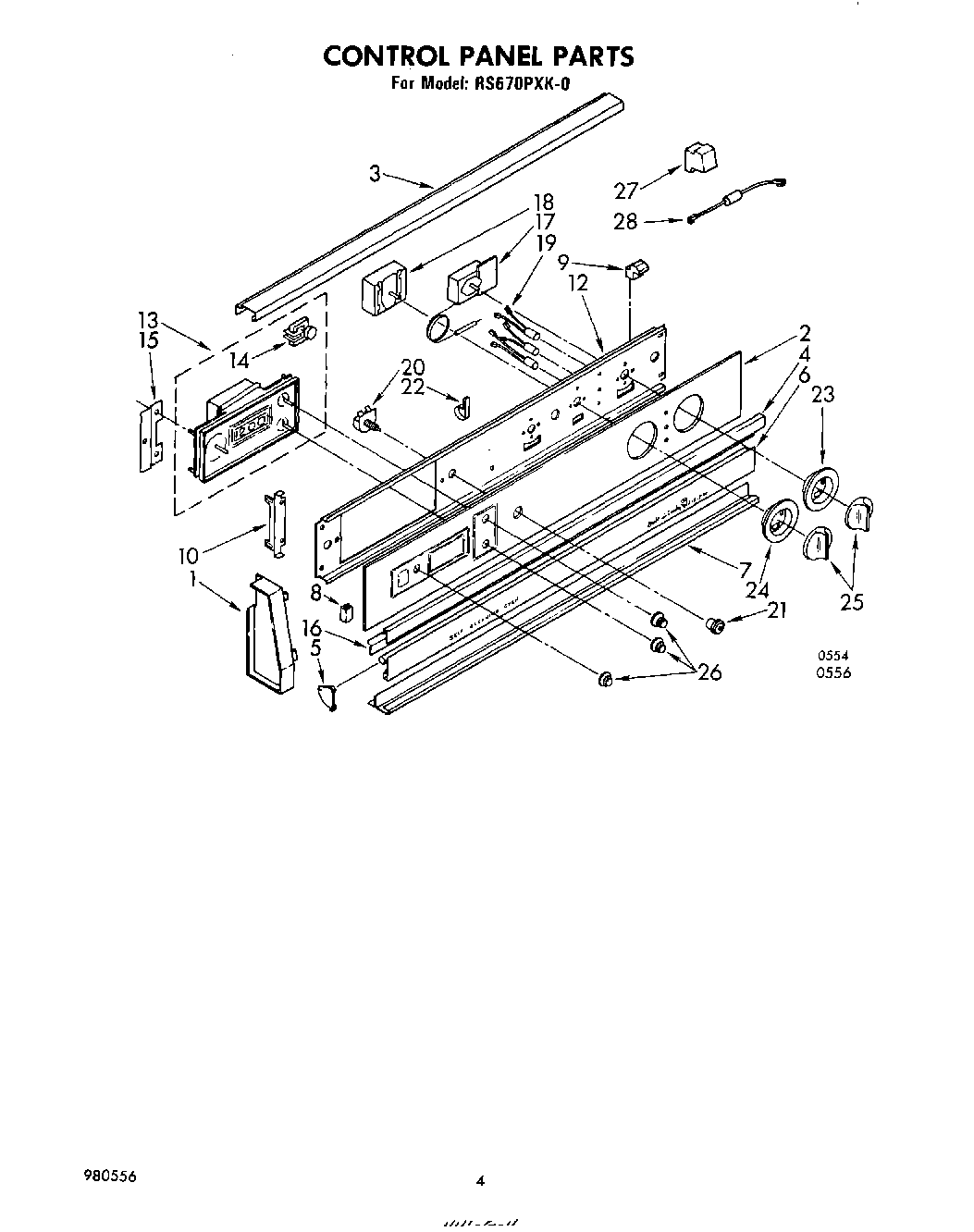

RS670PXK0 03 – CONTROL PANEL

Products

Position	Product
1	Screw (2)
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
10	Screw (2)
12	Bracket, Control
13	Timer, Automatic (Palnut (Timer))
13	Timer, Digital (Includes Illus. 29)
14	Motor, Timer
15	Bracket, Timer
16	Seal, Backguard
17	screw, 6-32 x 1/4 (2)
17	Thermostat, Oven Pyro
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
20	nut, 3/8 x 27
20	Switch, Oven Light
21	bezel, switch (2)
22	Screw
22	WP965173 Whirlpool Dishwasher Screw
22	Strain Relief (3)
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat
24	Screw,
24	WP311068 Whirlpool Dial Knob Black
25	WP3150371 Whirlpool Control Knob
26	knob, timer
27	WPL 311450
28	WPL 328891
28	WPL 98655
