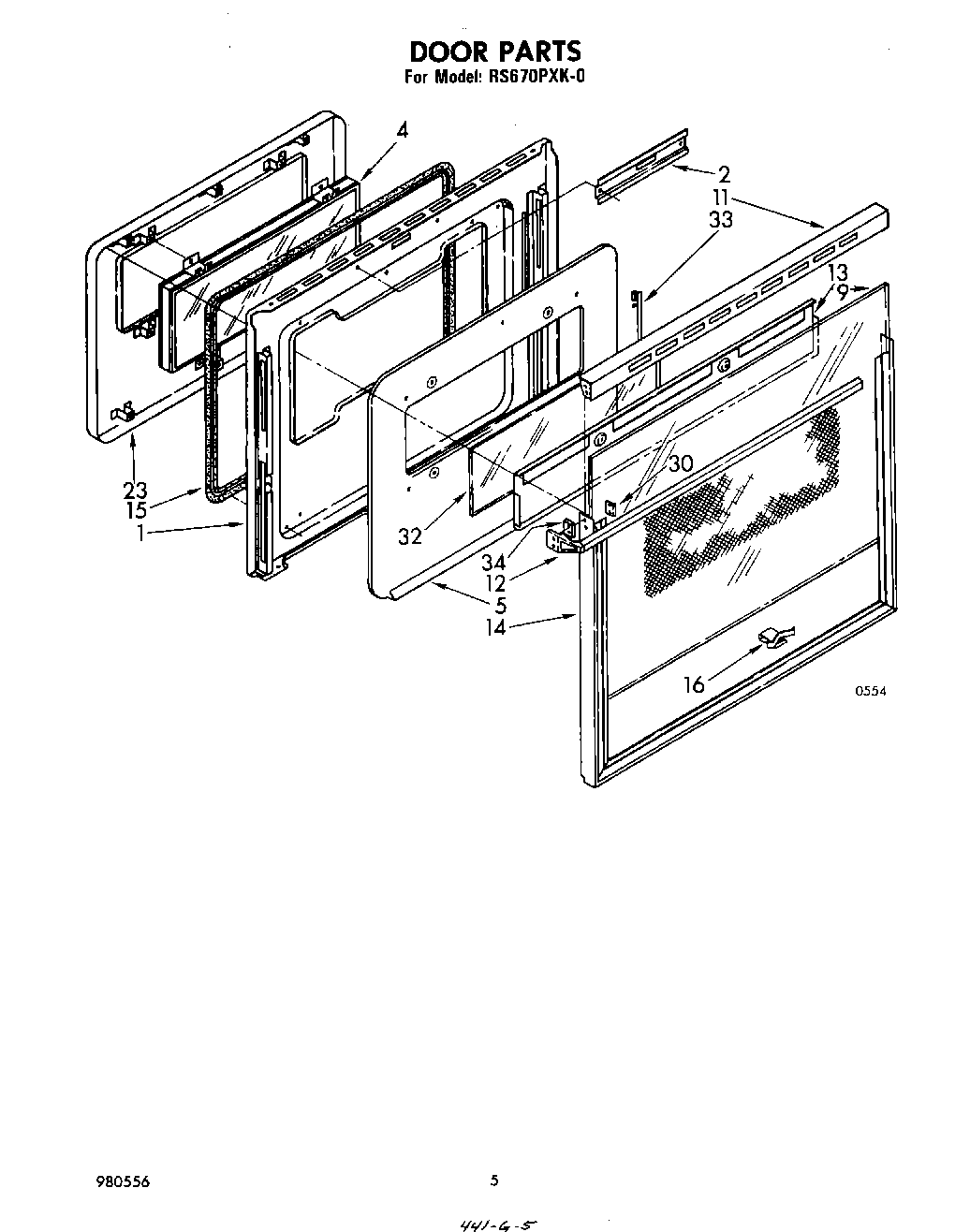

RS670PXK0 04 – DOOR

Products

Position	Product
1	Griddle Cover (Avocado 1633A1A, A2A)
1	panel, top (screw, 10a x 3/8 (3))
1	Clip (2)
1	Screw (3)
2	Channel, Latch
2	Screw (2)
4	Window Package
5	WP308685 Whirlpool Microwave Screw
5	Retainer, Insulation
9	Glass, Outer
11	Top, Door Frame
12	Handle, Oven Door
12	WP912618 Whirlpool Dishwasher Screw
13	WP90296 Whirlpool Clip
13	Baffle, Heat
14	Screw, 10A x 1/2 (2) (Black)
14	frame, door 30“
15	Seal, Fiberglass
16	clip, glass (10)
23	Panel, Inner
30	screw (3)
32	Glass (6.81“ x 18.31“)
33	Retainer, Glass (2)
34	Spacer, Door Handle (2)
