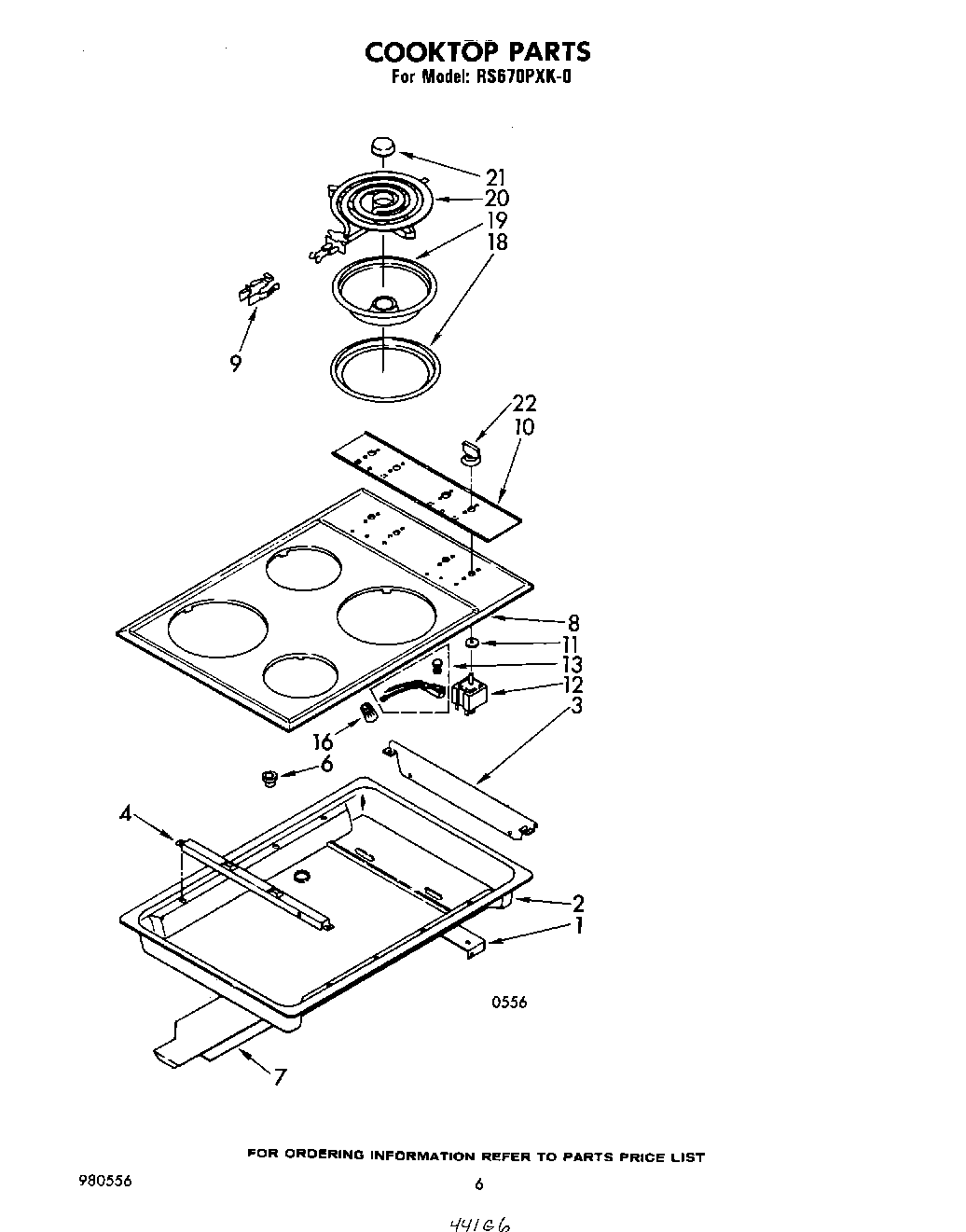

RS670PXK0 05 – COOKTOP , LITERATURE AND OPTIONAL

Products

Position	Product
1	Support, Box
2	Burner Box
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	WP308685 Whirlpool Microwave Screw
7	Cover, Top Rear
8	Cooktop, Chrome
8	Screw
8	Screw, 10-32 x 1/2
9	WP313808 Whirlpool Screw
9	BURNER RECEPTACLE KIT
10	Panel, Control
11	Seal, Switch Shaft (2)
12	Switch, Infinite (Screw, 8-32 x 5/16 (8))
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light (2) (Includes Lens)
16	Connector, Wire
18	W10858781 Whirlpool Trim Ring
18	W10854470 Whirlpool Trim Ring
19	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
20	WP660533 Whirlpool Oven 8" Surface Element
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	console
22	Wire, 25“ Roll (White 14 GA.)
22	WPL 311412
22	WPL 311951
22	WPL 980556
22	WPL 311433
22	WP330190 Whirlpool Knob
22	WPL 308500
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Touch-Up Oven (1 Oz.)
22	242831 Whirlpool Oven Wire
22	Wire (14 Ga. 150 c Blue)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (12 Ga. 150 c Black)
22	18 Ga. 80~c Rating (Red)
22	Wire (14 Ga. 200 c Brown)
22	1
22	Rotisserie Kit
22	Grease
22	WPW10208653 Whirlpool Insulation
