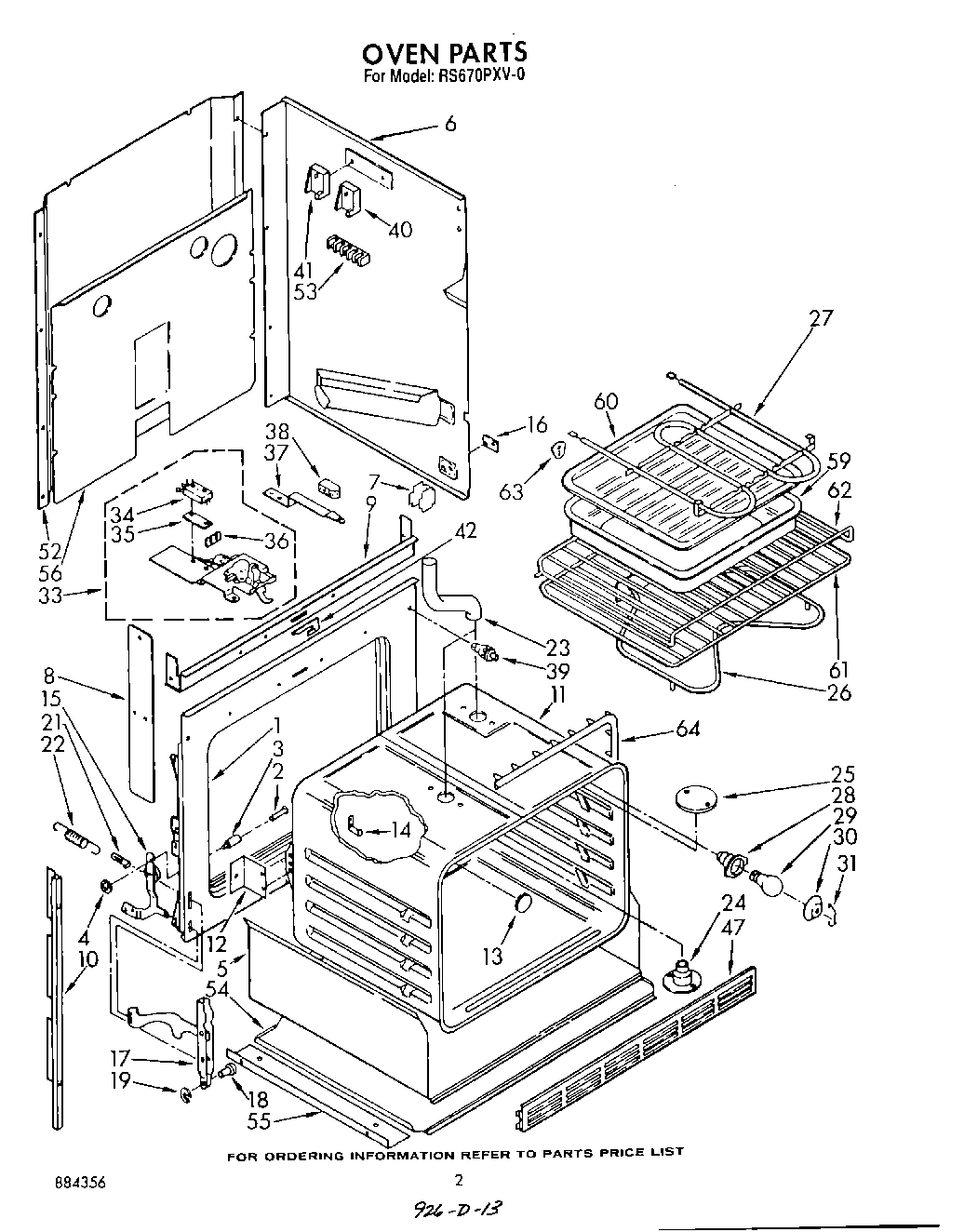

RS670PXV0 02 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
24	Screw (2)
26	ELMNT-BAKE
27	Screw, 10-32 x 5/8 (4)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light
28	Socket, Oven Light (Alt.)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Sw
41	Switch, Bake
41	WPL 314215
42	WPL 309080
42	Shield, Air
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	WPL 310662
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
54	WPL 310458
55	Angle, Support (2)
56	WP488729 Whirlpool Refrigerator Door Screw
56	WPL 310459
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 311982
64	WPW10208653 Whirlpool Insulation
64	FOIL, ALUMINUM OVEN (18“ X 25 )
64	Seal, Door
