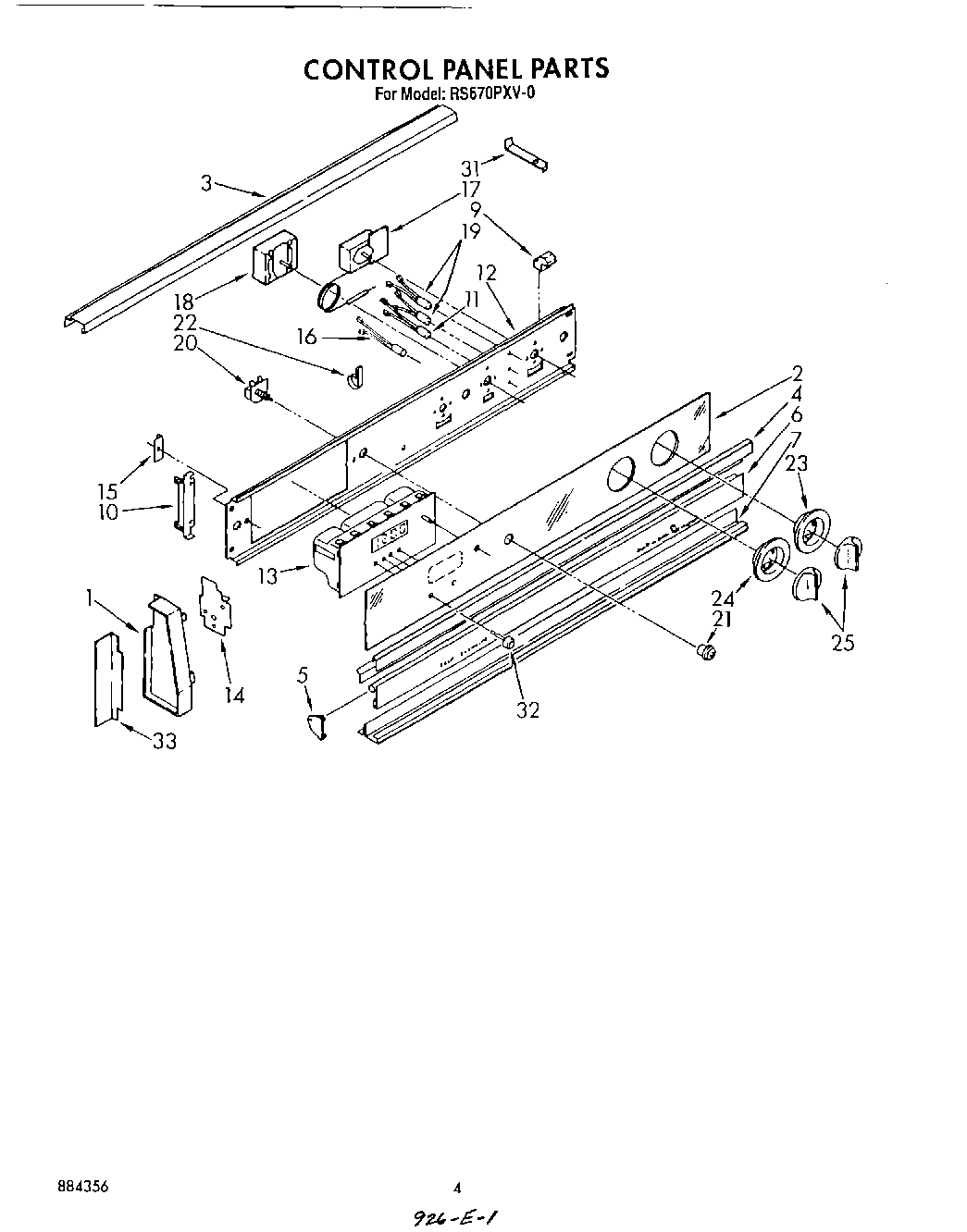

RS670PXV0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
9	Retainer, Glass (4)
10	Bracket, Control (2)
11	Indicator Light
12	Bracket, Control
13	WPL 309080
13	Timer, Automatic (Palnut (Timer))
13	Timer, Digital (Included No.14)
15	Bracket, Timer
16	Light, Indicator Standard Clean
17	Thermostat, Oven
17	screw, 6-32 x 1/4 (2)
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
20	WP965173 Whirlpool Dishwasher Screw
20	Switch, Oven Light
20	Lockwasher
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
22	Screw (2)
23	Escutcheon, Thermostat
24	Screw,
24	WP311068 Whirlpool Dial Knob Black
25	WP3150371 Whirlpool Control Knob
31	Support, Rail
32	Spring (3)
32	WP3169181 Whirlpool Knob
33	Trim, End Cap (Black)
