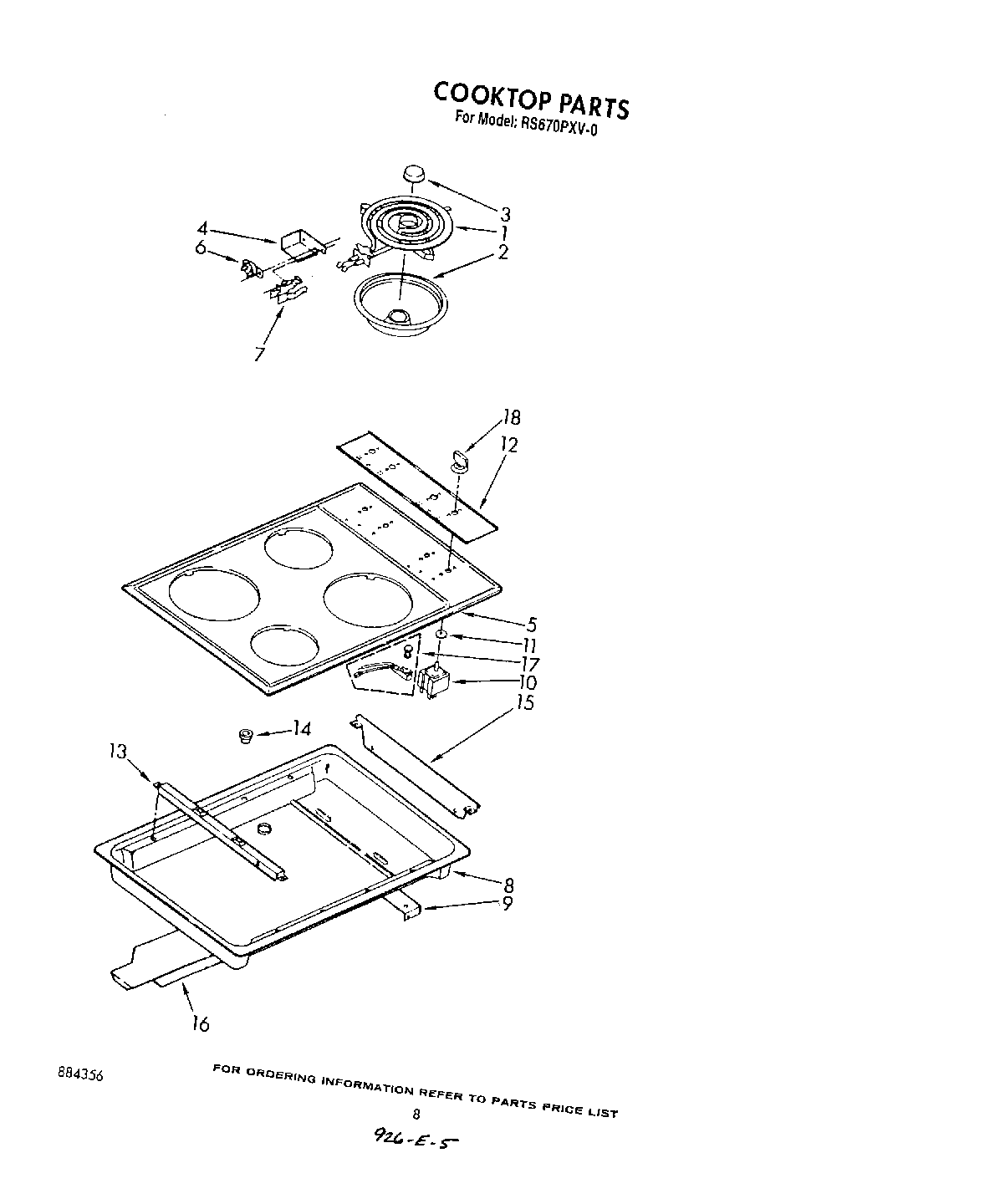

RS670PXV0 06 – COOK TOP

Products

Position	Product
1	WP660532 Whirlpool Oven Surface Element
1	WP660533 Whirlpool Oven 8" Surface Element
2	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	Medallion (4)
4	Bracket, Sensor
5	Cooktop, Chrome
5	814103 Whirlpool Clip
6	Thermostat
7	WP313808 Whirlpool Screw
7	BURNER RECEPTACLE KIT
9	Support, Box
10	W10900107 Whirlpool Oven Surface Element Switch
10	WP486579 Whirlpool Air Conditioner Screw
10	Switch, Infinite (8“ Unit (2))
11	Seal, Switch Shaft (2)
12	Panel, Control
13	Support, Cooktop
13	Screw, 10-32 x 1/2
14	WPL 258109
15	Burner Box
16	Cover, Top Rear
16	WP488729 Whirlpool Refrigerator Door Screw
17	Indicator Light
17	Lens
18	Knob, Control
