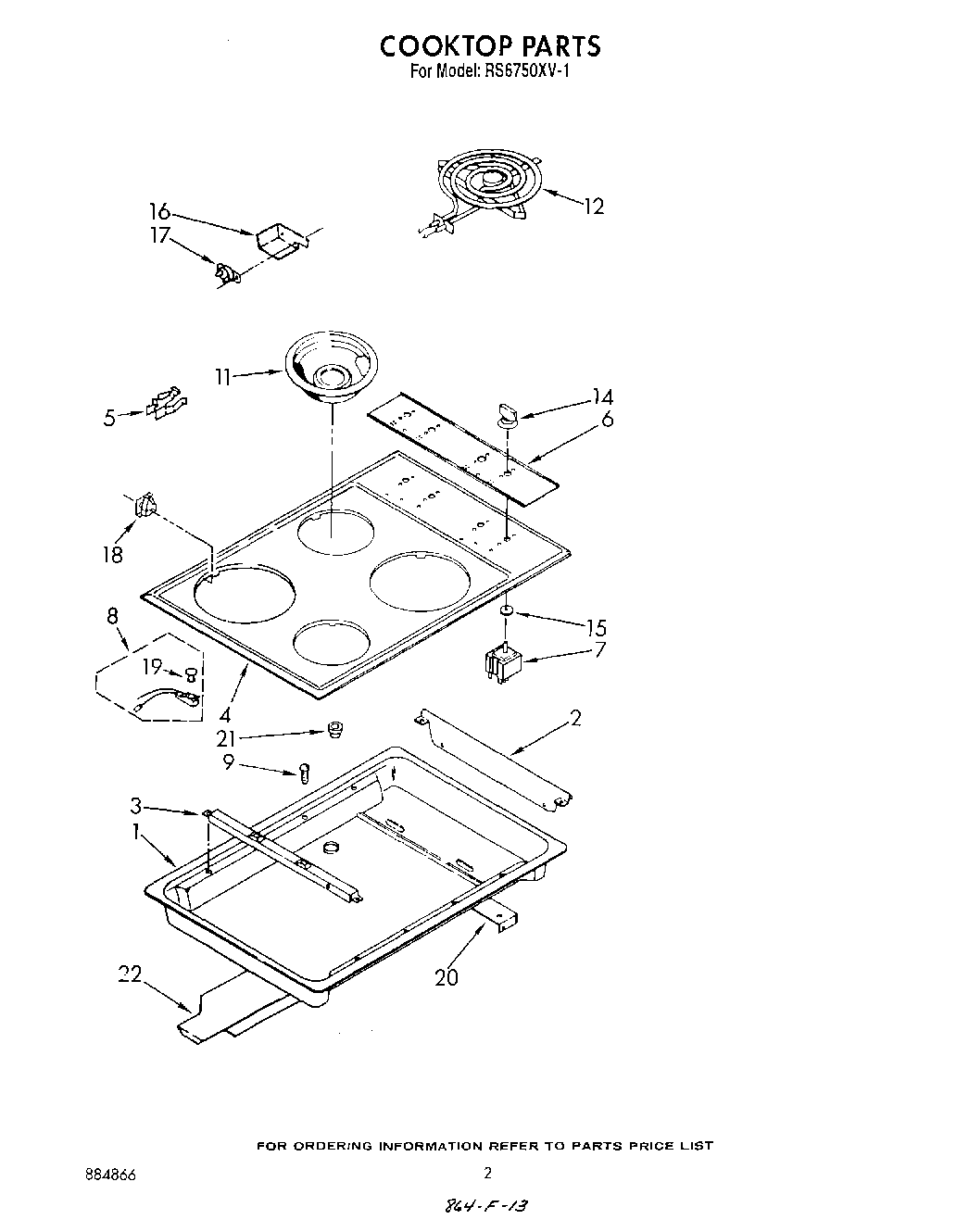

RS6750XV1 02 – COOKTOP

Products

PositionProduct
1Burner Box
2Shield, Switch
3Support, Cooktop
4Cooktop (White)
4Cooktop (Almond)
5BURNER RECEPTACLE KIT
6Panel, Control
7W10900107 Whirlpool Oven Surface Element Switch
8Indicator Light
9WPL 312318
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660533 Whirlpool Oven 8" Surface Element
12WP660532 Whirlpool Oven Surface Element
14Knob, Control
15Seal, Switch Shaft (2)
16Bracket, Sensor
17WP313808 Whirlpool Screw
17Thermostat
18WP487887 Whirlpool Refrigerator Screw
18814103 Whirlpool Clip
18Nut (4)
19Lens, Light
20Support, Box
21WPL 258109
22Cover, Top Rear
22WP488729 Whirlpool Refrigerator Door Screw
