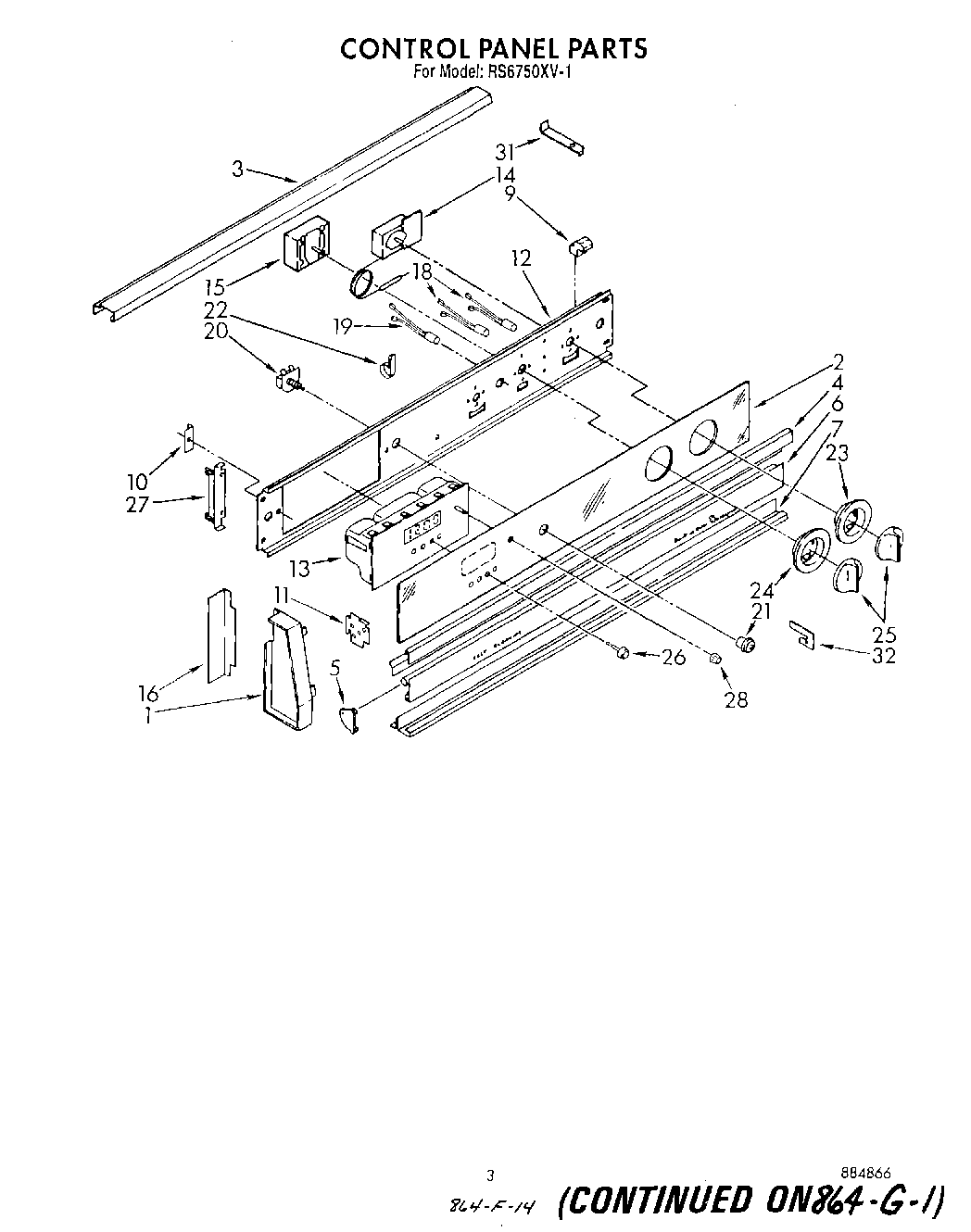

RS6750XV1 03 – CONTROL PANEL

RS6750XV1 03 – CONTROL PANEL

Written by

in

RS6750XV1 03 – CONTROL PANEL

Products

PositionProduct
1End Cap (R.H.)
1End Cap (L.H.)
1Screw, 10A x 1/2 (2) (Black)
2Glass, Panel
3Rail, Top
4Trim, Center (Black)
5End Trim, Vent (Right Side)
5End Trim, Vent (Left Side)
6Door, Vent
7Screw, 10-32 x 1/2
7Trim, Bottom
9Retainer, Glass (4)
10Bracket, Timer (2)
11Cover, Side (Right Hand)
11Cover, Side (Left Hand)
11Screw (2)
12Bracket, Control
13Timer, Digital (Includes Knobs)
14Thermostat, Oven
14screw, 6-32 x 1/4 (2)
15Selector Switch
15WP486579 Whirlpool Air Conditioner Screw
16Trim, End Cap (Black)
18Indicator Light (4)
19Light, Indicator Standard Clean
20Switch, Oven Light
20Lockwasher
21Bezel Switch (1)
22WP308605 Whirlpool Refrigerator Clamp
22Screw (2)
23Escutcheon, Thermostat
24Screw,
24WP311068 Whirlpool Dial Knob Black
25WP3150371 Whirlpool Control Knob
26WPL 313958
27Bracket, Control (2)
28Knob, Bit Generator (Black)
31Support, Rail
32Shield, Air
