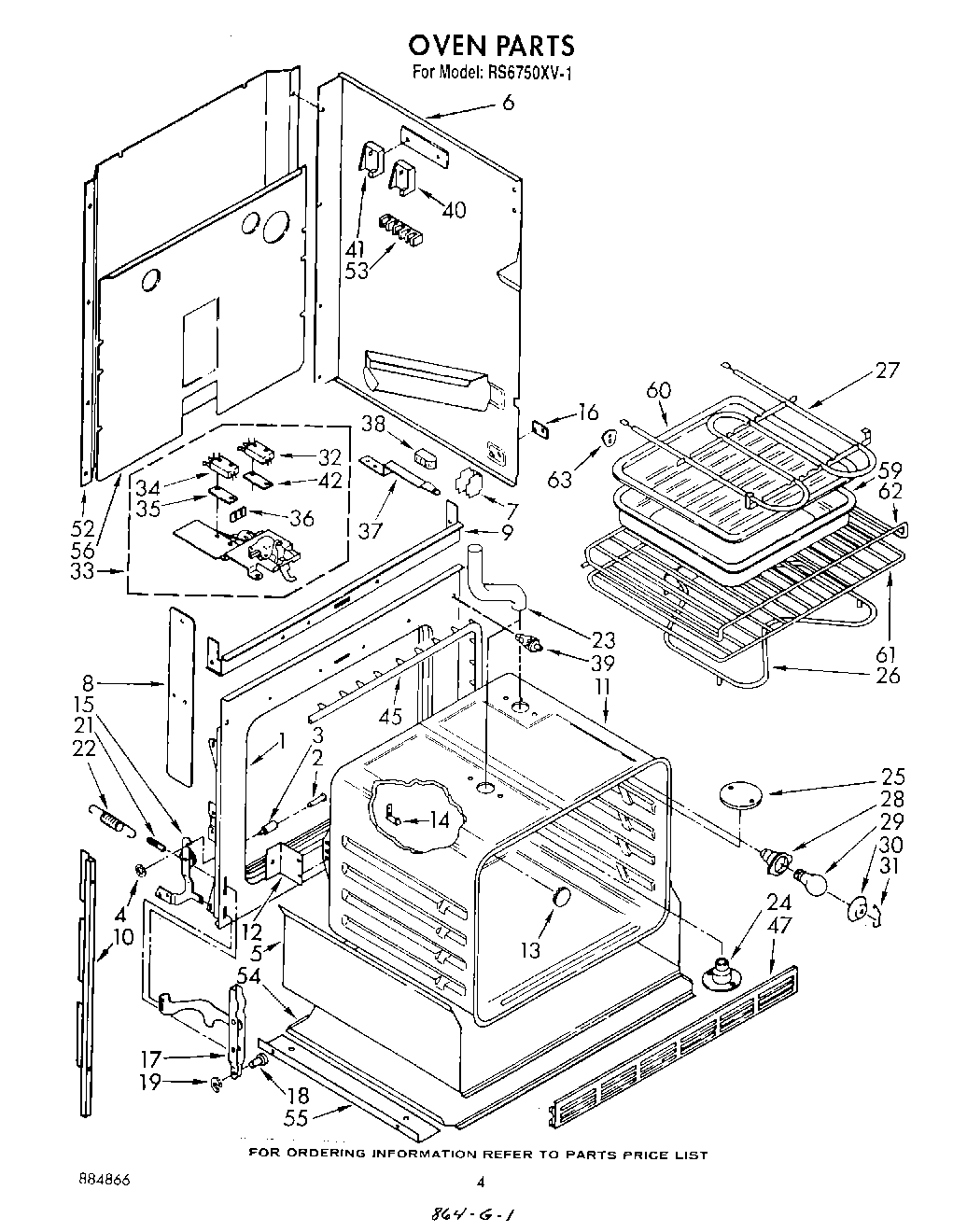

RS6750XV1 04 – OVEN
Written by
in
RS6750XV1 04 – OVEN
Products
Position
Product
WPL 310434
WPL LIT313358
WPL 310433
WPL 3149328
WPL LIT884866
WPL LIT3148556
WPL LIT3148601
WPL LIT3149928
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper (Left Side)
6
Side Wrapper (Right Side)
7
Support, Side Wrapper (4)
8
Baffle, Insulation
9
Baffle, Top Insulation
10
Side Trim (Left Side)
10
Side Trim (Right Side)
11
Oven 30“
12
Bracket, Oven Mounting (2)
13
Plug Button
14
98005642 Whirlpool Clip
15
Hinge Ear, L.H.
15
Hinge Ear, R.H.
16
WP308544 Whirlpool Screw
16
Plate, Side Panel (2)
17
Channel Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
WP308126 Whirlpool Door Spring
23
SCREW
23
Tube, Vent Extension
23
WP488729 Whirlpool Refrigerator Door Screw
24
Eliminator, Smoke
24
Screw (2)
25
WPL 310662
26
ELMNT-BAKE
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27
WPL 312318
28
Socket, Oven Light
29
RANGE ONLY 40W 120V APPL BULB
30
Cover, Light
31
Retainer, Light
32
Switch, Lock
33
Latch Assembly
33
Screw (3)
34
Screw
34
Safety Switch
35
Insulator, Switch
36
Screw
36
Shield, Latch
37
Screw
37
Latch, Handle
38
Screw, 80 x 5/16
38
Knob, Latch Handle
39
Switch, Door
40
Sw
41
WPL 314215
41
Switch, Bake
42
Screw (2)
42
WPL 3147864
45
Seal, Door
47
Grill, Bottom (Screw (3))
47
Grill, Bottom
52
Cover, Rear
53
Screw (10-12 x .875)
53
WP112432 Whirlpool Nut Assembly
53
WP8203546 Whirlpool Terminal Block
54
WPL 310458
55
Angle, Support (2)
56
Panel, Back (2)
60
4396923 Whirlpool Broil Pan Set Gray Porcelain
61
WPL 308173
62
WPL 308172
63
WPL 311982
←
