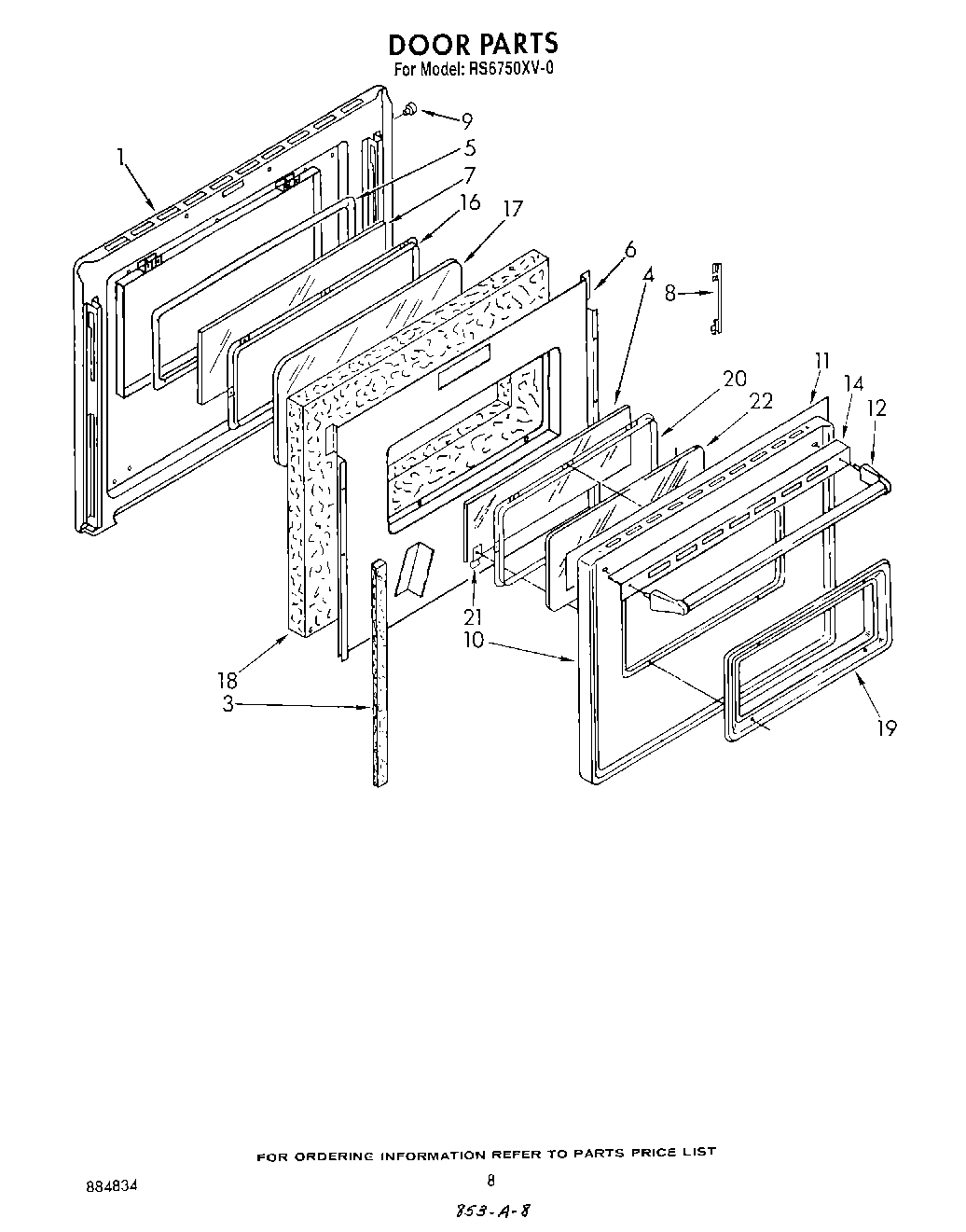

RS6750XVW0 06 – DOOR

Products

Position	Product
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Panel, Door (Fastener (2))
10	Panel, Door (Almond)
10	Panel, Door (White)
11	Foil, Door
12	WP308499 Whirlpool Nut
12	Handle, Door
14	Back Splash (Screw (4) 10AB x 1/2“)
14	Top, Door
16	Frame, Inner
16	Screw
18	Insulation, Door
19	Window, Frame
19	Screw
20	Retainer, Glass
21	Clip, Frame
22	Hinge-Lt. or Rt.
22	Glass, Outer
