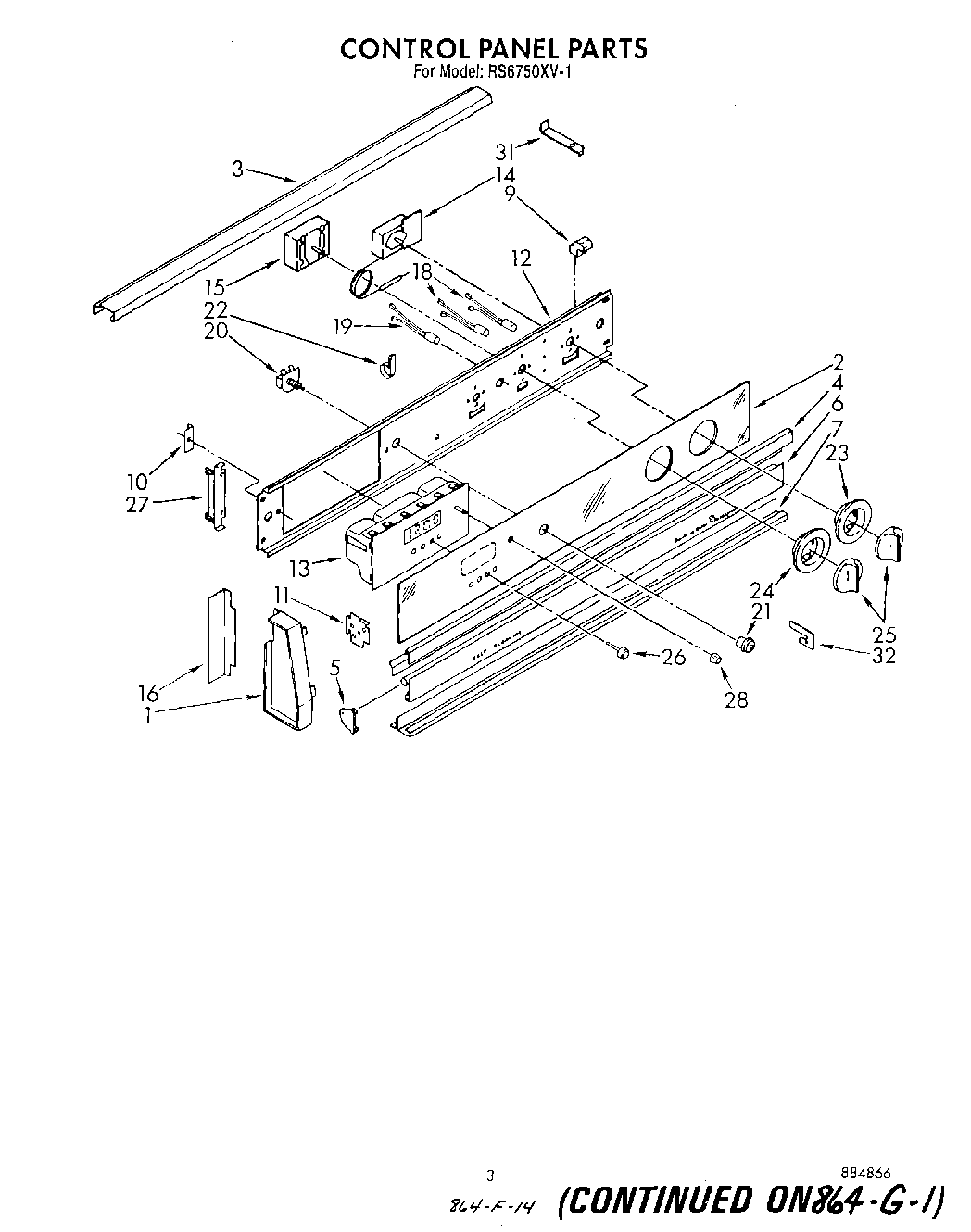

RS6750XVW1 03 – CONTROL PANELadmin2025-04-26T10:59:39+00:00RS6750XVW1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap (R.H.) |
| 1 | End Cap (L.H.) |
| 1 | Screw, 10A x 1/2 (2) (Black) |
| 2 | Glass, Panel |
| 3 | Rail, Top |
| 4 | Trim, Center (Black) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent |
| 7 | Screw, 10-32 x 1/2 |
| 7 | Trim, Bottom |
| 9 | Retainer, Glass (4) |
| 10 | Bracket, Timer (2) |
| 11 | Cover, Side (Right Hand) |
| 11 | Cover, Side (Left Hand) |
| 11 | Screw (2) |
| 12 | Bracket, Control |
| 13 | Timer, Digital (Includes Knobs) |
| 14 | Thermostat, Oven |
| 14 | screw, 6-32 x 1/4 (2) |
| 15 | Selector Switch |
| 15 | WP486579 Whirlpool Air Conditioner Screw |
| 16 | Trim, End Cap (Black) |
| 18 | Indicator Light (4) |
| 19 | Light, Indicator Standard Clean |
| 20 | Switch, Oven Light |
| 20 | Lockwasher |
| 21 | Bezel Switch (1) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 22 | Screw (2) |
| 23 | Escutcheon, Thermostat |
| 24 | Screw, |
| 24 | WP311068 Whirlpool Dial Knob Black |
| 25 | WP3150371 Whirlpool Control Knob |
| 26 | WPL 313958 |
| 27 | Bracket, Control (2) |
| 28 | Knob, Bit Generator (Black) |
| 31 | Support, Rail |
| 32 | Shield, Air |
