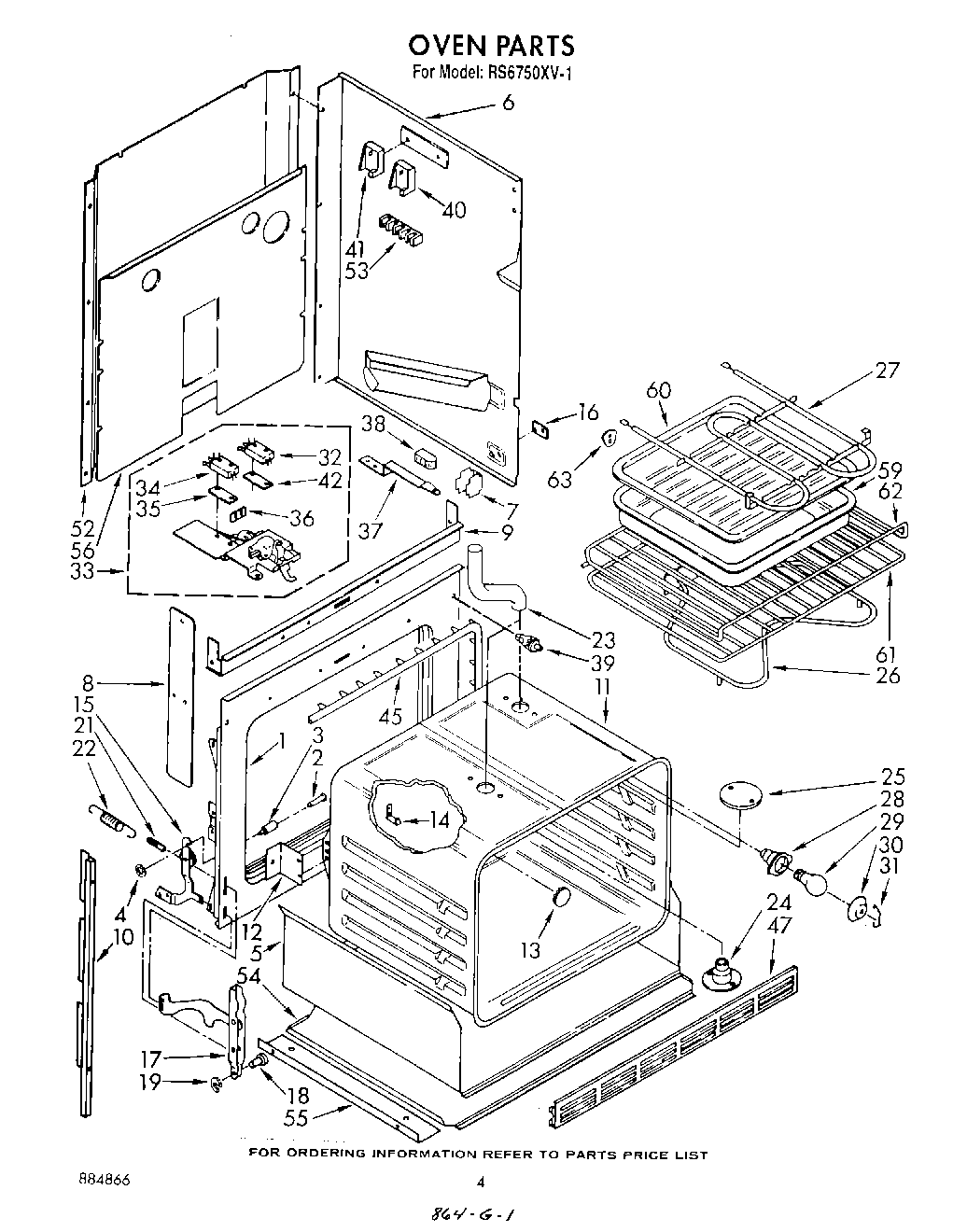

RS6750XVW1 04 – OVEN

Products

Position	Product
	WPL 310434
	WPL LIT313358
	WPL 310433
	WPL 3149328
	WPL LIT884866
	WPL LIT3148556
	WPL LIT3148601
	WPL LIT3149928
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
23	WP488729 Whirlpool Refrigerator Door Screw
24	Eliminator, Smoke
24	Screw (2)
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	WPL 312318
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	Switch, Lock
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	Sw
41	WPL 314215
41	Switch, Bake
42	Screw (2)
42	WPL 3147864
45	Seal, Door
47	Grill, Bottom (Screw (3))
47	Grill, Bottom
52	Cover, Rear
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	Panel, Back (2)
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 311982
