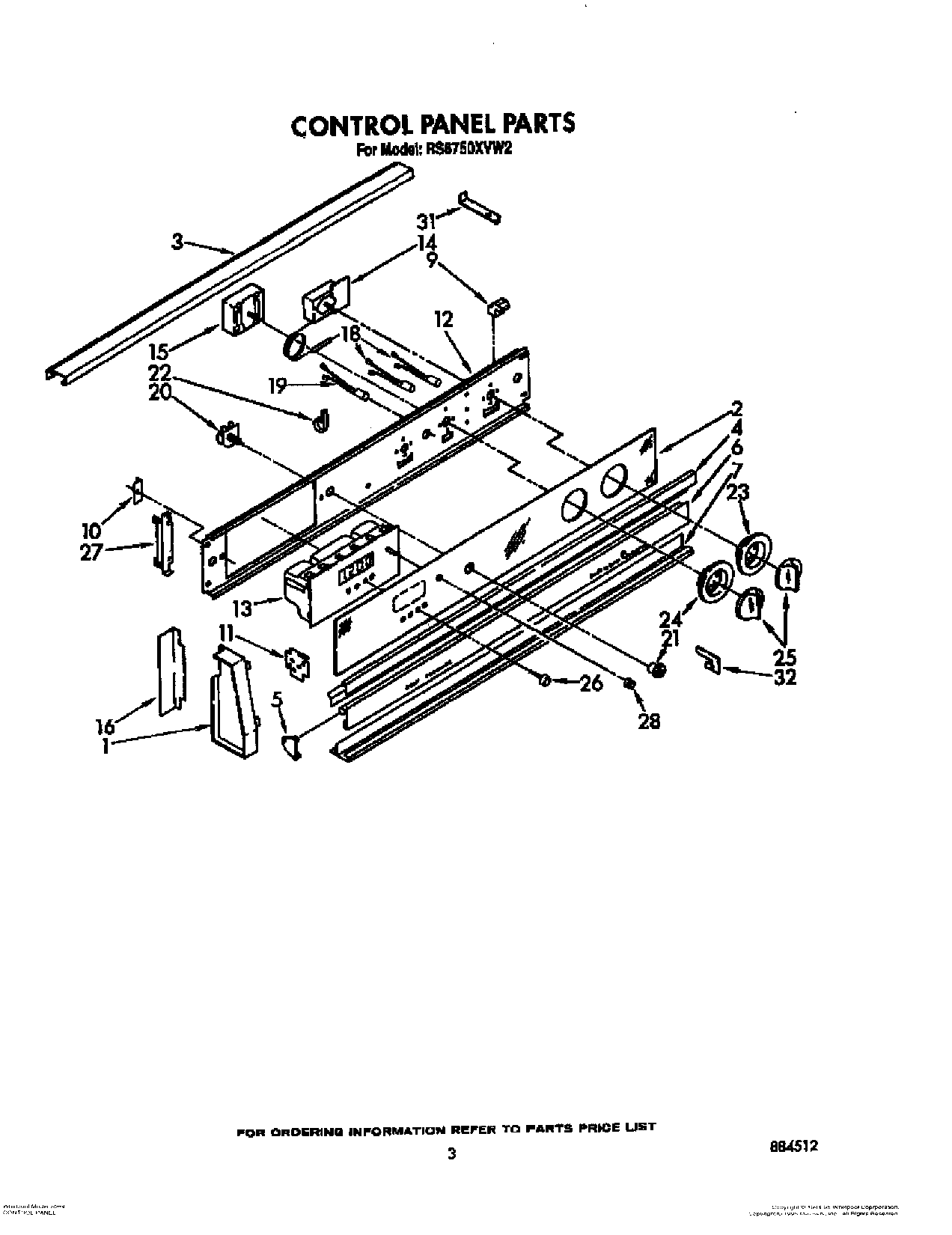

RS6750XVW2 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
1	Screw, 10A x 1/2 (2) (Black)
2	Glass, Panel
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
9	Retainer, Glass (4)
10	Bracket, Timer (2)
11	Cover, Side (Right Hand)
11	Cover, Side (Left Hand)
11	Screw (2)
12	Bracket, Control
13	Timer, Digital (Includes Knobs)
14	Thermostat, Oven
14	screw, 6-32 x 1/4 (2)
15	Selector Switch
15	WP486579 Whirlpool Air Conditioner Screw
16	Trim, End Cap (Black)
18	Indicator Light (4)
19	Light, Indicator Standard Clean
20	Switch, Oven Light
20	Lockwasher
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
22	Screw (2)
23	Escutcheon, Thermostat
24	Screw,
24	WP311068 Whirlpool Dial Knob Black
25	WP3150371 Whirlpool Control Knob
26	WPL 313958
27	Bracket, Control (2)
28	Knob, Bit Generator (Black)
31	Support, Rail
32	Shield, Air
