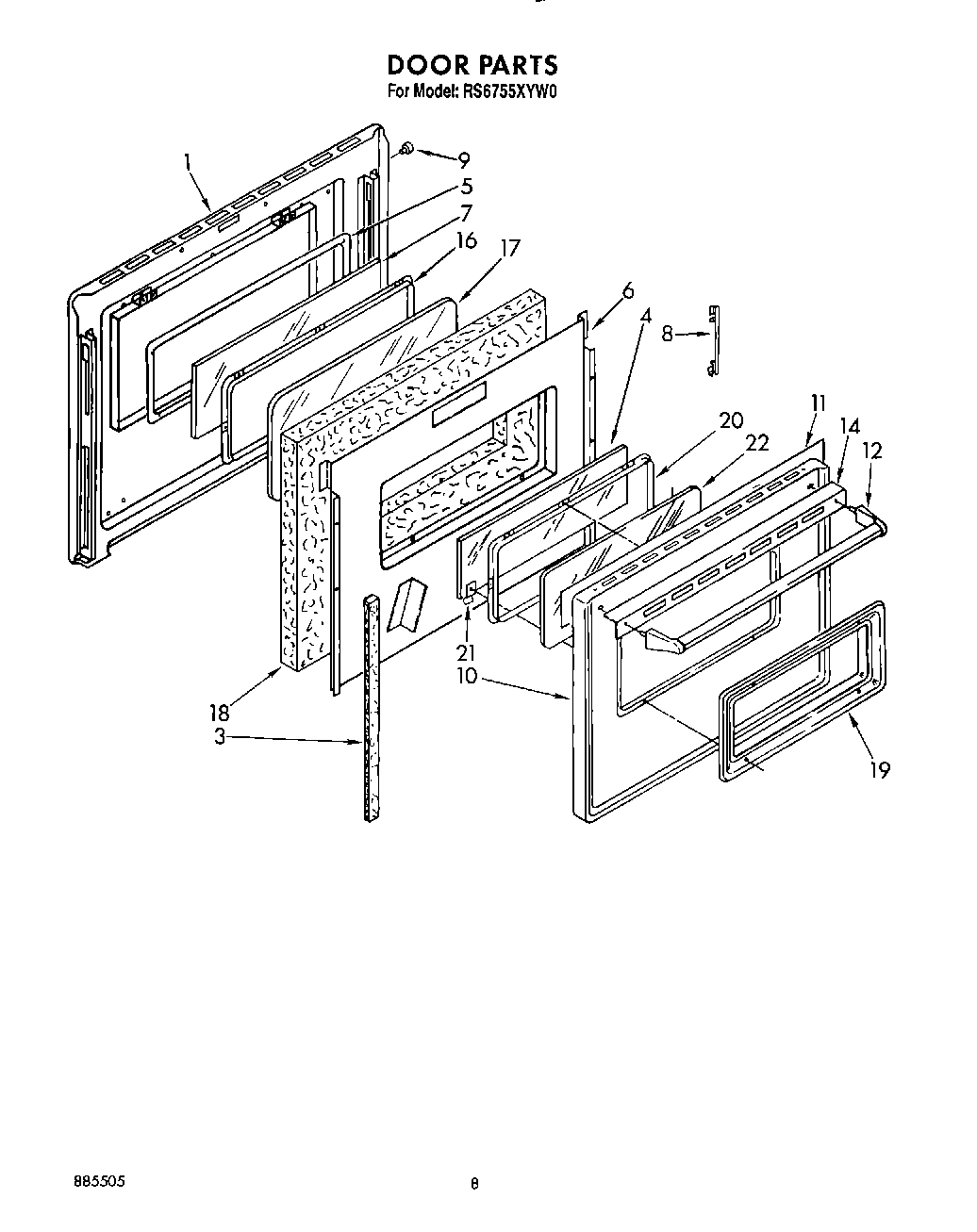

RS6755XYN0 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Installation Instructions
Tech Sheet
Use & Care Guide
1Screw, 10A x 1/2 (2) (Black)
1Liner, Door
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Panel, Door (White)
10Panel, Door (Fastener (2))
10Panel, Door (Almond)
11Foil, Door
12Handle, Door
12WP308499 Whirlpool Nut
14Back Splash (Screw (4) 10AB x 1/2“)
14Top, Door
16Screw
16Frame, Inner
18Insulation, Door
19Screw
19Window, Frame
20Retainer, Glass
21Clip, Frame
22Glass, Outer
22Hinge-Lt. or Rt.
