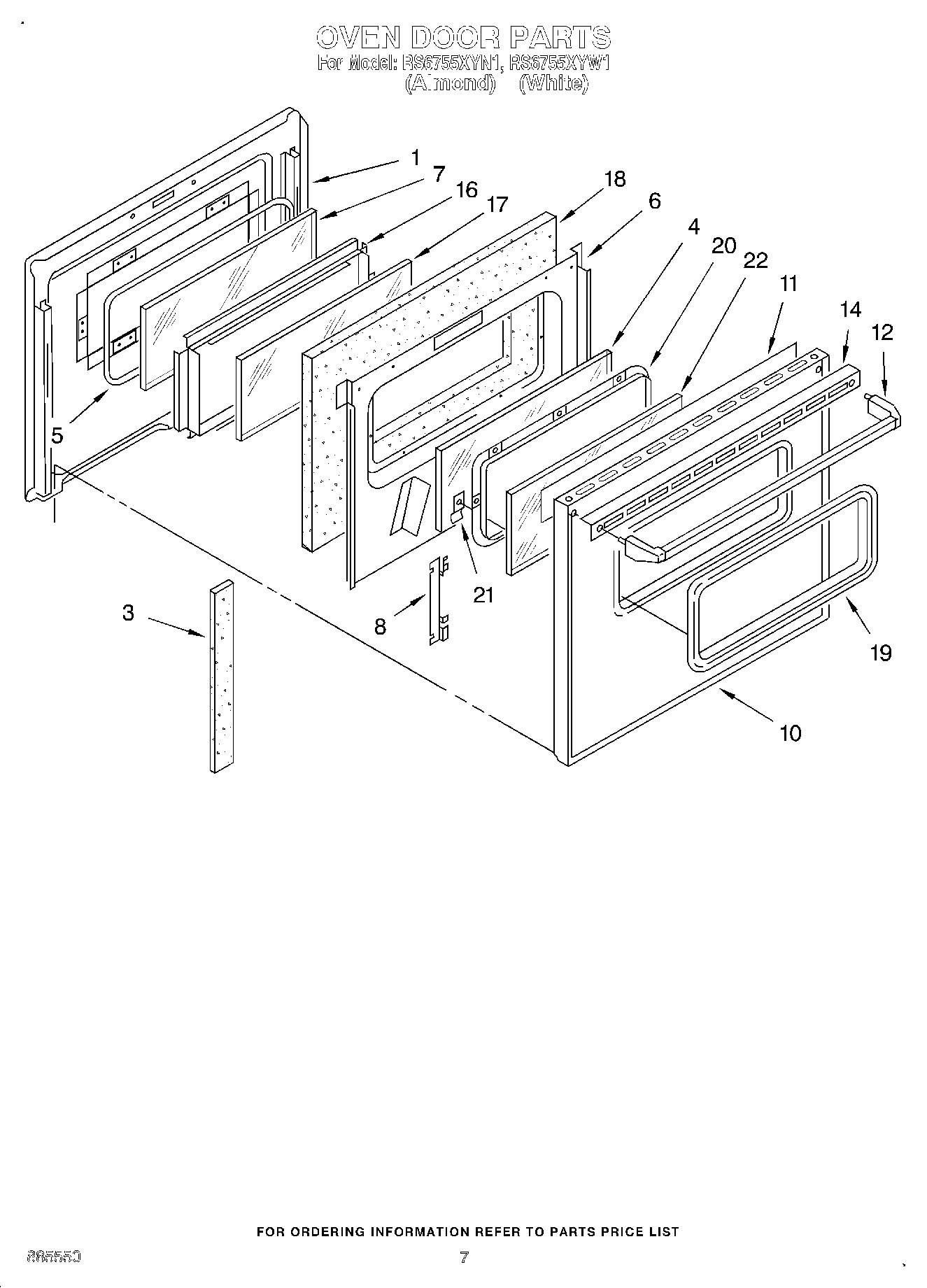

RS6755XYN1 05 – OVEN DOOR, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Brochure
Installation Instructions
Use & Care Guide
Tech Sheet
1Screw, 10A x 1/2 (2) (Black)
1Liner, Door
3Seal, Flange (2)
4Glass, Clear
5Seal, Door
6Retainer,
8Retainer, Glass (2)
10Panel, Door (White)
10Panel, Door (Fastener (2))
10Panel, Door (Almond)
11Foil, Door
12Handle, Door
12WP308499 Whirlpool Nut
14Back Splash (Screw (4) 10AB x 1/2“)
14Top, Door
16Screw
16Frame, Inner
17WP3169203 Whirlpool Door Glass
18Insulation, Door
19Window, Frame
19Screw
20Retainer, Glass
21Clip, Frame
22Glass, Outer
22Hinge-Lt. or Rt.
