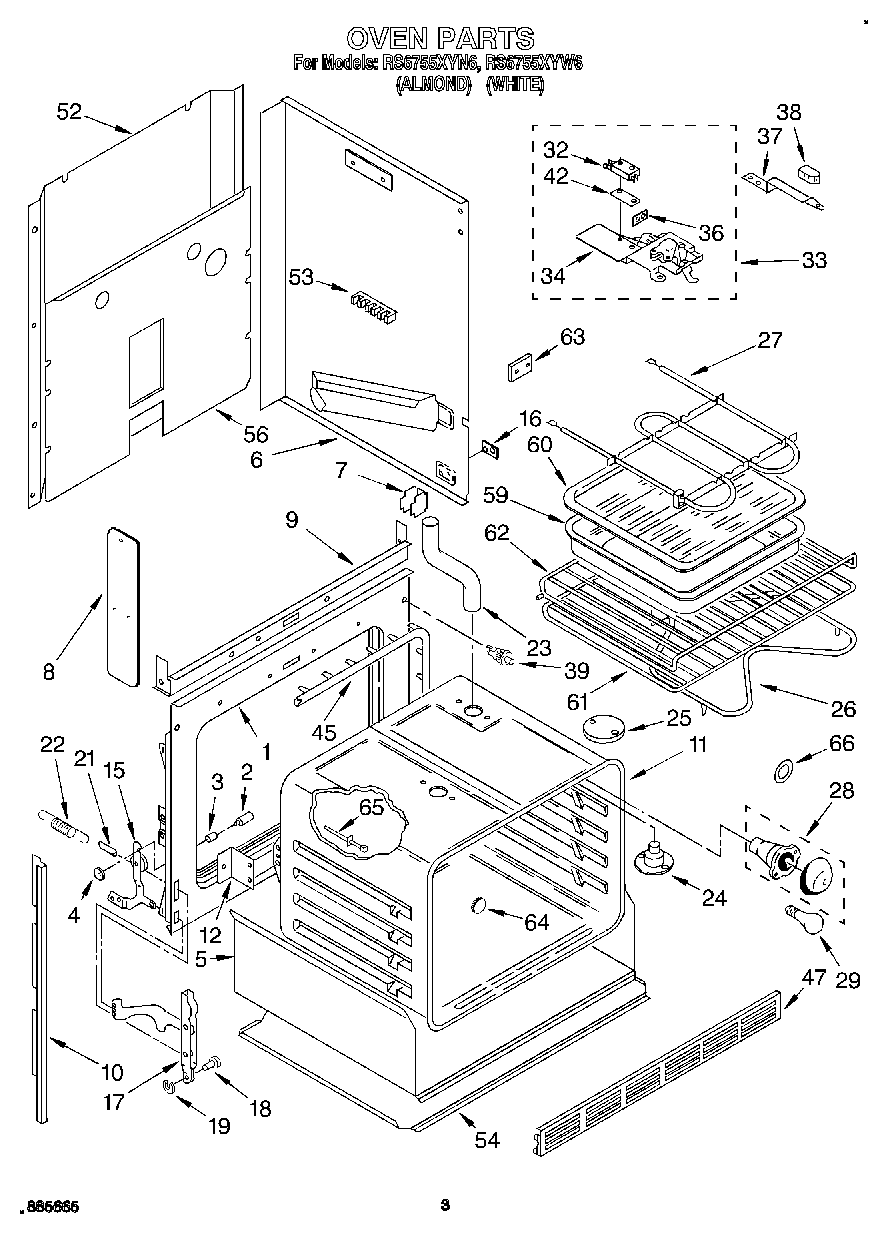

RS6755XYN6 03 – OVEN

Products

Position	Product
1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper R.H.
6	Side Wrapper L.H.
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Screw (2)
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	WPL 312318
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	Safety Switch
33	Latch Assembly
33	Screw (3)
34	Latch Mechanism
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw
38	Knob, Latch Handle
39	Switch, Door
42	Screw
42	Insulator, Switch
45	WPL 3185197
47	Grill, Bottom (Screw (3))
47	Grill, Bottom
52	Cover, Rear
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	Cover, Bottom
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
63	Screw (2)
63	WPL 3183005
64	Button, Plug
65	WP488729 Whirlpool Refrigerator Door Screw
65	Sensor, Heat
66	WPL 3149328
66	WPL 310433
66	WPL 310435
66	WP3184533 Whirlpool Range Light Lens Gasket
66	WPL 3188439
