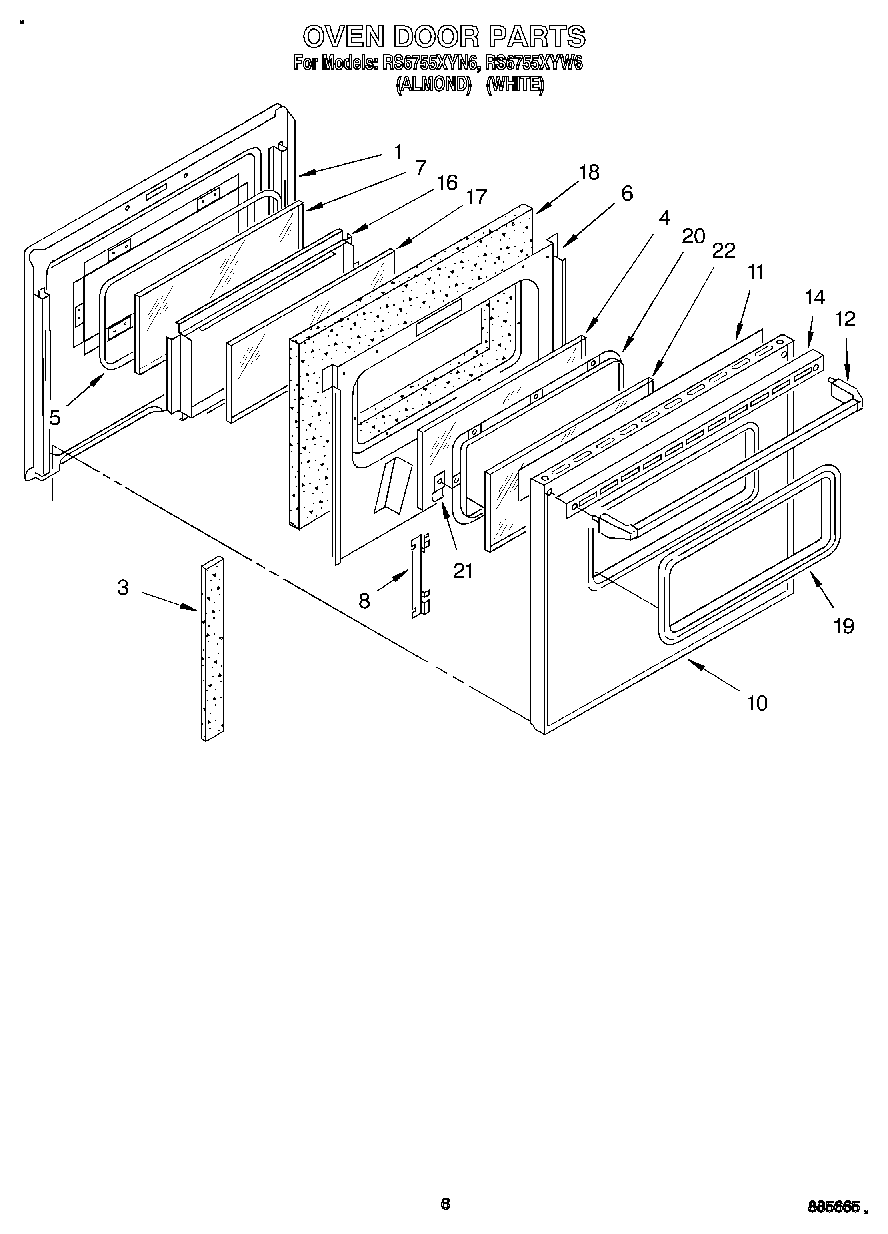

RS6755XYN6 05 – OVEN DOOR, LITERATUREadmin2025-04-26T12:51:47+00:00RS6755XYN6 05 – OVEN DOOR, LITERATURE
Products
| Position | Product |
|---|
| Installation Instructions |
| WPL LIT3188560 |
| WPL LIT3188575 |
| 1 | Liner, Door |
| 1 | Screw, 10A x 1/2 (2) (Black) |
| 3 | Seal, Flange (2) |
| 4 | Glass, Clear |
| 5 | Seal, Door |
| 6 | Retainer, |
| 8 | Retainer, Glass (2) |
| 10 | Panel, Door (Fastener (2)) |
| 10 | Panel, Door (Almond) |
| 10 | Panel, Door (White) |
| 11 | Foil, Door |
| 12 | Handle, Door |
| 14 | Top, Door |
| 14 | Back Splash (Screw (4) 10AB x 1/2``) |
| 16 | Frame, Inner |
| 17 | WP3169203 Whirlpool Door Glass |
| 18 | Insulation, Door |
| 19 | Window, Frame |
| 19 | Screw |
| 20 | Retainer, Glass |
| 21 | Clip, Frame |
| 22 | Hinge-Lt. or Rt. |
| 22 | Glass, Outer |
