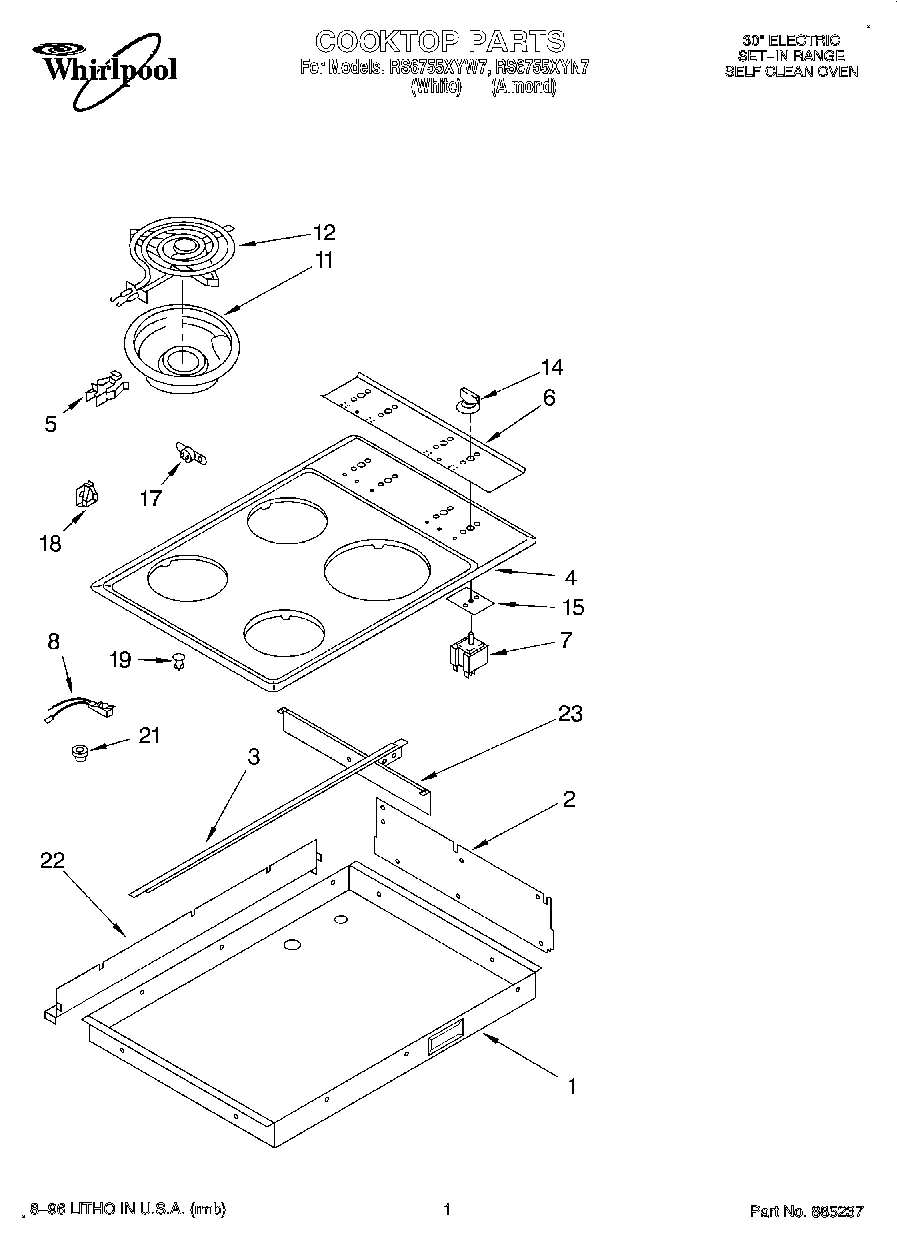

RS6755XYN7 01 – COOKTOP

Products

PositionProduct
1Box, Burner
2Plate, Mounting
3Bracket, Mounting
4WP488729 Whirlpool Refrigerator Door Screw
4Cooktop (White)
4Cooktop (Almond)
5WP4332752 Whirlpool Clip
6Panel, Control
7Switch, Infinite (Use W/6“ Surface Unit)
7Switch, Infinite (Use W/8“ Surface Unit)
8Light, Indicator
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WP660532 Whirlpool Oven Surface Element
12WP660533 Whirlpool Oven 8" Surface Element
14Knob, Control (4)
153183956 Whirlpool Oven Seal Switch
17Screw
17WP3188286 Whirlpool Thermostat
18814103 Whirlpool Clip
19Lens, Light
21WPL 258109
22Cover, Rear
23Shield, Heat
23Screw (6)
