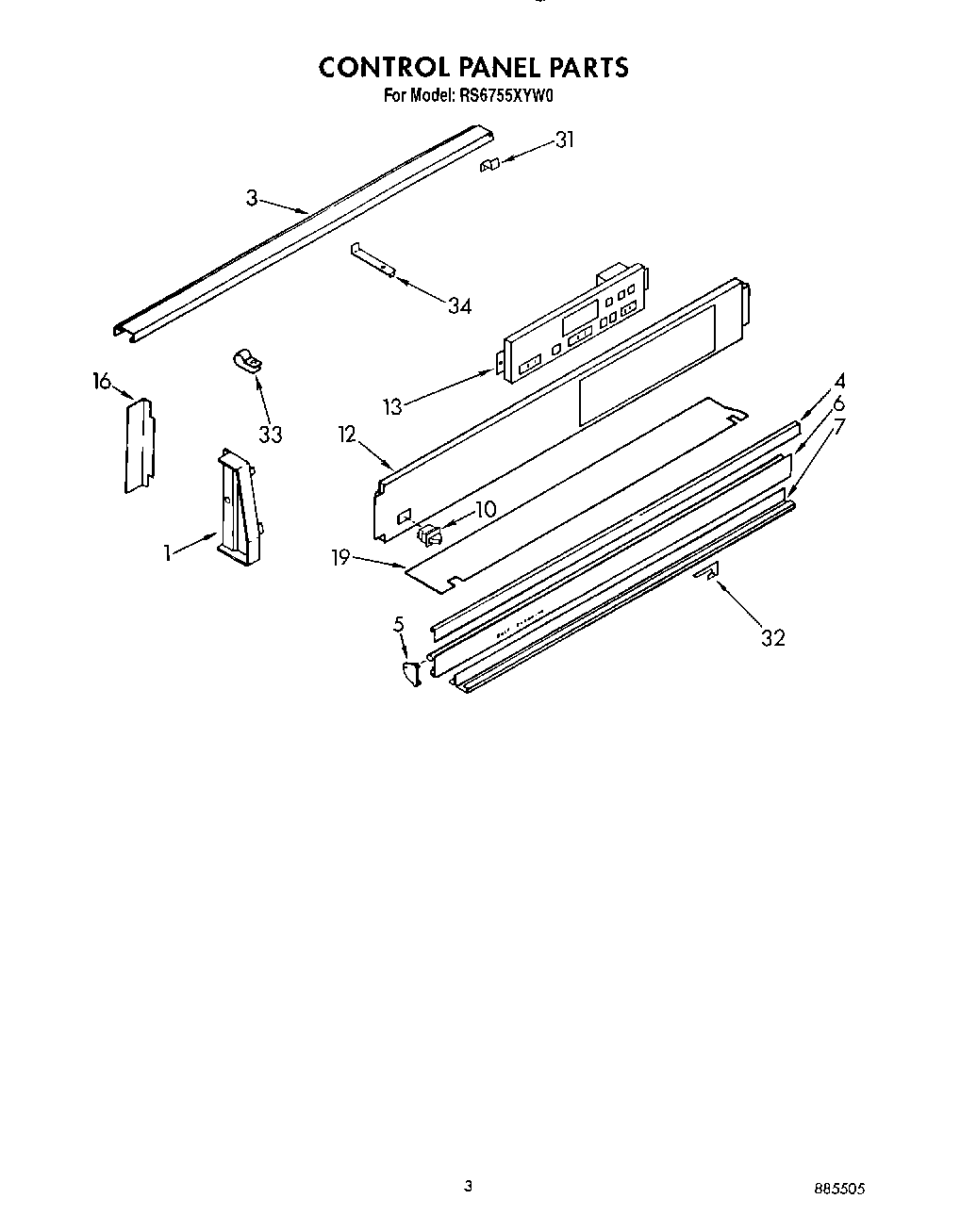

RS6755XYW0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
1	Screw, 10A x 1/2 (2) (Black)
3	Rail, Top
3	Screw (2)
4	Trim, Center (Black)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent (Black)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
10	Switch, Rocker
12	Panel, Control (Black)
13	Control, Electronic (Black)
15	Shield, Heat
16	Trim, End Cap (Black)
19	Shield, Control
31	Bracket, Control
32	Shield, Air
33	WP488729 Whirlpool Refrigerator Door Screw
33	488946 Whirlpool Air Conditioner Clamp
34	Support, Rail
34	WP965173 Whirlpool Dishwasher Screw
