RS6755XYW0 05 – WIRING HARNESS, OPTIONAL

RS6755XYW0 05 – WIRING HARNESS, OPTIONAL

Written by

in

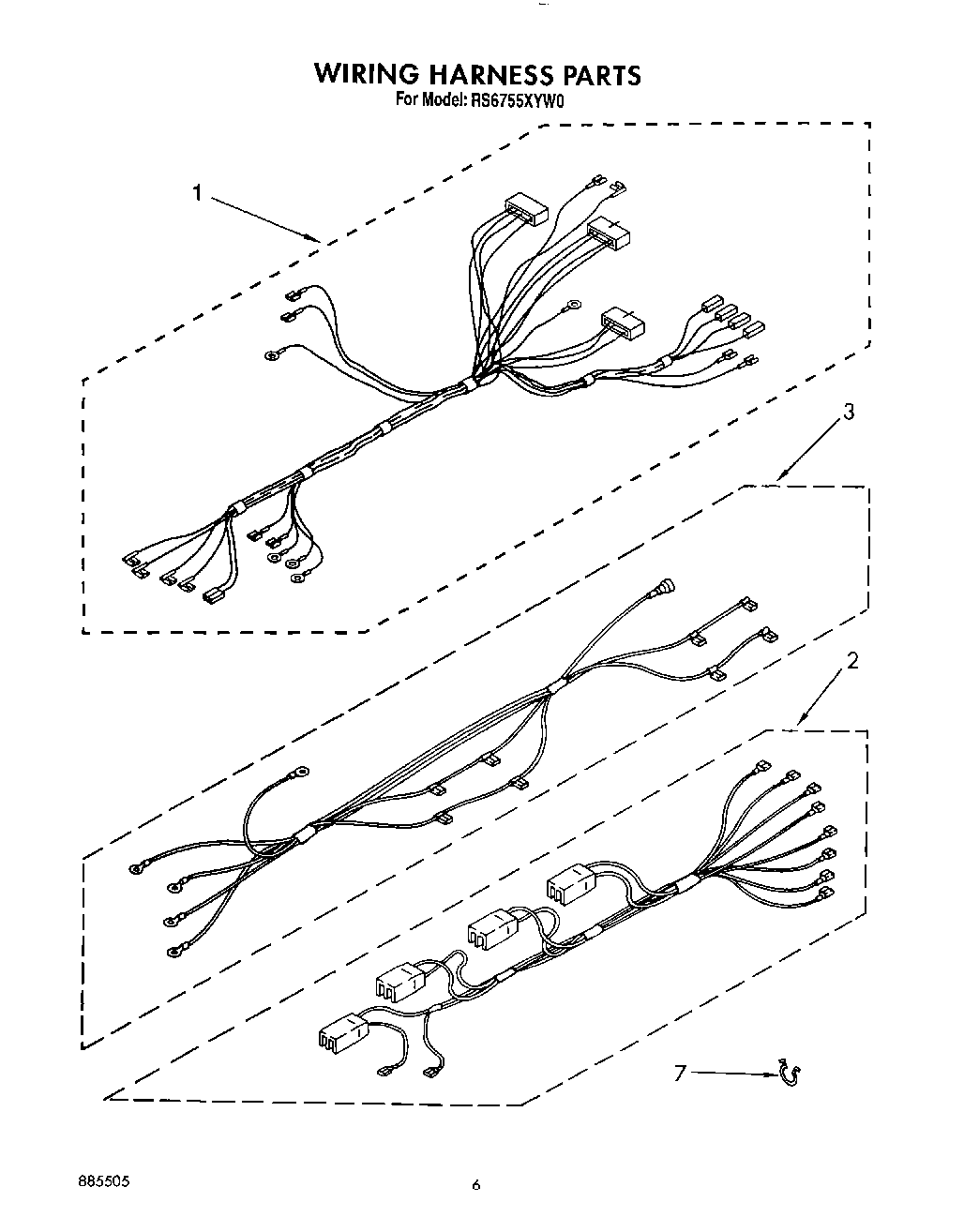

RS6755XYW0 05 – WIRING HARNESS, OPTIONAL

Products

PositionProduct
1Harness, Wire (Main)
2Harness, Wire (suface Unit)
3Harness, Wire (Infinite Switch)
718 Ga. 80~c Rating (Red)
7Wire (14 Ga. 200 c Brown)
71
78212471 Whirlpool Oven Paint
7Grease
7WPL 3171507
7Wire (12 Ga. 150 c Black)
7Wire (14 Ga. 150 c Yellow)
7Wire (14 Ga. 150 c Orange)
7Wire, 25` Roll (Black 14 Ga.)
7Wire, 25` Roll (Red 14 Ga.)
7Wire, 25“ Roll (White 14 GA.)
716515 Whirlpool Clip
7242831 Whirlpool Oven Wire
7Wire (14 Ga. 150 c Blue)
7Wire (14 Ga. 150 c Brown)
7Wire (14 Ga. 150 c Green)
7FOIL, ALUMINUM OVEN (18“ X 25 )
