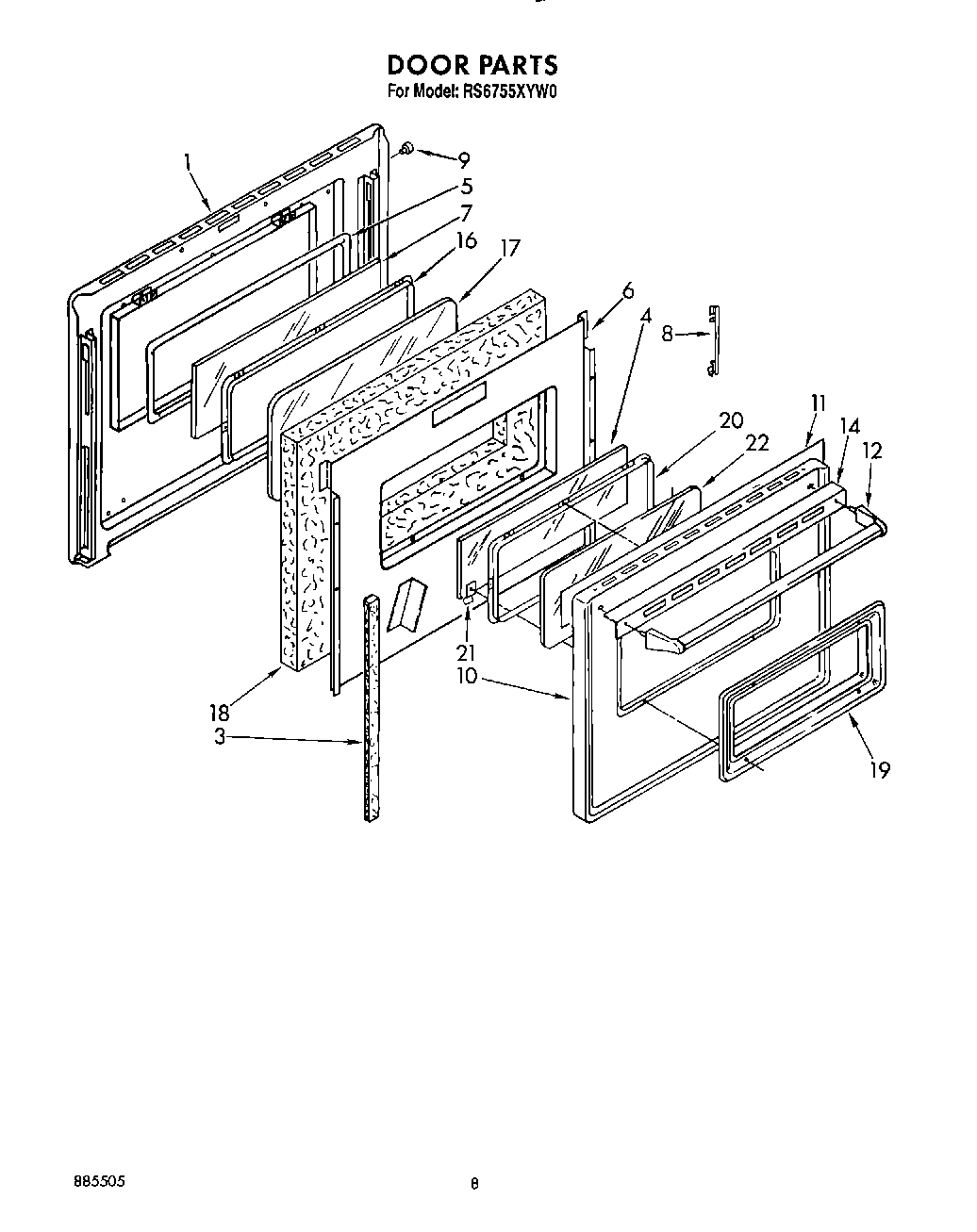

RS6755XYW0 06 – DOOR, LIT/OPTIONAL

RS6755XYW0 06 – DOOR, LIT/OPTIONAL

Written by

in

RS6755XYW0 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Tech Sheet
	Use & Care Guide
1	Screw, 10A x 1/2 (2) (Black)
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Panel, Door (White)
10	Panel, Door (Fastener (2))
10	Panel, Door (Almond)
11	Foil, Door
12	Handle, Door
12	WP308499 Whirlpool Nut
14	Back Splash (Screw (4) 10AB x 1/2“)
14	Top, Door
16	Screw
16	Frame, Inner
18	Insulation, Door
19	Screw
19	Window, Frame
20	Retainer, Glass
21	Clip, Frame
22	Glass, Outer
22	Hinge-Lt. or Rt.
