RS6755XYW1 01 – COOKTOP

Products

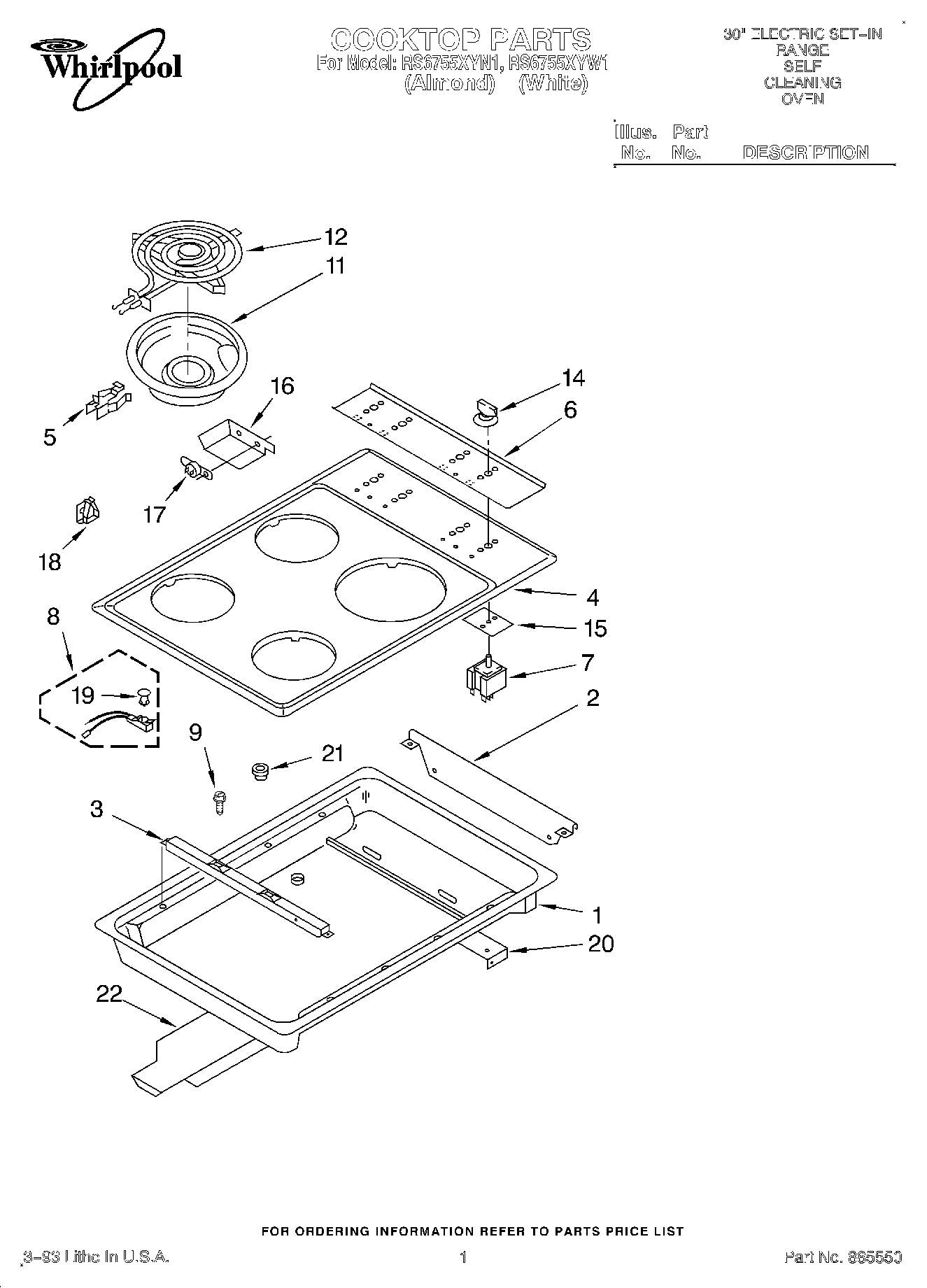

PositionProduct
1Box, Burner
2Shield, Switch
3Support, Cooktop
4Cooktop (Almond)
4Cooktop (White)
5BURNER RECEPTACLE KIT
6Panel, Control
7Switch, Infinite (6“ Element (2))
7WP3148966 Whirlpool Infinite Switch
8Indicator, Light (Includes No. 14)
9Screw
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WP660533 Whirlpool Oven 8" Surface Element
12WP660532 Whirlpool Oven Surface Element
14Knob, Control (4)
153183956 Whirlpool Oven Seal Switch
16Bracket, Sensor
17Thermostat
17WP313808 Whirlpool Screw
18814103 Whirlpool Clip
19Lens, Light
20Support, Box
21WPL 258109
22Cover, Top Rear
22WP488729 Whirlpool Refrigerator Door Screw
