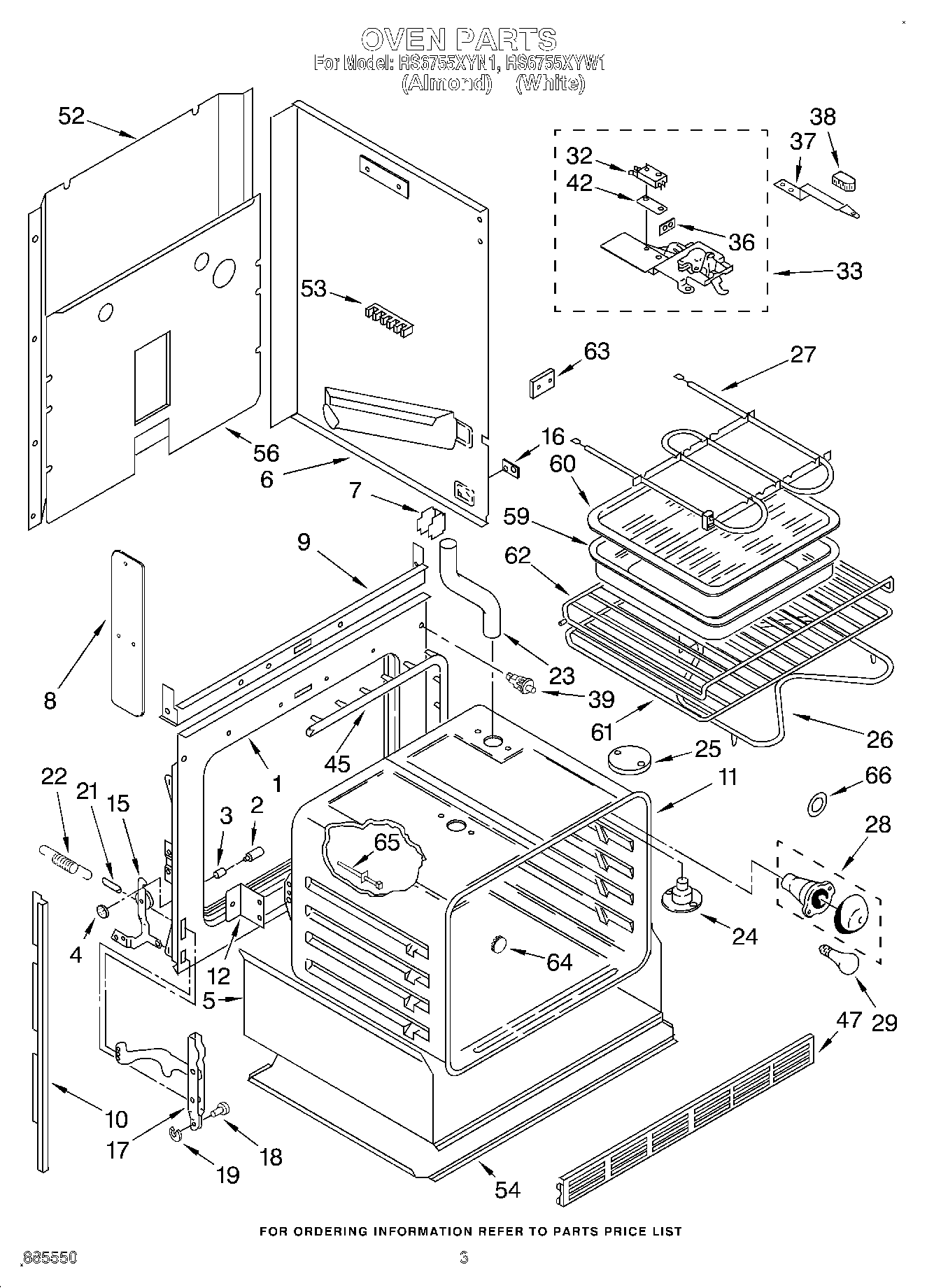

RS6755XYW1 03 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Screw (2)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	WP488729 Whirlpool Refrigerator Door Screw
23	SCREW
24	Eliminator, Smoke
24	Screw (2)
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	WPL 312318
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	Safety Switch
33	Latch Assembly
33	Screw (3)
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw
38	Knob, Latch Handle
39	Switch, Door
42	Insulator, Switch
45	Seal, Door
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Cover, Rear
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
54	WPL 310458
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 3183005
64	Button, Plug
65	Sensor, Heat
66	WP3184533 Whirlpool Range Light Lens Gasket
66	WPL 310435
66	WPL 310433
66	WPL 3149328
