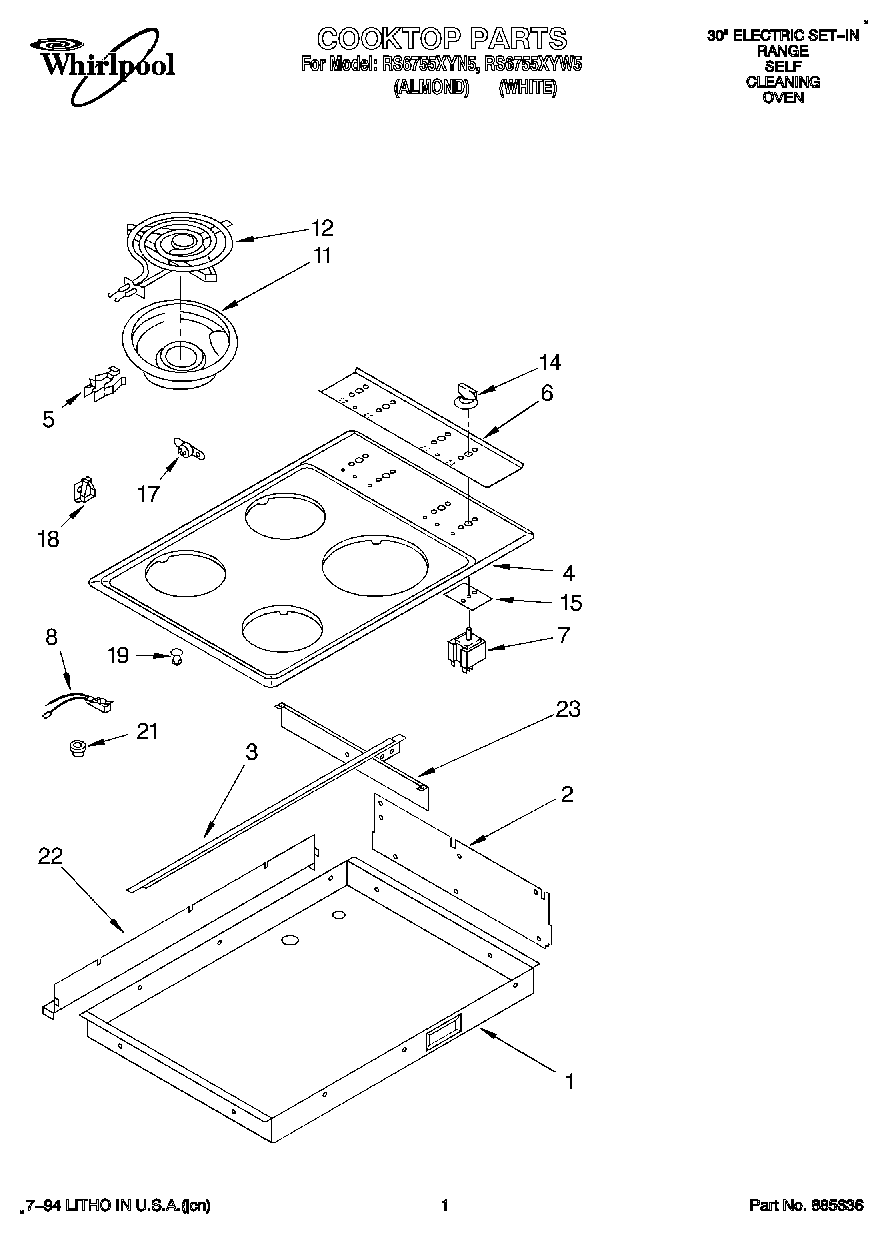

| 1 | Box, Burner |
| 2 | Plate, Mounting |
| 3 | Bracket, Mounting |
| 4 | Cooktop (White) |
| 4 | Cooktop (Almond) |
| 4 | WP488729 Whirlpool Refrigerator Door Screw |
| 5 | WP4332752 Whirlpool Clip |
| 6 | Panel, Control |
| 7 | Switch, Infinite (6`` Element (2)) |
| 7 | WP3148966 Whirlpool Infinite Switch |
| 8 | Light, Indicator |
| 11 | DRIP BOWL 8" W/HOLE CHROME |
| 11 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 12 | WP660532 Whirlpool Oven Surface Element |
| 12 | WP660533 Whirlpool Oven 8" Surface Element |
| 14 | Knob, Control (4) |
| 15 | 3183956 Whirlpool Oven Seal Switch |
| 17 | WP313808 Whirlpool Screw |
| 17 | WP3188286 Whirlpool Thermostat |
| 18 | 814103 Whirlpool Clip |
| 19 | Lens, Light |
| 21 | WPL 258109 |
| 22 | Cover, Rear |
| 23 | Shield, Heat |
| 23 | Screw (6) |
