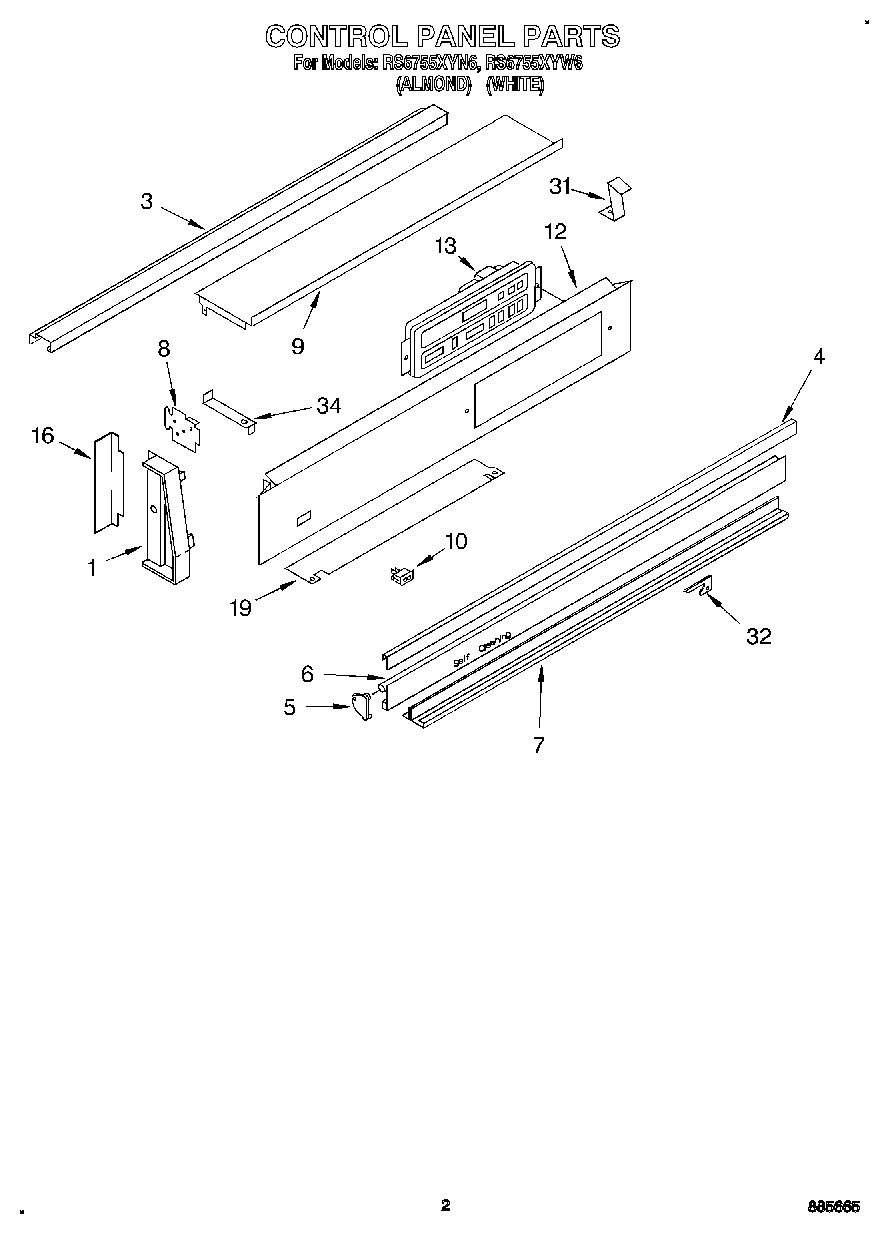

RS6755XYW6 02 – CONTROL PANEL

RS6755XYW6 02 – CONTROL PANEL

Written by

in

RS6755XYW6 02 – CONTROL PANEL

Products

PositionProduct
1End Cap (R.H.)
1Screw, 10A x 1/2 (2) (Black)
1End Cap (L.H.)
3Rail, Top
3Screw (2)
4Trim, Center (Black)
5End Trim, Vent (Right Side)
5End Trim, Vent (Left Side)
6Door, Vent (Black)
7Screw, 10-32 x 1/2
7Trim, Bottom
8Cover, Side (Left Hand)
8Cover, Side (Right Hand)
9Shield, Heat
9WP488729 Whirlpool Refrigerator Door Screw
10Switch, Rocker
12Panel, Control (Black)
12WP308605 Whirlpool Refrigerator Clamp
13Control, Electronic (Black)
16Trim, End Cap (Black)
19Shield, Control
31Bracket, Control
32Shield, Air
34Support, Rail
34WP965173 Whirlpool Dishwasher Screw
