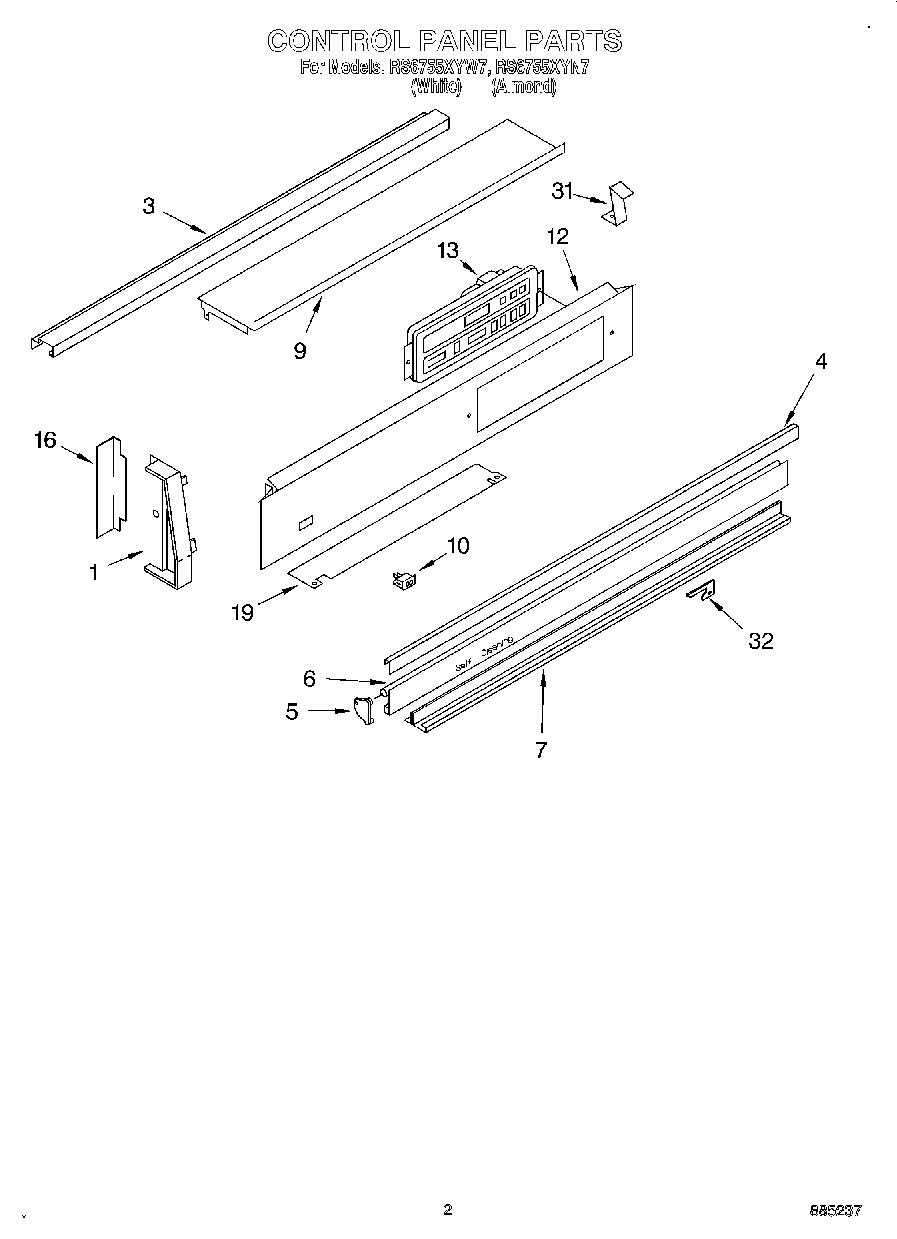

RS6755XYW7 02 – CONTROL PANEL

Written by

Products

Position	Product
1	End Cap (R.H.)
1	Screw, 10A x 1/2 (2) (Black)
1	End Cap (L.H.)
3	Screw (2)
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent (Black)
7	Trim, Bottom
7	Screw, 10-32 x 1/2
9	WP488729 Whirlpool Refrigerator Door Screw
9	Shield, Heat
10	Switch, Rocker
12	WP308605 Whirlpool Refrigerator Clamp
12	Panel, Control (Black)
13	Control, Electronic (Black)
16	Trim, End Cap (Black)
19	Shield, Control
31	Bracket, Control
32	Shield, Air
