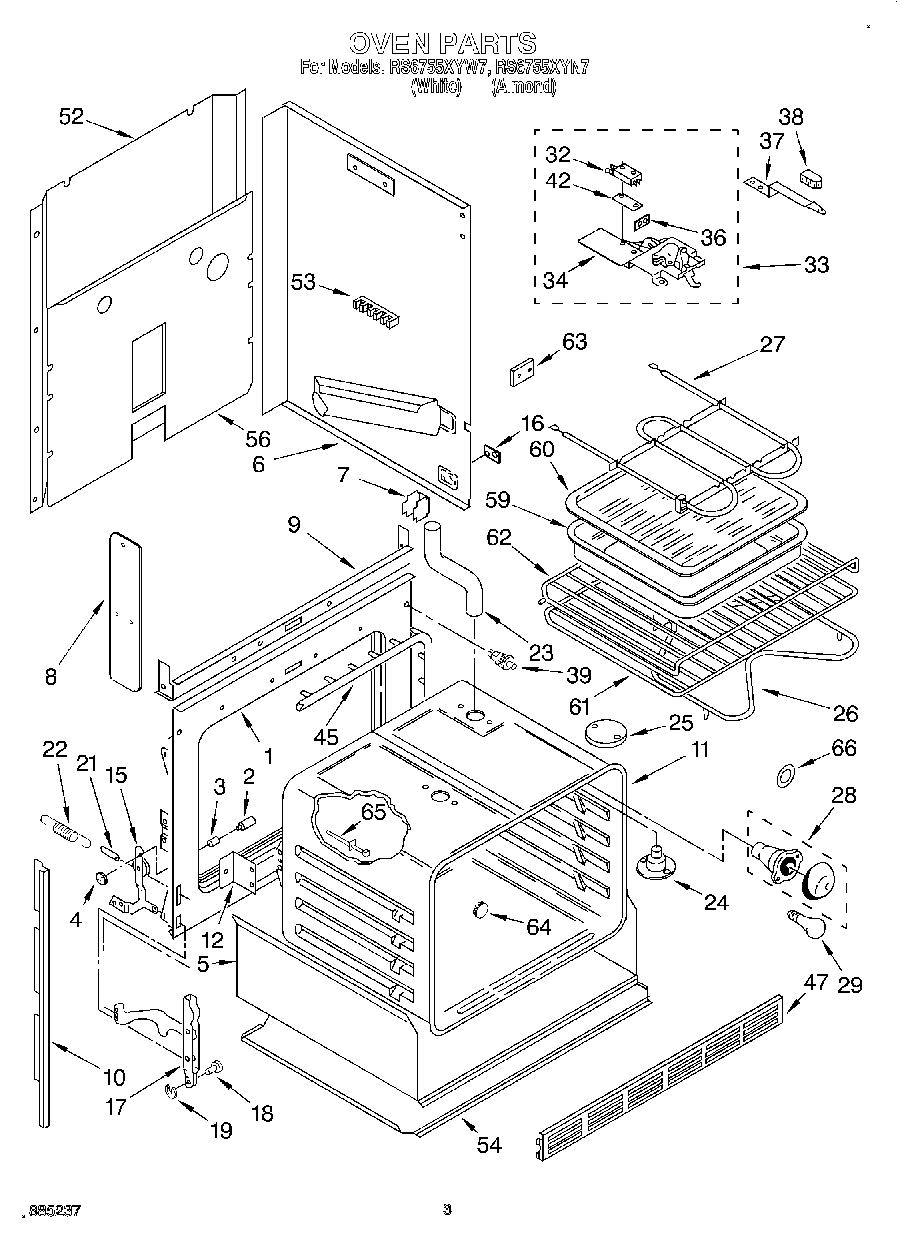

RS6755XYW7 03 – OVEN

Products

Position	Product
1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper R.H.
6	Side Wrapper L.H.
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Tube, Vent
24	Screw (2)
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	WPL 312318
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	Safety Switch
33	Screw (3)
33	Latch Assembly
34	Latch Mechanism
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
42	Screw
42	Insulator, Switch
45	WPL 3185197
47	Grill, Bottom (Black)
47	Grill, Bottom (Screw (3))
52	Cover, Rear
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
54	Cover, Bottom
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
63	WPL 3183005
63	Screw (2)
64	Button, Plug
65	WP488729 Whirlpool Refrigerator Door Screw
65	Sensor, Heat
66	WPL 3188439
66	WPL 3149328
66	WPL 4454421
66	WP3184533 Whirlpool Range Light Lens Gasket
