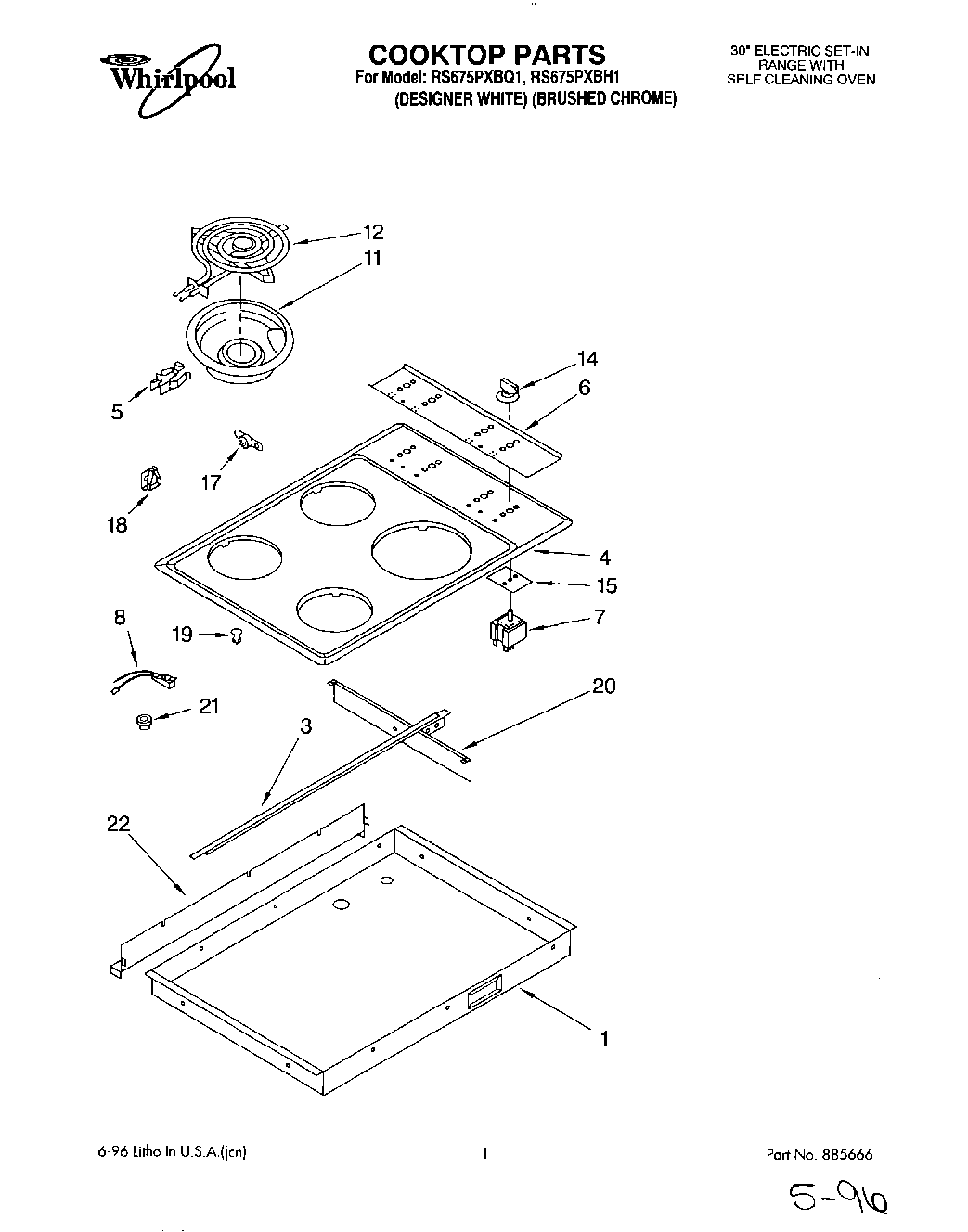

RS675PXBH1 01 – COOKTOP

Products

Position	Product
1	Box, Burner
3	Bracket, Mounting
4	Cooktop (White)
4	Cooktop (Brushed Chrome)
5	WP4332752 Whirlpool Clip
6	Panel, Control (White)
6	Panel, Control
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (6“ Element (2))
7	WP3148966 Whirlpool Infinite Switch
7	WP488729 Whirlpool Refrigerator Door Screw
8	Light, Indicator
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP660532 Whirlpool Oven Surface Element
12	WP660533 Whirlpool Oven 8" Surface Element
14	WP3183119 Whirlpool Knob Assembly
14	Knob, Control (4)
15	3183956 Whirlpool Oven Seal Switch
17	WP3188286 Whirlpool Thermostat
17	WP313808 Whirlpool Screw
18	814103 Whirlpool Clip
19	Lens, Light
20	Shield, Heat
21	WPL 258109
22	Screw (6)
22	Cover, Rear
