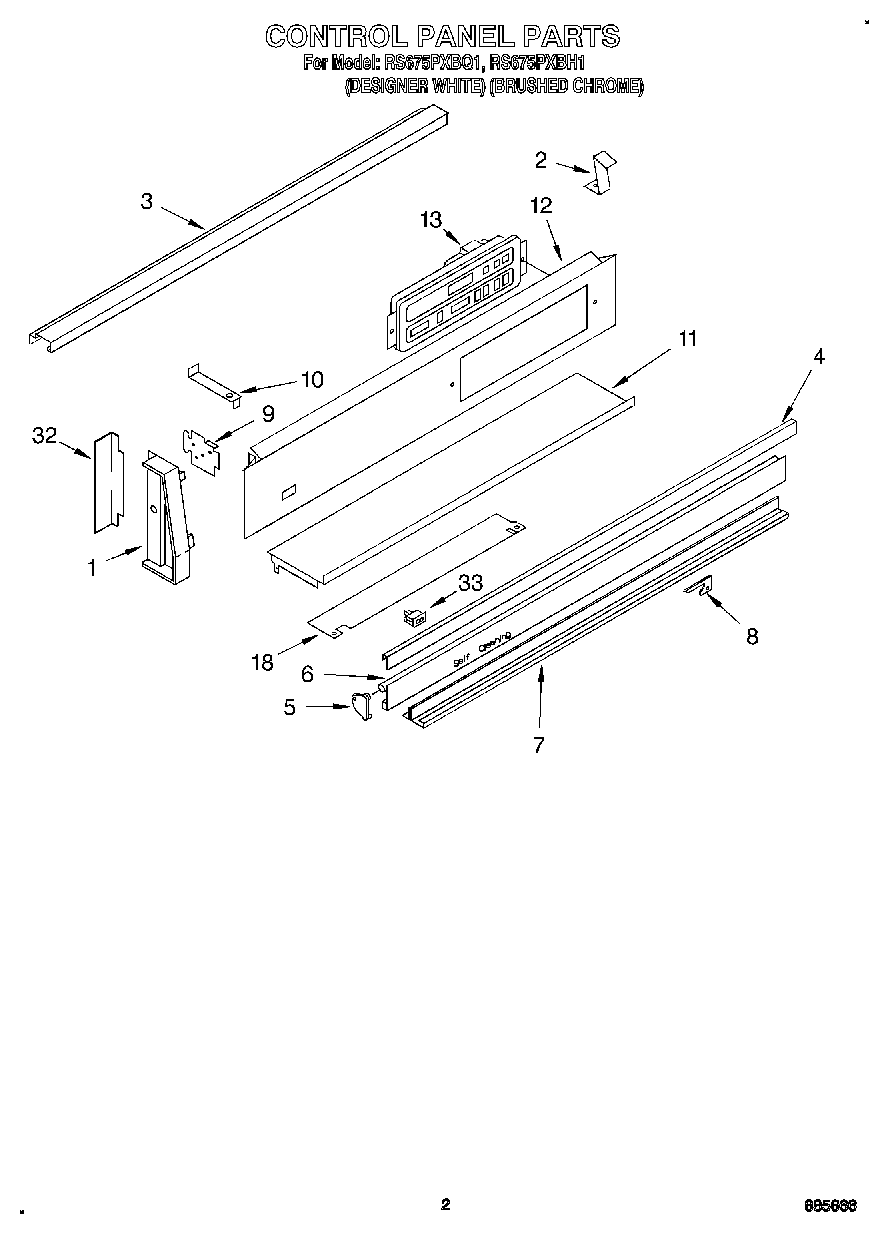

RS675PXBH1 02 – CONTROL PANEL

Products

Position	Product
1	End Cap Black (Right Hand)
1	End Cap Black (Left Hand)
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Bracket, Control
3	Rail, Top
4	Trim, Center (Black)
4	Trim, Center (White)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent (Black)
6	Door, Vent (Brushed Aluminum)
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Shield, Air
9	Cover, Side (Left Hand)
9	Cover, Side (Right Hand)
10	Support, Rail
10	WP965173 Whirlpool Dishwasher Screw
11	WP488729 Whirlpool Refrigerator Door Screw
11	Shield, Heat
12	Panel, Control (Black)
12	Panel, Control (White)
13	Screw (2)
13	Control, Electronic (White)
13	Control, Electronic (Black)
18	Shield, Control
32	Trim, End Cap (White)
32	Trim, End Cap (Black)
33	Switch, Rocker (White)
33	Switch, Rocker
