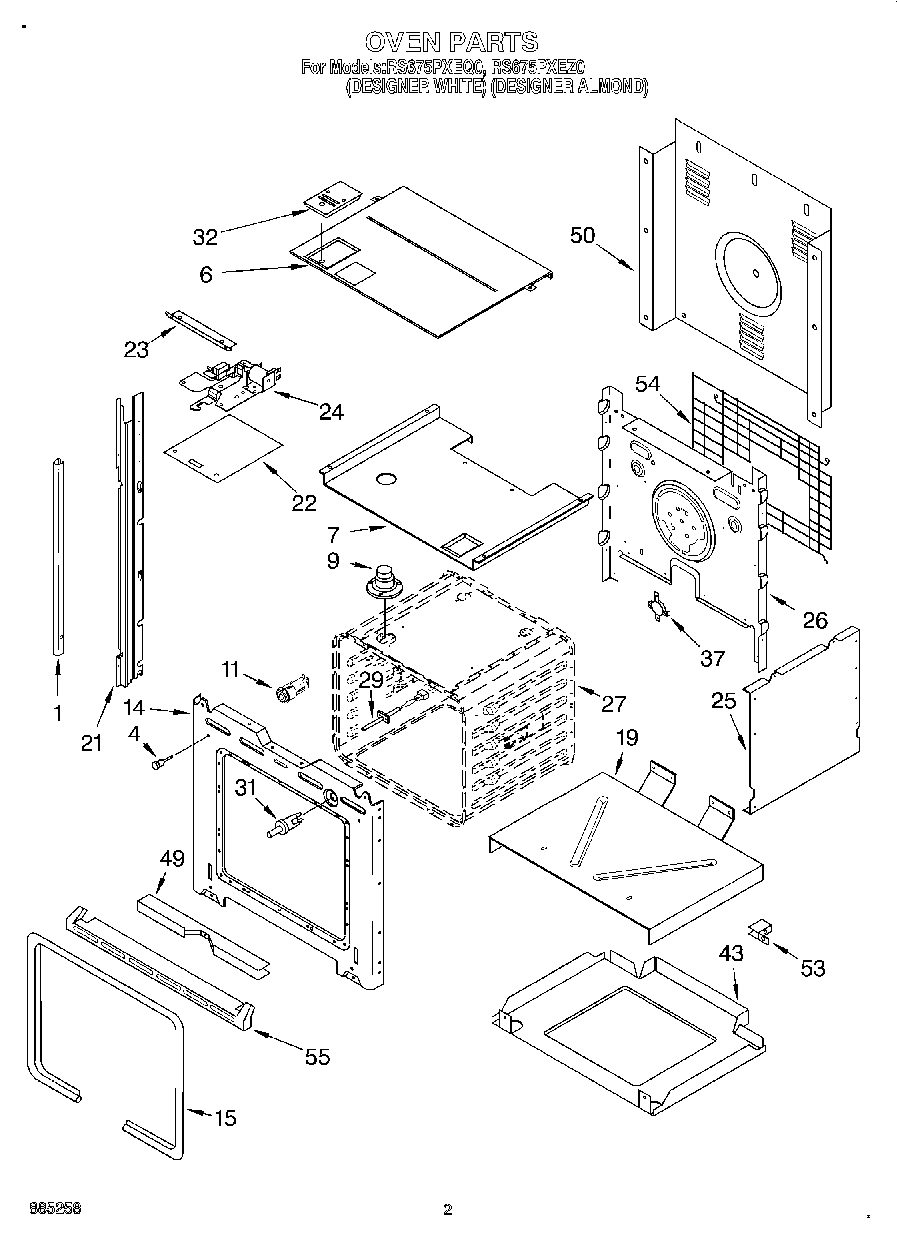

RS675PXEQ0 02 – OVEN

RS675PXEQ0 02 – OVEN

Written by

in

RS675PXEQ0 02 – OVEN

Products

PositionProduct
1Trim, Side (Left Hand) (Almond)
1Trim, Side (Right Hand) (Almond Model)
1Trim, Side (White)
1Trim, Side (LH White Screw)
1Trim, Side (White, Right)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22Shield, Latch
22Trim, Bottom (Screw)
23Deflector, Latch
24Latch Assy
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450249 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50Cover, Back
53WPL 4449845
54Spacer, Harness
54WP4449809 Whirlpool Screw
55WPL 4450365
55WPL 4448862
55WPL 4448478
55W11684730 Whirlpool Insulation
55Screw, (2)
