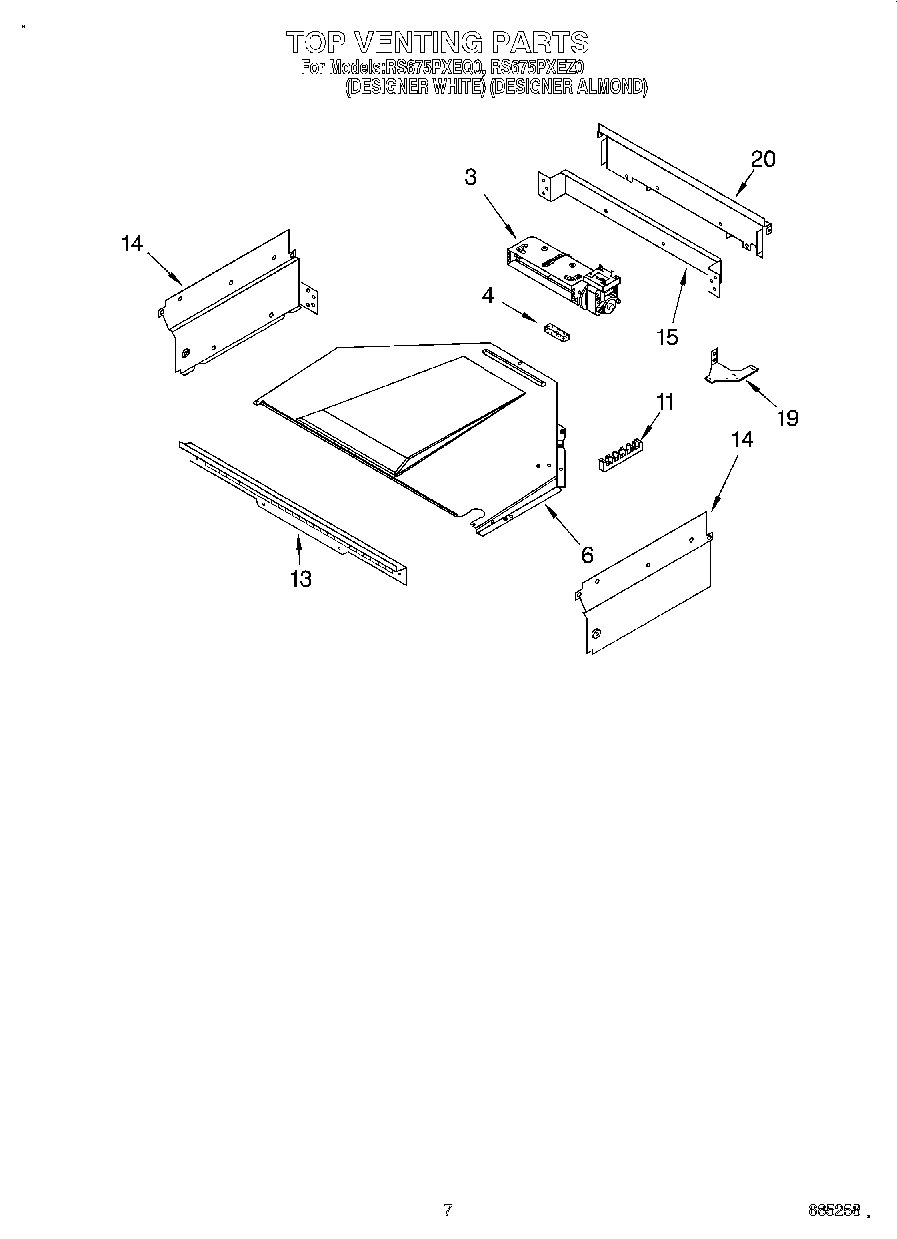

RS675PXEQ0 06 – TOP VENTING, OPTIONAL

Products

Position	Product
3	Blower
4	Seal, Foam
6	Exhaust Duct
11	WP8203546 Whirlpool Terminal Block
11	WP3387230 Whirlpool Screw
13	Vent, Control Panel
13	WP4450038 Whirlpool Screw
14	Side, Control Compt. (Right)
14	3191833 Whirlpool Oven Side Complete
15	Back, Control
19	Bracket, Support
19	489392 Whirlpool Refrigerator Screw
19	Bracket, Blower
20	242831 Whirlpool Oven Wire
20	Roll Tape, Exhaust Duct
20	Harness, Wire (Latch)
20	1
20	WPL 591014
20	Harness, Wire (Door Switch) (Also, order Main Harness)
20	Cover, Rear
20	Conduit
20	Wire, 25` Roll (Black 14 Ga.)
20	Harness, Wire (Surface Unit)
20	Harness, Wire (Infinite Switch)
20	261900 Whirlpool Microwave Spray
20	3184020 Whirlpool Oven Wire
20	Harness, Wire (Main)
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	285006 Whirlpool Spray
20	4450800 Whirlpool Oven Screw
20	4448664 Whirlpool Oven Mounting Bracket
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	WP112432 Whirlpool Nut Assembly
20	WP308544 Whirlpool Screw
20	WP4449809 Whirlpool Screw
20	72017 Whirlpool Appliance Touch-Up Paint White
20	72032 Whirlpool Touch Up Paint Black
20	WP482338 Whirlpool Refrigerator Adhesive
20	8528351 Whirlpool Clip
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WP261869 Whirlpool Microwave Paint
20	WP4448950 Whirlpool Screw
20	814381 Whirlpool Pin
20	350930 Whirlpool White Spray Paint
