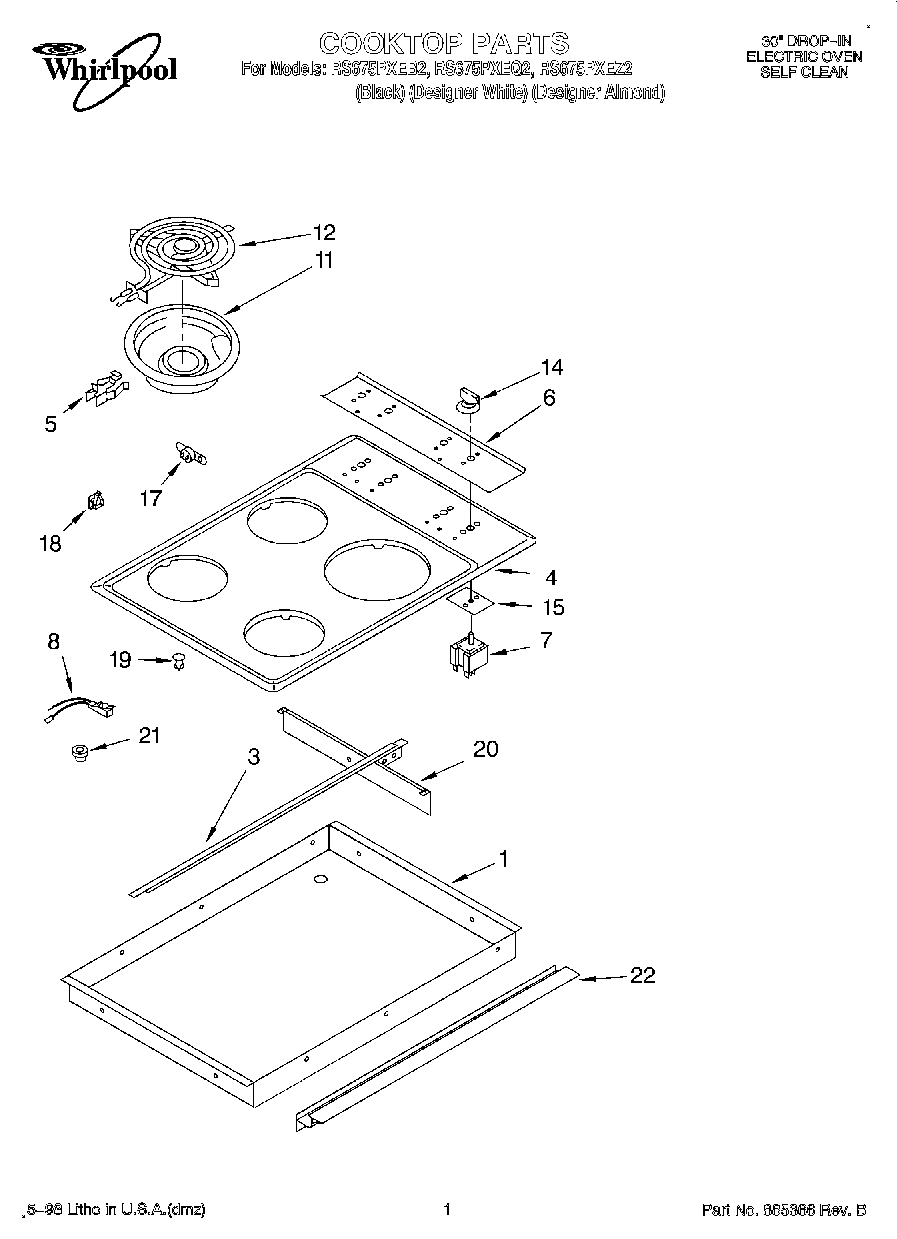

RS675PXEQ2 01 – COOKTOP

Written by

Products

Position	Product
1	Burner Box
3	Screw (6)
3	Bracket, Mounting
4	Cooktop (Black)
4	Cooktop (White)
4	Cooktop (Almond)
5	WP4332752 Whirlpool Clip
6	Panel, Control (Almond)
6	Panel, Control (White)
6	Panel, Control
7	Switch, Infinite (Use W/8“ Surface Unit)
7	Switch, Infinite (Use W/6“ Surface Unit)
8	Light, Indicator
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP660532 Whirlpool Oven Surface Element
12	WP660533 Whirlpool Oven 8" Surface Element
14	Designer Almond
14	WP3183119 Whirlpool Knob Assembly
14	Knob, Control (4)
15	3183956 Whirlpool Oven Seal Switch
17	Screw
17	WP3188286 Whirlpool Thermostat
18	814103 Whirlpool Clip
19	Lens, Light
20	Shield, Heat
21	Bushing
22	Trim, Extension (White)
22	Trim, Extension
22	Trim, Extension (Almond)
