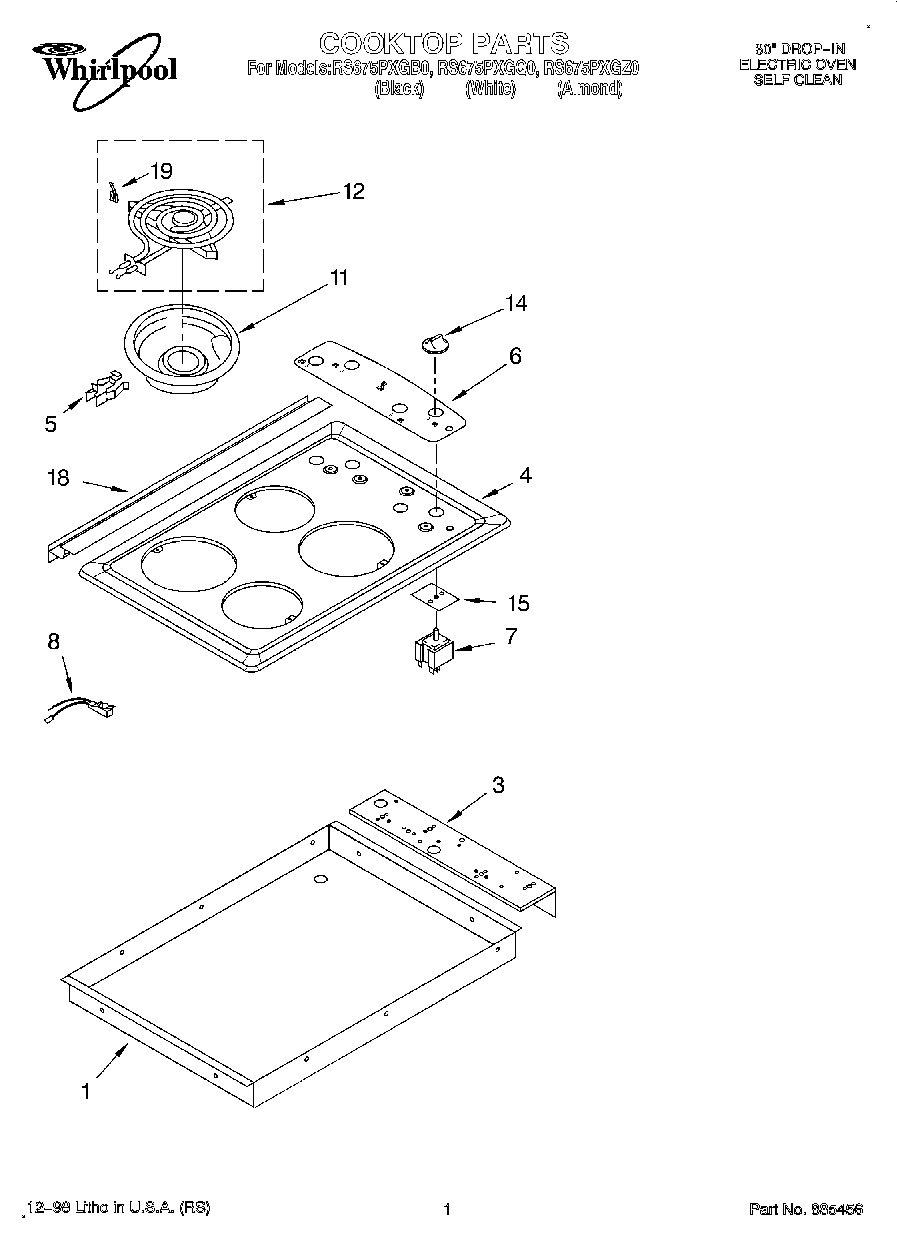

RS675PXGB0 01 – COOKTOP

RS675PXGB0 01 – COOKTOP

Written by

in

RS675PXGB0 01 – COOKTOP

Products

PositionProduct
1Burner Box
3Bracket, Mounting
3WP12990527 Whirlpool Microwave Screw
4Cooktop (Black)
4Cooktop (White)
4Cooktop (Almond)
5WP9760411 Whirlpool Clip
6Panel, Control (Black)
6Panel, Control (White)
6Panel, Control (Almond)
7WP3191471 Whirlpool Infinite Switch
7WP3191473 Whirlpool Infinite Switch
73400855 Whirlpool Oven Screw
8WP4456181 Whirlpool Indicator Light
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WP660532 Whirlpool Oven Surface Element
12WPW10259865 Whirlpool Range 8" Surface Element
14WP3196231 Whirlpool Knob
14Knob, Infinite (4) (Almond)
14WP3196232 Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
18Trim, Extension (Black)
18Trim, Extension (White)
18Trim, Extension (Almond)
19WP3195917 Whirlpool Clip Assembly
