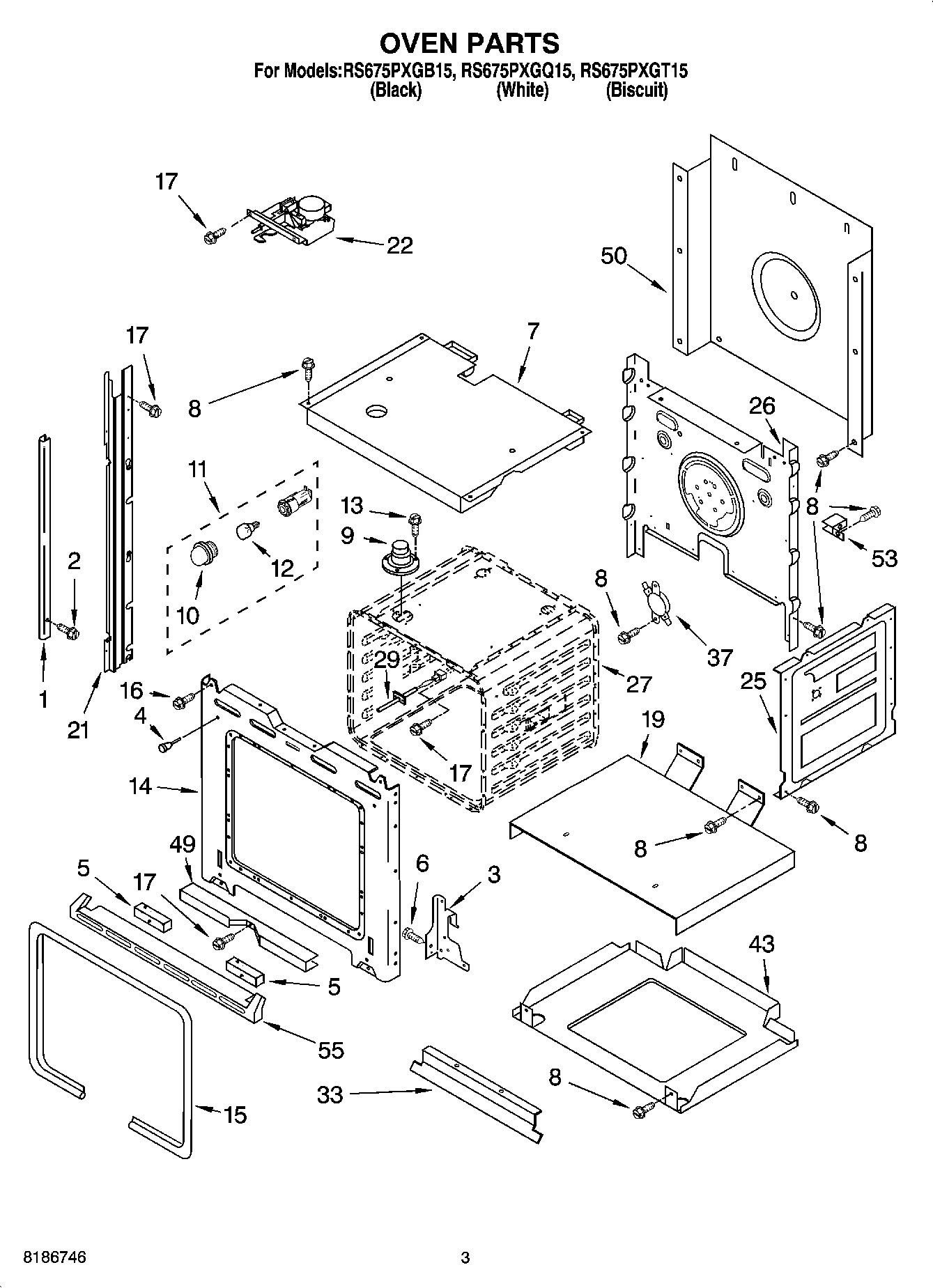

RS675PXGB15 03 – OVEN PARTS

RS675PXGB15 03 – OVEN PARTS

Written by

in

RS675PXGB15 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (LH Black)
1Trim, Side (White, Right)
1Trim, Side (LH Biscuit)
1Trim, Side (RH Biscuit)
1Trim, Side (LH White Screw)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6WP4449743 Whirlpool Screw
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13SCREW
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Screw
17WP4449154 Whirlpool Screw
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
55WPL 4450365
55WPL 4448478
55WPL 4448477
55WPL 4452415
55W11684730 Whirlpool Insulation
55FOLLOWING PARTS NOT ILLUSTRATED INSULATION
