RS675PXGB6 03 – OVEN

RS675PXGB6 03 – OVEN

Written by

in

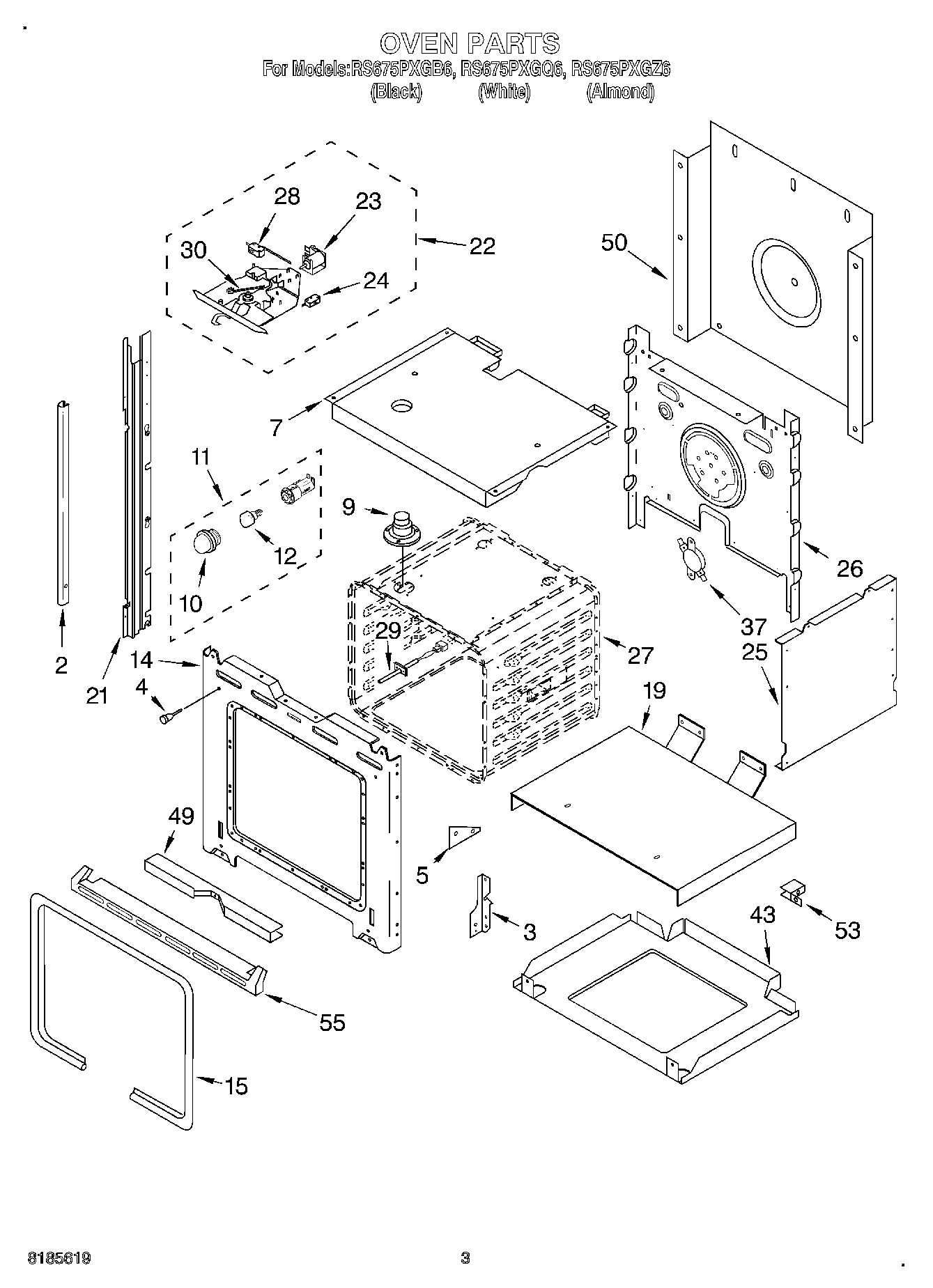

RS675PXGB6 03 – OVEN

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (LH White Screw)
1Trim, Side (LH Black)
1Trim, Side (White, Right)
1Trim, Side (Left Hand) (Almond)
1WP8281236 Whirlpool Screw
1Trim, Side (Right Hand) (Almond Model)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55WPL 4448862
55WPL 4450365
55WPL 4448478
55W11684730 Whirlpool Insulation
55WPL 4448477
