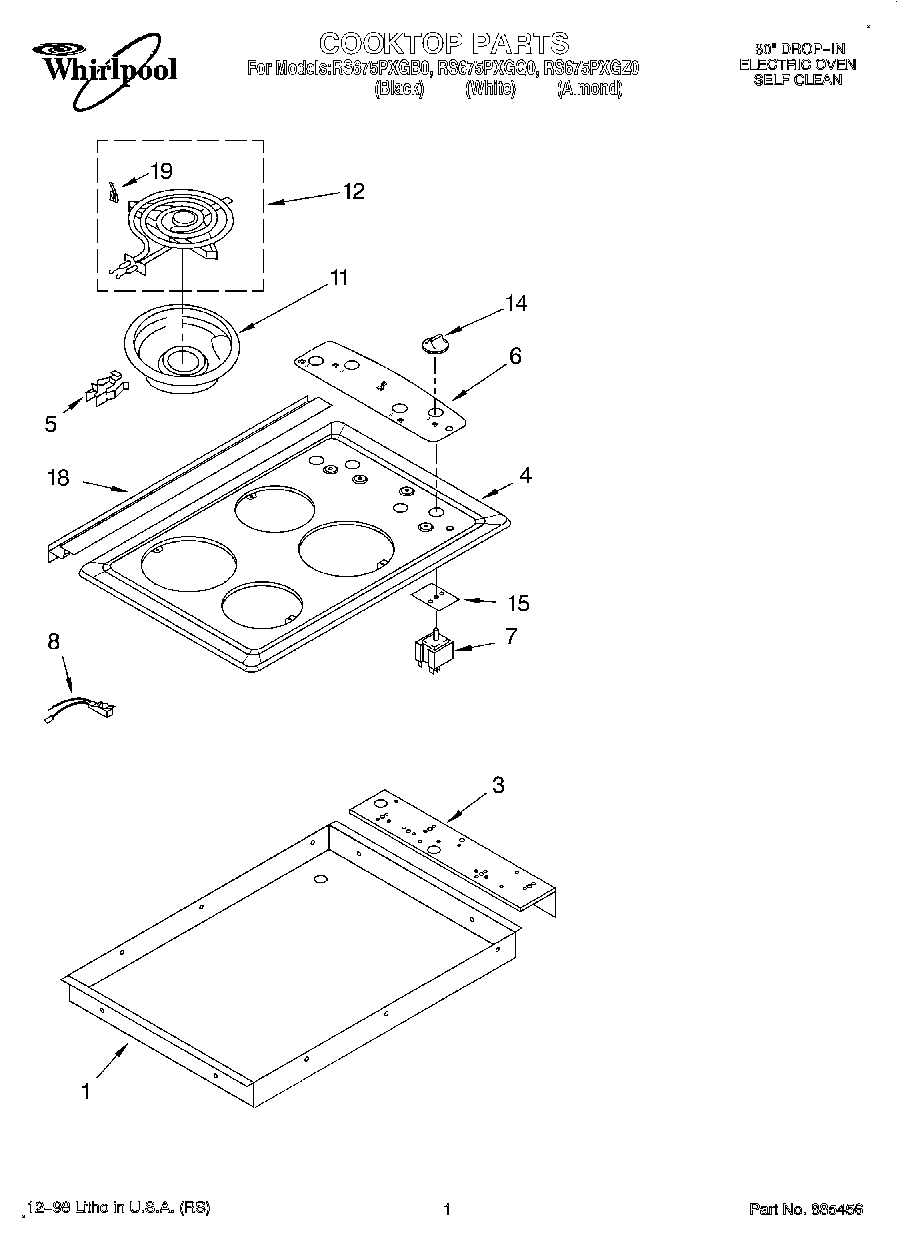

RS675PXGQ0 01 – COOKTOP

Products

Position	Product
1	Burner Box
3	Bracket, Mounting
3	WP12990527 Whirlpool Microwave Screw
4	Cooktop (Black)
4	Cooktop (White)
4	Cooktop (Almond)
5	WP9760411 Whirlpool Clip
6	Panel, Control (Black)
6	Panel, Control (White)
6	Panel, Control (Almond)
7	WP3191471 Whirlpool Infinite Switch
7	WP3191473 Whirlpool Infinite Switch
7	3400855 Whirlpool Oven Screw
8	WP4456181 Whirlpool Indicator Light
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP660532 Whirlpool Oven Surface Element
12	WPW10259865 Whirlpool Range 8" Surface Element
14	WP3196231 Whirlpool Knob
14	Knob, Infinite (4) (Almond)
14	WP3196232 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
18	Trim, Extension (Black)
18	Trim, Extension (White)
18	Trim, Extension (Almond)
19	WP3195917 Whirlpool Clip Assembly
