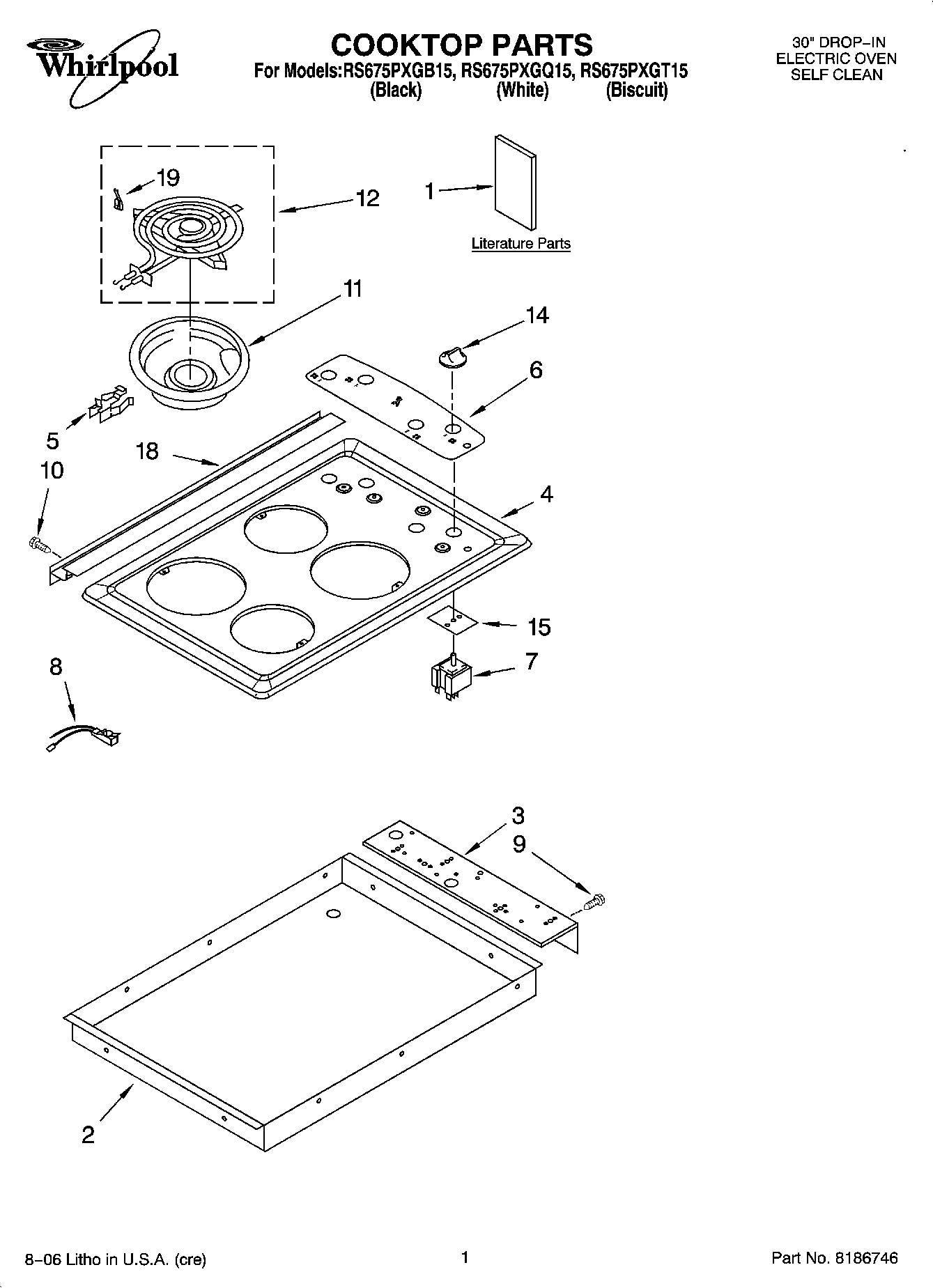

RS675PXGQ15 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Tech Sheet
2Burner Box
3Bracket, Mounting
4Cooktop (Black)
4Cooktop (White)
4Cooktop (Biscuit)
5Clip, Mtg. (4)
6Panel, Control (Biscuit)
6Panel, Control (White)
6Panel, Control (Black)
7WP3191471 Whirlpool Infinite Switch
7WP3191473 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
9WP3177991 Whirlpool Screw
10WP12990527 Whirlpool Microwave Screw
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660532 Whirlpool Oven Surface Element
12WPW10259865 Whirlpool Range 8" Surface Element
14WP3196231 Whirlpool Knob
14WP3196232 Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
18Trim, Extension (White)
18Trim, Extension (Black)
18Trim, Extension (Biscuit)
19WP3195917 Whirlpool Clip Assembly
