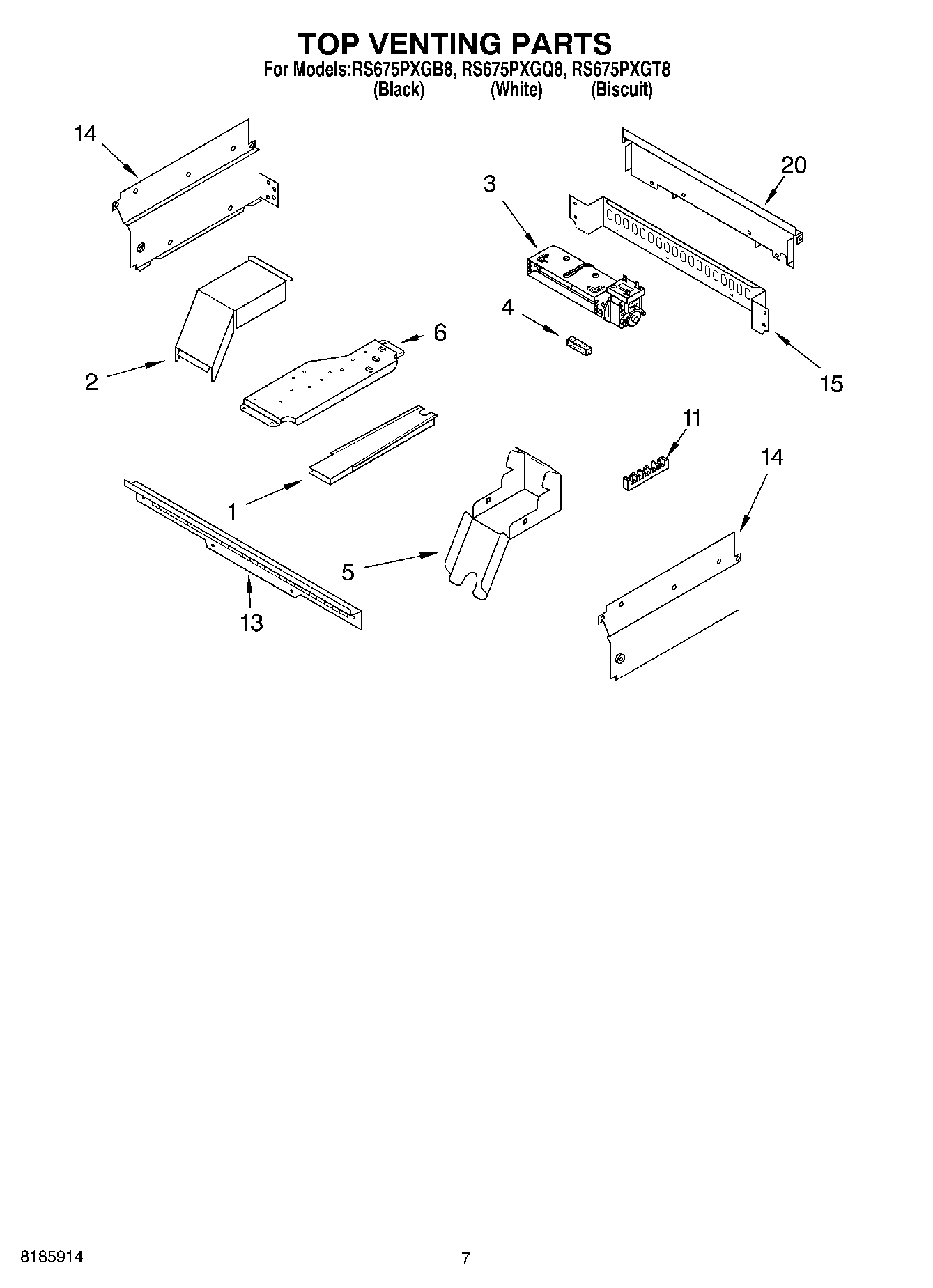

RS675PXGQ8 06 – TOP VENTING

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	Blower
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	4451761 Whirlpool Oven Support Bracket
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	WP4450038 Whirlpool Screw
13	Vent, Control Panel
14	3191833 Whirlpool Oven Side Complete
14	Side, Control Compt. (Right)
15	Back, Control
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 200 c Brown)
20	1
20	Harness, Wire (Light)
20	WPL 591014
20	3184020 Whirlpool Oven Wire
20	Conduit
20	Harness, Wire (Infinite Switch)
20	Cover, Rear
20	Harness, Wire (Main)
20	261900 Whirlpool Microwave Spray
20	Harness, Wire (EDC)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	4450800 Whirlpool Oven Screw
20	4448664 Whirlpool Oven Mounting Bracket
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP3400015 Whirlpool Screw
20	WP112432 Whirlpool Nut Assembly
20	WP4449809 Whirlpool Screw
20	72017 Whirlpool Appliance Touch-Up Paint White
20	285006 Whirlpool Spray
20	72032 Whirlpool Touch Up Paint Black
20	WP482338 Whirlpool Refrigerator Adhesive
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WP261869 Whirlpool Microwave Paint
20	242831 Whirlpool Oven Wire
20	Spacer, Harness
20	WP4448950 Whirlpool Screw
20	814381 Whirlpool Pin
20	350930 Whirlpool White Spray Paint
