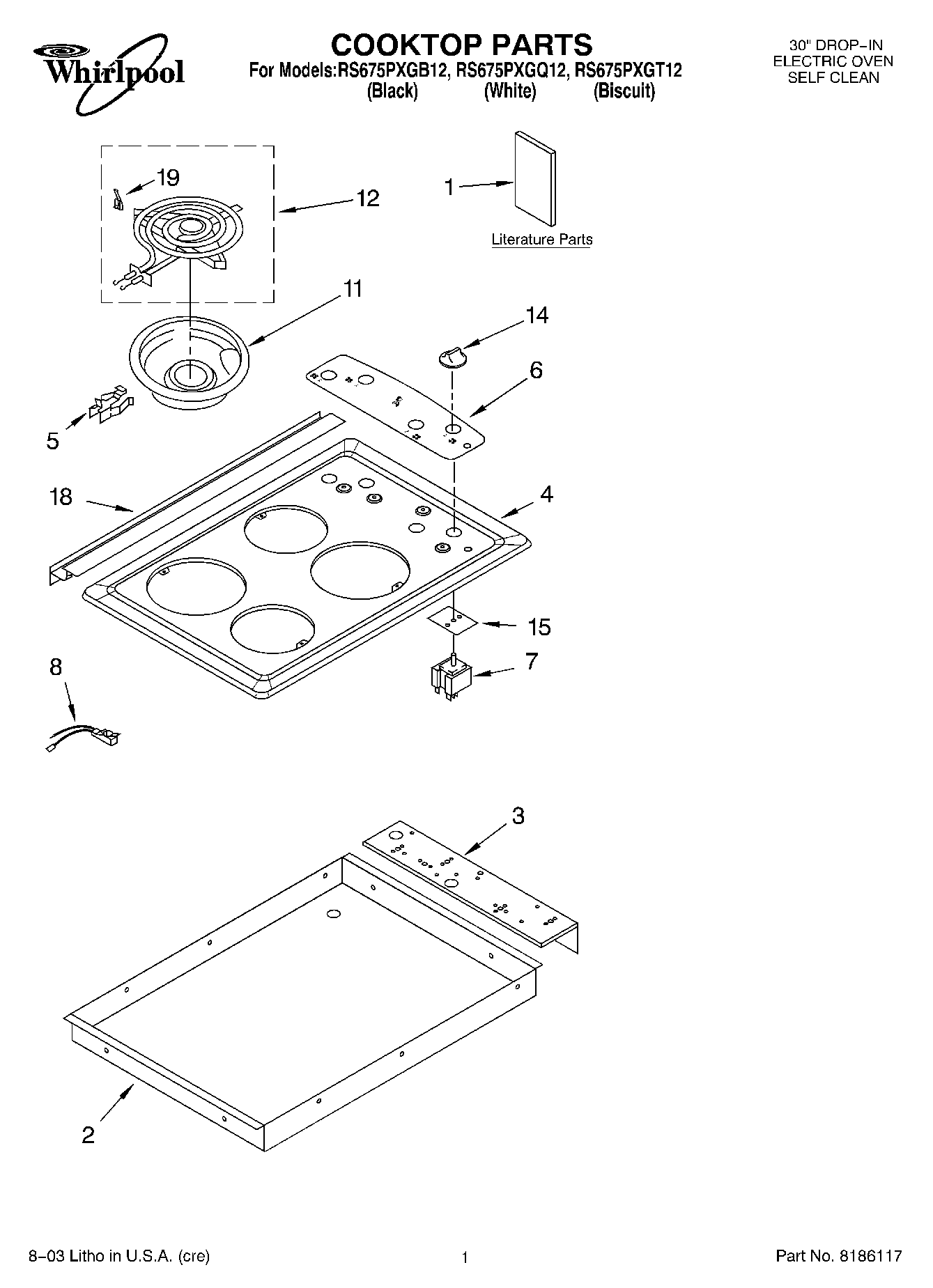

RS675PXGT12 01 – COOKTOP PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Literature Parts (Tech Sheet)
1Use & Care Guide
1Installation Instructions
1Safer Cooking Tips
2Burner Box
3WP3177991 Whirlpool Screw
3Bracket, Mounting
4Cooktop (Biscuit)
4Cooktop (White)
4Cooktop (Black)
5WP12990527 Whirlpool Microwave Screw
5Clip, Mtg. (4)
6Panel, Control (Biscuit)
6Panel, Control (White)
6Panel, Control (Black)
7WP3191471 Whirlpool Infinite Switch
7WP3191473 Whirlpool Infinite Switch
73400855 Whirlpool Oven Screw
8WP4456181 Whirlpool Indicator Light
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WP660532 Whirlpool Oven Surface Element
12WPW10259865 Whirlpool Range 8" Surface Element
14WP3196231 Whirlpool Knob
14WP3196232 Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
18Trim, Extension (Biscuit)
18Trim, Extension (Black)
18Trim, Extension (White)
19WP3195917 Whirlpool Clip Assembly
