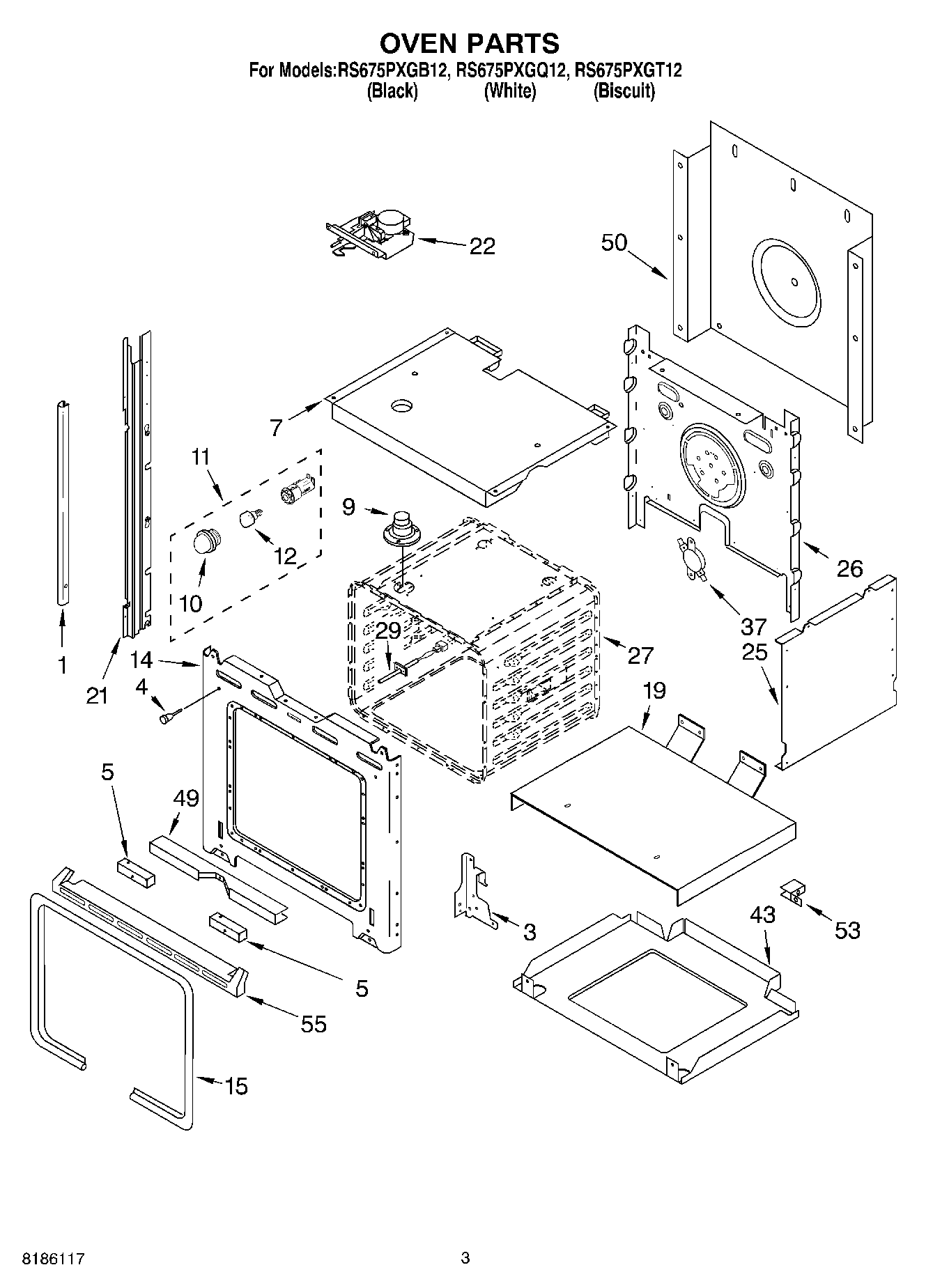

RS675PXGT12 03 – OVEN PARTSadmin2025-04-26T12:49:42+00:00RS675PXGT12 03 – OVEN PARTS
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 1 | Trim, Side (LH White Screw) |
| 1 | Trim, Side (RH Biscuit) |
| 1 | Trim, Side (LH Biscuit) |
| 1 | Trim, Side (LH Black) |
| 1 | Trim, Side (White, Right) |
| 1 | Trim, Side (RH Black) |
| 1 | WP8281236 Whirlpool Screw |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | Spacer, Foam |
| 7 | Top, Chassis |
| 9 | W10861715 Whirlpool Vent Tube |
| 9 | SCREW |
| 10 | Lens, Light |
| 11 | WPW10734065 Whirlpool Light |
| 12 | WP4173175 Whirlpool Light Bulb |
| 14 | Screw |
| 14 | WP4450118 Whirlpool Nut |
| 14 | Frame, Front |
| 15 | W11675844 Whirlpool Oven Gasket |
| 19 | Support, Insulation |
| 21 | 814372 Whirlpool Oven Rail Mount |
| 21 | 814371 Whirlpool Oven Rail Mount |
| 21 | WP4448444 Whirlpool Grommet |
| 22 | WP9760889 Whirlpool Door Latch |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not serviceable) |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 37 | WP9759243 Whirlpool Thermostat |
| 43 | WPL 4455530 |
| 49 | WP4449154 Whirlpool Screw |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | WP4451747 Whirlpool Rear Cover |
| 53 | WP4449809 Whirlpool Screw |
| 53 | WPL 4449845 |
| 55 | WPL 4452415 |
| 55 | WPL 4448477 |
| 55 | W11684730 Whirlpool Insulation |
| 55 | WPL 4450365 |
| 55 | WPL 4448478 |
| 55 | FOLLOWING PARTS NOT ILLUSTRATED INSULATION |
