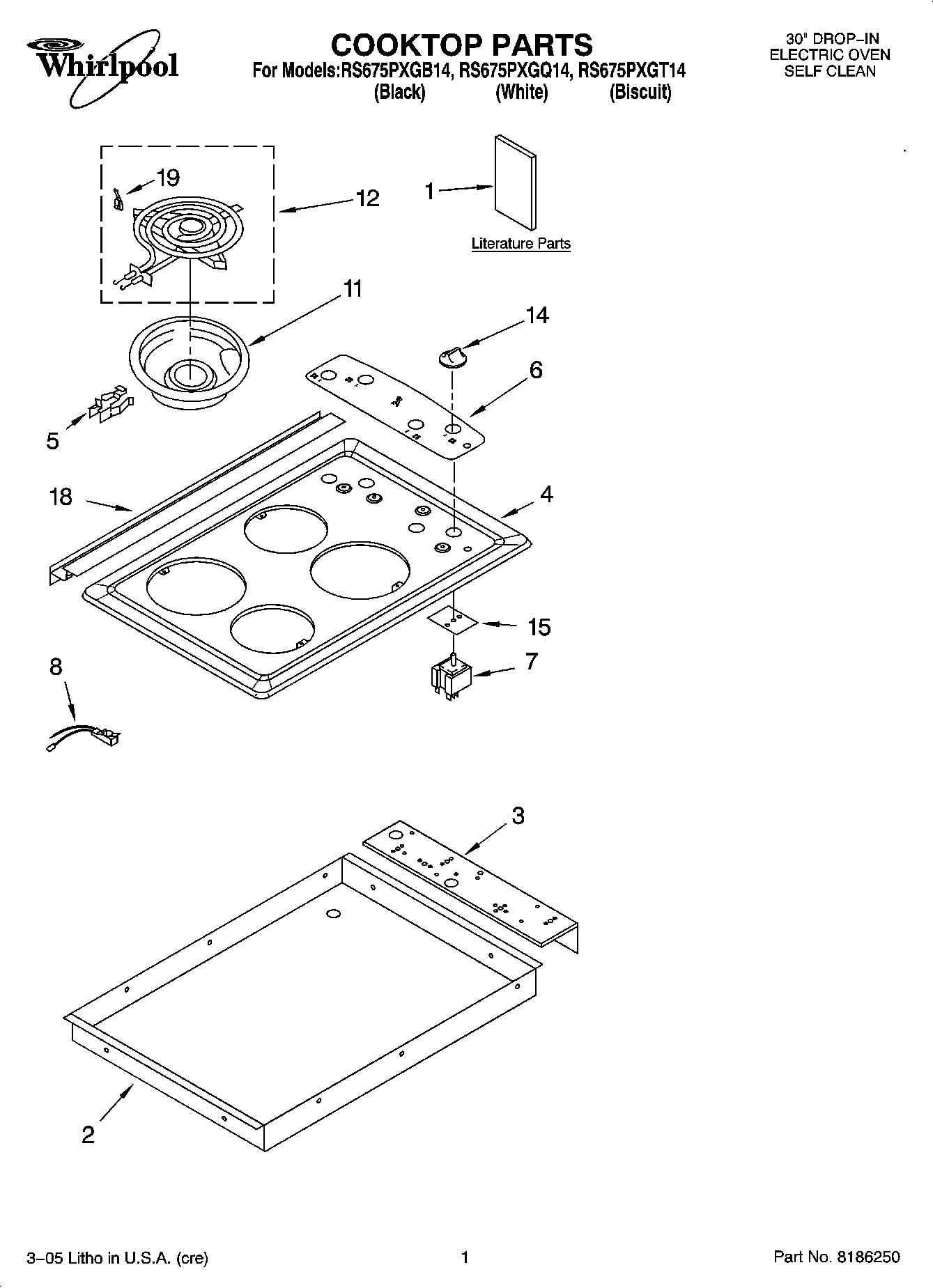

RS675PXGT14 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
1	Installation Instructions
1	Safe Cooking Tips
2	Burner Box
3	Bracket, Mounting
3	WP3177991 Whirlpool Screw
4	Cooktop (White)
4	Cooktop (Biscuit)
4	Cooktop (Black)
5	WP12990527 Whirlpool Microwave Screw
5	Clip, Mtg. (4)
6	Panel, Control (Biscuit)
6	Panel, Control (White)
6	Panel, Control (Black)
7	WP3191473 Whirlpool Infinite Switch
7	WP3191471 Whirlpool Infinite Switch
7	3400855 Whirlpool Oven Screw
8	WP4456181 Whirlpool Indicator Light
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WPW10259865 Whirlpool Range 8" Surface Element
12	WP660532 Whirlpool Oven Surface Element
14	WP3196231 Whirlpool Knob
14	WP3196232 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
18	Trim, Extension (White)
18	Trim, Extension (Black)
18	Trim, Extension (Biscuit)
19	WP3195917 Whirlpool Clip Assembly
