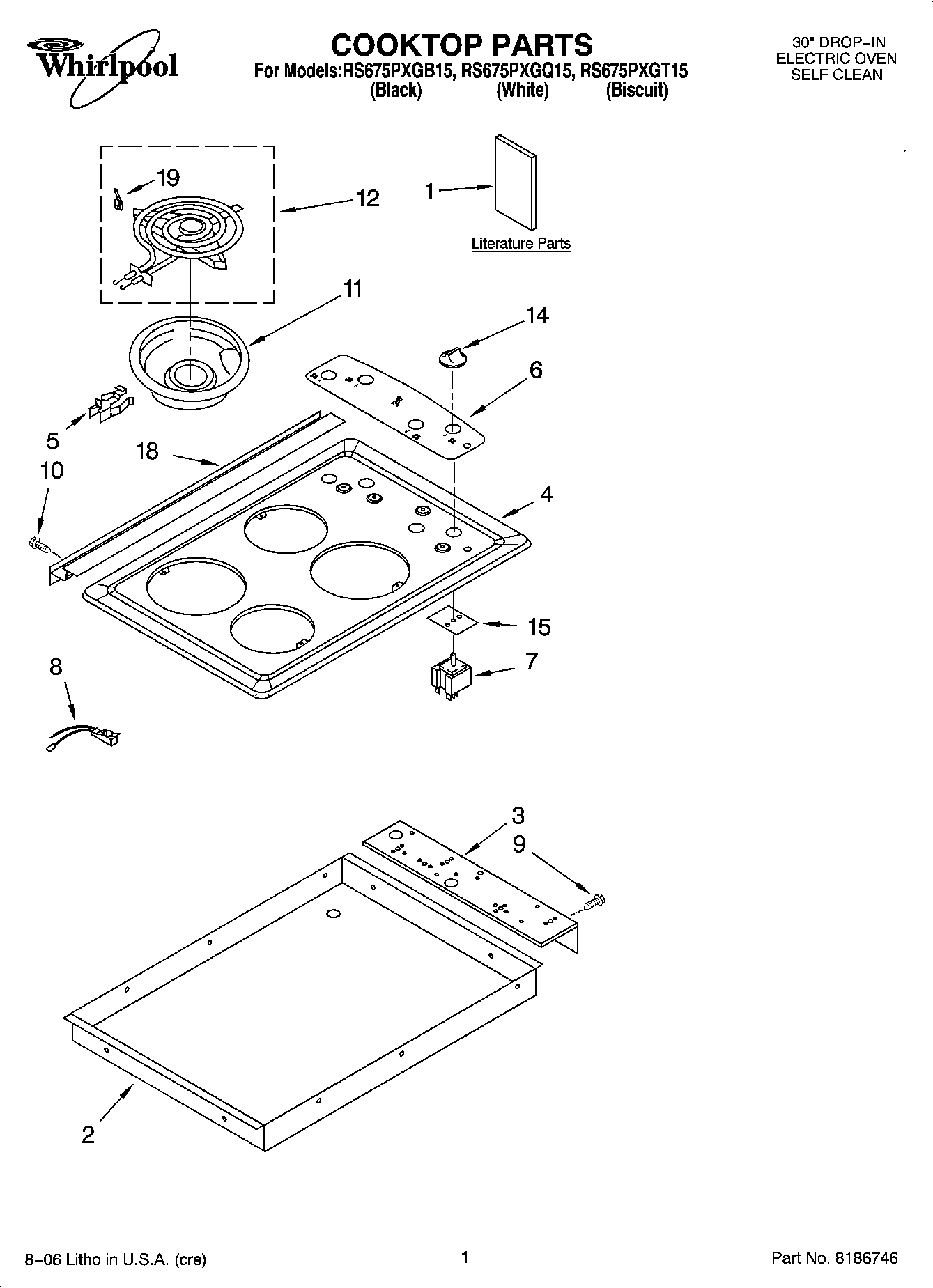

RS675PXGT15 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
1	Tech Sheet
2	Burner Box
3	Bracket, Mounting
4	Cooktop (Black)
4	Cooktop (White)
4	Cooktop (Biscuit)
5	Clip, Mtg. (4)
6	Panel, Control (Biscuit)
6	Panel, Control (White)
6	Panel, Control (Black)
7	WP3191471 Whirlpool Infinite Switch
7	WP3191473 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	WP3177991 Whirlpool Screw
10	WP12990527 Whirlpool Microwave Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP660532 Whirlpool Oven Surface Element
12	WPW10259865 Whirlpool Range 8" Surface Element
14	WP3196231 Whirlpool Knob
14	WP3196232 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
18	Trim, Extension (White)
18	Trim, Extension (Black)
18	Trim, Extension (Biscuit)
19	WP3195917 Whirlpool Clip Assembly
