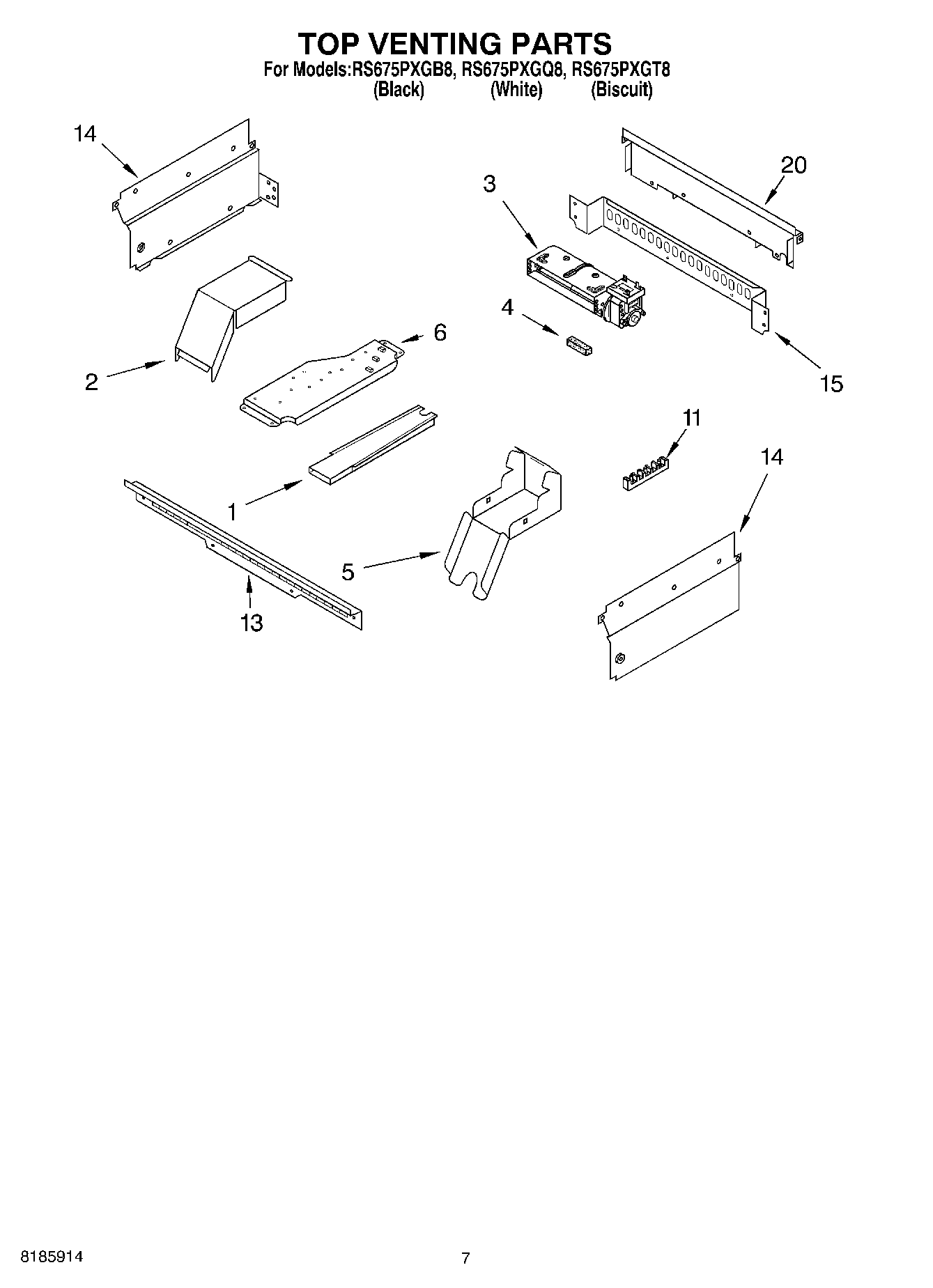

RS675PXGT8 06 – TOP VENTINGadmin2025-04-26T12:50:56+00:00RS675PXGT8 06 – TOP VENTING
Products
| Position | Product |
|---|
| 1 | Screw |
| 1 | 4451759 Whirlpool Oven Exhaust Vent |
| 2 | 4455178 Whirlpool Oven Top Elbow |
| 3 | WP4455352 Whirlpool Mounting Bracket |
| 3 | Blower |
| 4 | W10491987 Whirlpool Foam Seal |
| 5 | 4455177 Whirlpool Oven Bottom Elbow |
| 6 | 4451761 Whirlpool Oven Support Bracket |
| 11 | Screw |
| 11 | WP8203546 Whirlpool Terminal Block |
| 13 | WP4450038 Whirlpool Screw |
| 13 | Vent, Control Panel |
| 14 | 3191833 Whirlpool Oven Side Complete |
| 14 | Side, Control Compt. (Right) |
| 15 | Back, Control |
| 20 | 18 Ga. 80~c Rating (Red) |
| 20 | Wire (14 Ga. 200 c Brown) |
| 20 | 1 |
| 20 | Harness, Wire (Light) |
| 20 | WPL 591014 |
| 20 | 3184020 Whirlpool Oven Wire |
| 20 | Conduit |
| 20 | Harness, Wire (Infinite Switch) |
| 20 | Cover, Rear |
| 20 | Harness, Wire (Main) |
| 20 | 261900 Whirlpool Microwave Spray |
| 20 | Harness, Wire (EDC) |
| 20 | Wire (12 Ga. 150 c Black) |
| 20 | Wire (14 Ga. 150 c Yellow) |
| 20 | 4450800 Whirlpool Oven Screw |
| 20 | 4448664 Whirlpool Oven Mounting Bracket |
| 20 | Wire, 25`` Roll (White 14 GA.) |
| 20 | Wire, 25` Roll (Red 14 Ga.) |
| 20 | Wire, 25` Roll (Black 14 Ga.) |
| 20 | WP3400015 Whirlpool Screw |
| 20 | WP112432 Whirlpool Nut Assembly |
| 20 | WP4449809 Whirlpool Screw |
| 20 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 20 | 285006 Whirlpool Spray |
| 20 | 72032 Whirlpool Touch Up Paint Black |
| 20 | WP482338 Whirlpool Refrigerator Adhesive |
| 20 | Wire (14 Ga. 150 c Orange) |
| 20 | Wire (14 Ga. 150 c Green) |
| 20 | Wire (14 Ga. 150 c Brown) |
| 20 | Wire (14 Ga. 150 c Blue) |
| 20 | WP261869 Whirlpool Microwave Paint |
| 20 | 242831 Whirlpool Oven Wire |
| 20 | Spacer, Harness |
| 20 | WP4448950 Whirlpool Screw |
| 20 | 814381 Whirlpool Pin |
| 20 | 350930 Whirlpool White Spray Paint |
