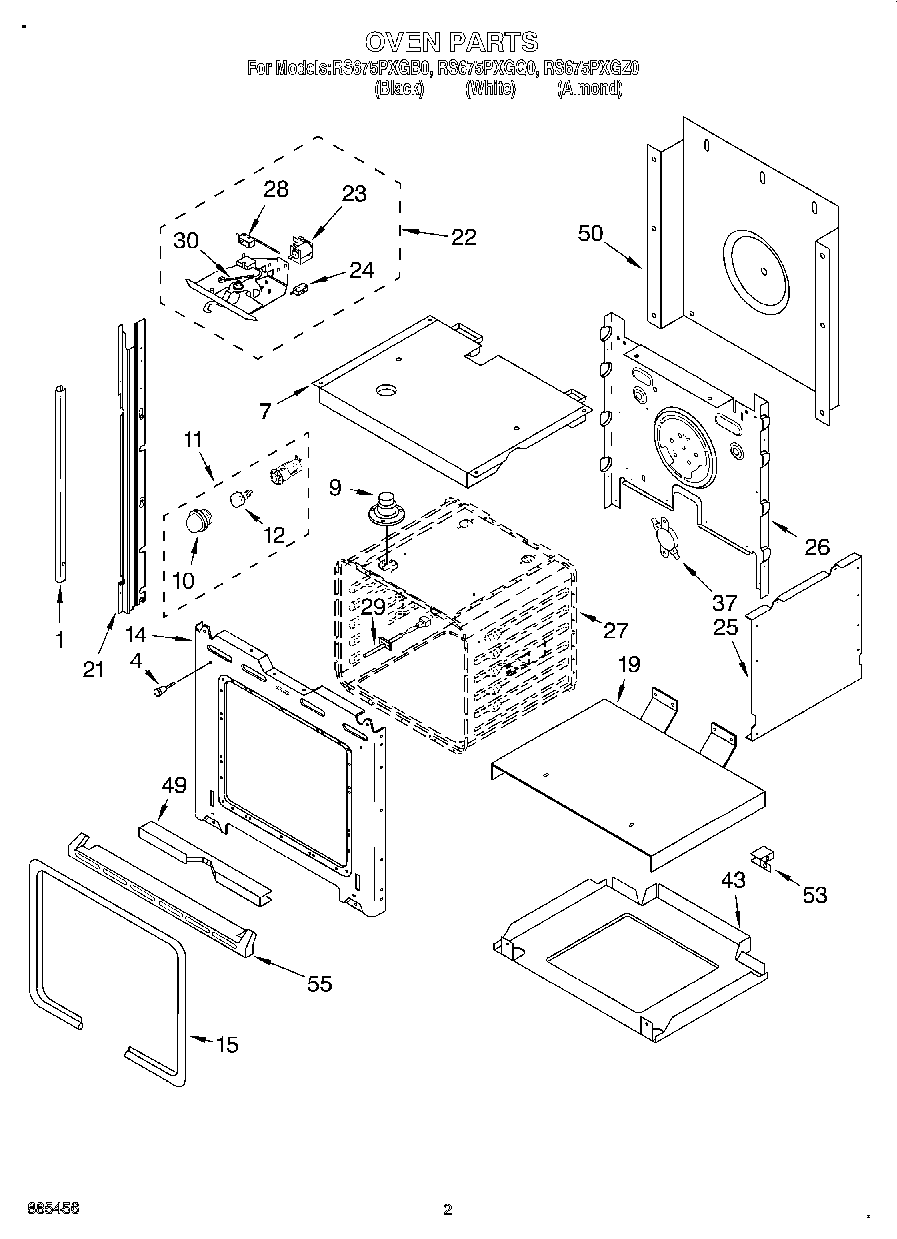

RS675PXGZ0 02 – OVEN

RS675PXGZ0 02 – OVEN

Written by

in

RS675PXGZ0 02 – OVEN

Products

PositionProduct
1Trim, Side (LH White Screw)
1Trim, Side (Right Hand) (Almond Model)
1WP8281236 Whirlpool Screw
1Trim, Side (Left Hand) (Almond)
1Trim, Side (RH Black)
1Trim, Side (LH Black)
1Trim, Side (White, Right)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Micro Switch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29Sensor
30Spring, Latch
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55WPL 4448862
55WPL 4448478
55WPL 4448477
55W11684730 Whirlpool Insulation
55WPL 4450365
